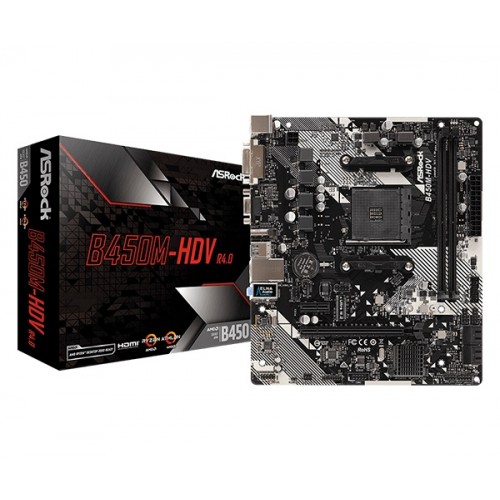

ASRock B450M-HDV R4.0 AMD Motherboard

Basic Features

Model: ASRock B450M-HDV R4.0
Memory 32 GB
AMD Promontory B450
Windows 10; 64-bit
1 PCIe 3.0 x16, 1 PCIe 2.0 x1

৳ 8,700.00

Out of stock

SKU: 9778-1 Categories: ASRock (Ryzen), Motherboard Tags: ASRock, Motherboard.ASRock (AMD)

Description

Specification

Basic Information
Supported CPU	– AMD AM4 Socket – Digi Power design – Supports CPU up to 105W
Chipset	– AMD Promontory B450
BIOS	– 128Mb AMI UEFI Legal BIOS with GUI support – SMBIOS 2.3 support
Form Factor	– Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm
Expansion Slots
PCI	AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) – 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* AMD Ryzen series CPUs (Raven Ridge) – 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* AMD Athlon series CPUs – 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)* – 1 x PCI Express 2.0 x1 Slot
M.2 Socket	– 1 x Screw for M.2 Socket – 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)*
Memory
Type	– Dual Channel DDR4 Memory Technology
Slots	– 2 x DDR4 DIMM Slots – 15? Gold Contact in DIMM Slots
Supported Memory	For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs.
Graphics
Max Shared Memory	– Max Shared memory supports up to 16GB – The Max shared memory 16GB requires 32GB system memory installed.
Connector & Ports
HDMI	– 1 x HDMI Port
D-Sub (s)	– Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz – 1 x D-Sub Port
DVI-D (s)	– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz – 1 x DVI-D Port
USB (s)	– 6 USB 3.1 Gen1 (2 Front, 4 Rear) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) – 2 x USB 2.0 Ports (Supports ESD Protection) – 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
LAN Port (s)	– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Supported Storage	– 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug – 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)- Supports NVMe SSD as boot disks – Supports ASRock U.2 Kit
Audio	– 7.1 CH HD Audio (Realtek ALC887 Audio Codec) – Supports Surge Protection – ELNA Audio Caps
Internal I/O Ports	– 1 x PS/2 Mouse/Keyboard Port – 1 x D-Sub Port – 1 x DVI-D Port – 1 x HDMI Port – 2 x USB 2.0 Ports (Supports ESD Protection) – 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone – 1 x COM Port Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)** – 1 x 24 pin ATX Power Connector – 1 x 4 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
TPM (Trusted Platform Module )	1 x TPM Header
Warranty Information
Manufacturing Warranty	03 Years warranty
