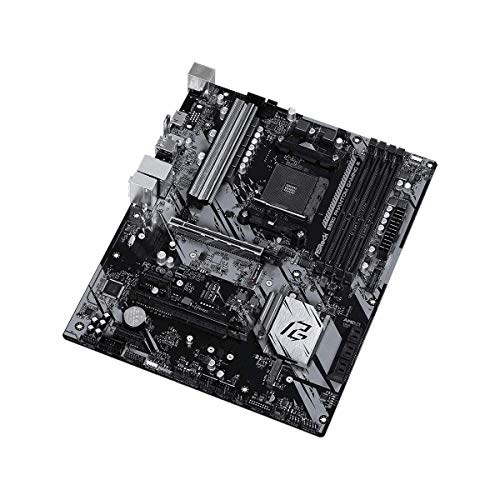

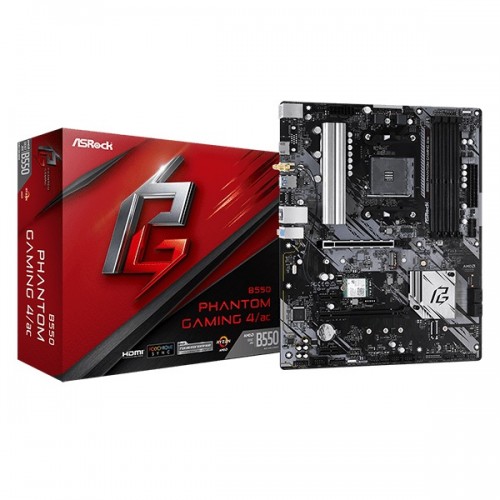

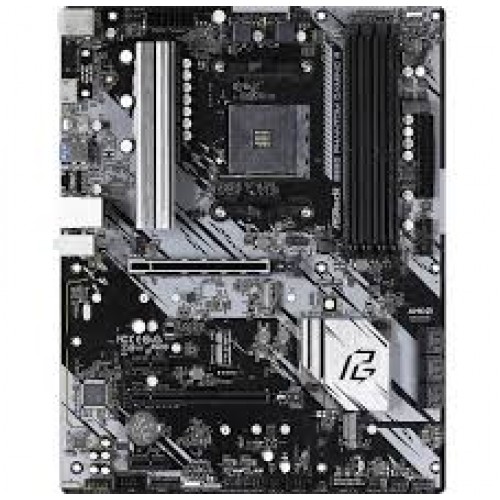

ASRock B550 Phantom Gaming 4 AMD Motherboard
Basic Features
- Model: ASRock B550 Phantom
- Supports 3rd Gen AMD AM4 Ryzen/ Future AMD Ryzen Processors
- Supports DDR4 4733+ (OC)
- 8 Power Phase Design, Digi Power
- 6 SATA3, 1 Hyper M.2, 1 M.2
৳ 13,100.00
Out of stock
Description
Specification
Basic Information | ||
Supported CPU | – Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors* – Digi Power design – 8 Power Phase design |
|
Chipset | AMD B550 | |
BIOS | – 256Mb AMI UEFI Legal BIOS with GUI support – Supports “Plug and Play” – ACPI 5.1 compliance wake up events – Supports jumperfree – SMBIOS 2.3 support – CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment |
|
Form Factor | – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm – Solid Capacitor design – 2oz Copper PCB |
|
Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) – Premium Blu-ray Audio support – Supports Surge Protection – PCB Isolate Shielding – Individual PCB Layers for R/L Audio Channel – Nahimic Audio |
|
Expansion Slots | ||
PCI | – 2 x PCI Express 3.0 x1 Slots | |
M.2 Socket | – 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ac module | |
Memory | ||
Type | DDR4 | |
Slots | AMD Ryzen series CPUs (Matisse) – 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode) AMD Ryzen series APUs – 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode) – Supports AMD Quad CrossFireX and CrossFireX |
|
Supported Memory | – Dual Channel DDR4 Memory Technology – 4 x DDR4 DIMM Slots – AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory – Supports Extreme Memory Profile (XMP) memory modules – 15? Gold Contact in DIMM Slots |
|
Maximum Memory | 128GB | |
Graphics | ||
Graphics | – Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU – DirectX 12, Pixel Shader 5.0 – Shared memory default 2GB. Max Shared memory supports up to 16GB. – Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) – Supports HDR (High Dynamic Range) with HDMI 2.1 – Supports HDCP 2.3 with HDMI 2.1 Port – Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port – Supports Microsoft PlayReady |
|
Connector & Ports | ||
HDMI | 1 x HDMI Port | |
USB (s) | – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) – 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) – 2 x USB 2.0 Ports (Supports ESD Protection) |
|
LAN Port (s) | – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
Supported Storage | 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug | |
Internal I/O Ports | 2 x Antenna Ports – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 6 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone – 1 x COM Port Header – 1 x Power LED and Speaker Header – 2 x RGB LED Headers* – 2 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x 4 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|
TPM (Trusted Platform Module ) | – 1 x SPI TPM Header | |
Warranty Information | ||
Manufacturing Warranty | 03 Years Warranty | |
Others | ||
Special Features | Cooling- – XXL Aluminum Alloy Heatsink ASRock Super Alloy – XXL Aluminum Alloy Heatsink – Premium 50A Power Choke – Sapphire Black PCB – High Density Glass Fabric PCB – 2oz Copper PCB ASRock Steel Slot Gen4 ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
