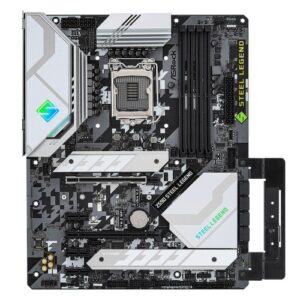

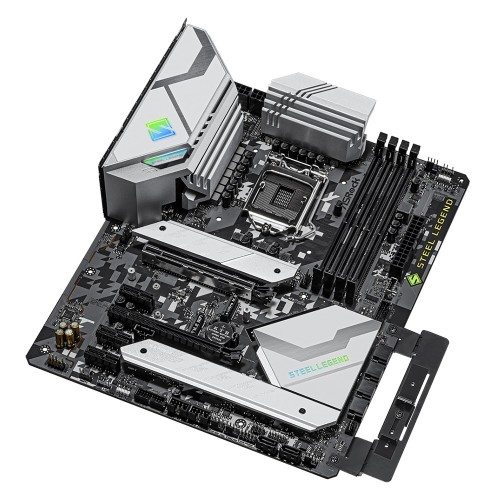

ASRock Z590 Steel Legend 10th and 11th Gen ATX Motherboard


Basic Features

  • Model: Z590 Steel Legend
  • Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors
  • Supports DDR4 4800MHz (OC)
  • 14 Phase Dr.MOS Power Design
  • 7.1 CH HD Audio, Nahimic Audio

৳ 23,000.00

SKU: 24752 Category: Tags: , ,
Description

Specification

Basic Information
Supported CPU – Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)
– Digi Power design
– 14 Power Phase design
– Supports Intel Turbo Boost Max 3.0 Technology
– Supports Intel K-Series unlocked CPUs
Chipset Intel Z590
BIOS – 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VPPM, VCCIN AUX, VCCST Voltage Multi-adjustment
Form Factor – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 2oz Copper PCB
Expansion Slots
PCI 11th Gen Intel Core Processors
– 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))
10th Gen Intel Core Processors
– 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))
– 3 x PCI Express 3.0 x1 Slots
– Supports AMD Quad CrossFireX and CrossFireX
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
– 15? Gold Contact in VGA PCIe Slot (PCIE1)
M.2 Socket – 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only)
– 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
– 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Memory
Type Dual Channel DDR4 Memory Technology
Slots 4 x DDR4 DIMM Slots
Supported Memory – 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)
– 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Supports Intel Extreme Memory Profile (XMP) 2.0
– 15? Gold Contact in DIMM Slots
Maximum Memory Max. capacity of system memory: 128GB
Graphics
Graphics – 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
– Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
– Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc
– Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
– Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
– Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports

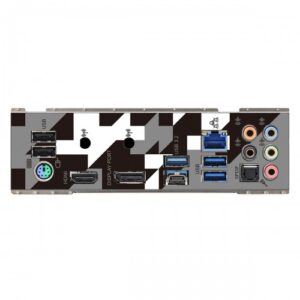

Connector & Ports
HDMI 1 x HDMI Port
Display Port (s) 1 x DisplayPort 1.4
USB (s) – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)

– 2 x USB 2.0 Ports (Supports ESD Protection)
LAN Port (s) – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Supported Storage – 6 x SATA3 6.0 Gb/s Connectors
– 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel® Core™ processors only)
– 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
– 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection
– Gold Audio Jacks
– 15? Gold Audio Connector
– Nahimic Audio
Internal I/O Ports – 1 x Power LED and Speaker Header
– 2 x RGB LED Headers
– 2 x Addressable LED Headers
– 1 x CPU Fan Connector (4-pin)
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
– 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector (15? Gold Audio Connector)
– 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
TPM (Trusted Platform Module ) – 1 x SPI TPM Header
Warranty Information
Manufacturing Warranty 03 years warranty
