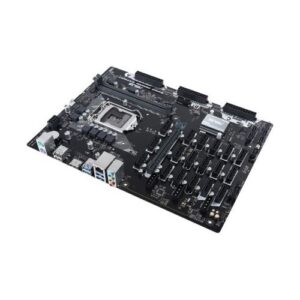

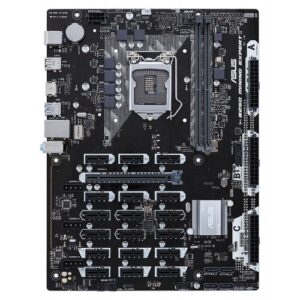

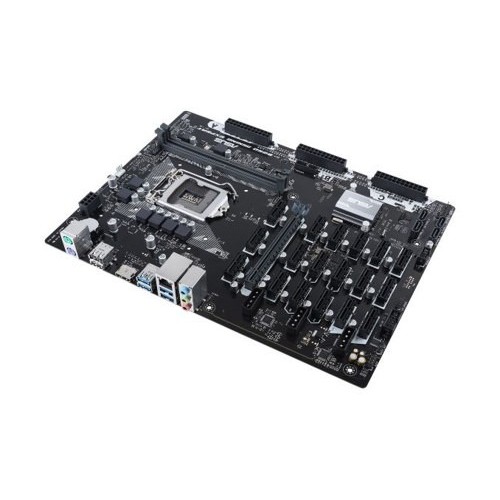

Asus B250 Mining Expert Intel LGA-1151 ATX DDR4 Motherboard



Basic Features

  • Model: Asus B250 Mining Expert
  • ATX Form Factor
  • Intel B250 Chipset
  • Maximum shared memory of 1024 MB

14,000.00

Out of stock

Description

Specification

Asus B250 Mining Expert Intel LGA-1151 ATX DDR4 Motherboard

Basic Information
Supported CPU Intel Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset Intel B250
BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS3.0, ACPI 6.0, ASUS EZ Flash 3, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor ATX Form Factor
12 inch x 9.1 inch ( 30.5 cm x 23.1 cm )
Expansion Slots
PCI 1 x PCIe x16 (x16 mode)
18 x PCIe x1
Memory
Type DDR4
Supported Memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory 32GB
Graphics
Graphics VGA output support : HDMI port
-Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Max Shared Memory Maximum shared memory of 1024 MB
Connector & Ports
HDMI Yes
Display Port (s) Yes
USB (s) Intel B250 Chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 2 at mid-board)
Intel B250 Chipset :
4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board)
LAN Port (s) Intel I219V, 1 x Gigabit LAN Controller(s)
Supported Storage 4 x SATA 6Gb/s port(s),
Audio Realtek ALC887 8-Channel High Definition Audio CODEC
Internal I/O Ports 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
3 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
3 x 4-pin AUXPWR Header
TPM (Trusted Platform Module ) – 1 x SPI TPM Header
Warranty Information
Manufacturing Warranty No

Description

Asus B250 Mining Expert Intel LGA-1151 ATX DDR4 Motherboard

  • World’s first 19-slot motherboard for multi-GPU mining
  • Exclusive triple-ATX12V design and 19 decoupling capacitors for stable power delivery
  • ASUS PCIe Slot State Detection indicates the status of each GPU connection for easy management and debugging
  • Unique Mining Mode for hassle-free setup of your mining rig — no BIOS tweaks required
  • Intel LAN and LANGuard for the best network performance

What is the price of Asus B250 Mining Expert Intel LGA-1151 ATX DDR4 Motherboard in Bangladesh?

The latest price of Asus B250 Mining Expert Intel LGA-1151 ATX DDR4 Motherboard in Bangladesh is ৳14000.00. You can buy the Asus B250 Mining Expert Intel LGA-1151 ATX DDR4 Motherboard at best price from our website or visit our showroom.
