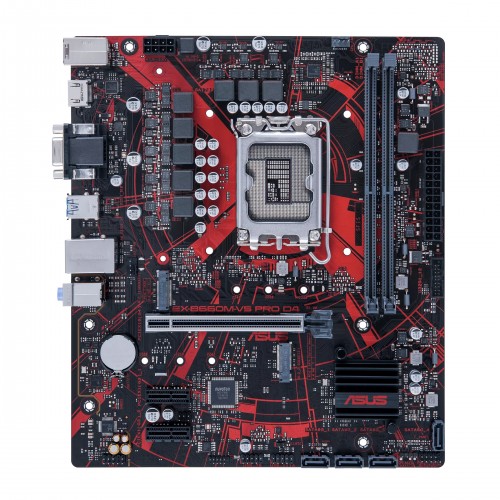

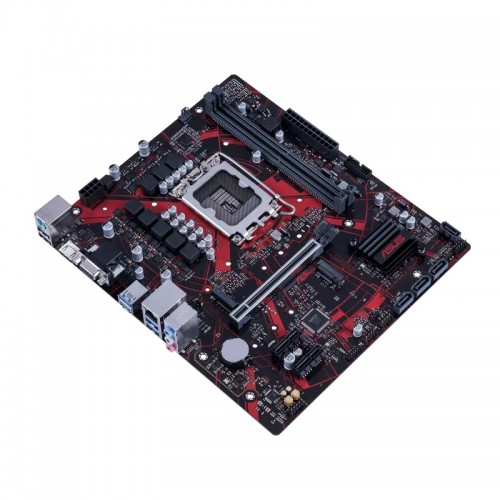

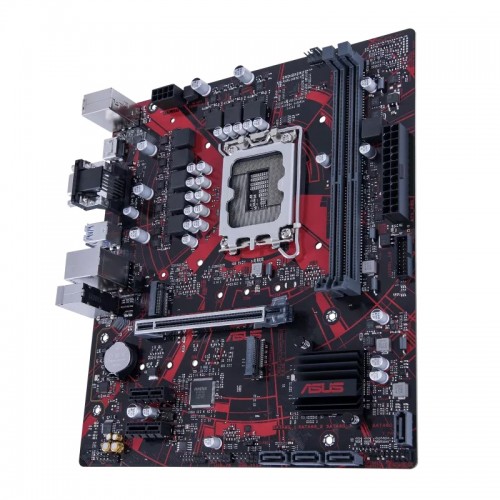

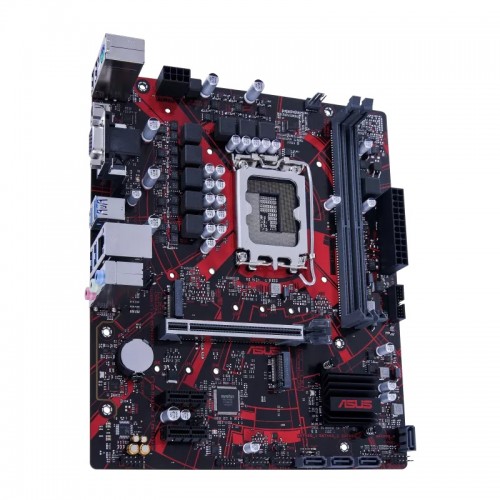

ASUS EX-B660M-V5 PRO D4 12th Gen M-ATX Motherboard

Model: EX-B660M-V5 PRO D4
DDR4 5333 (OC), two M.2 slots, PCIe 4.0
Intel Socket LGA1700 for 12th Gen Core, Pentium Gold & Celeron Processors
HDMI, D-Sub, USB 3.2 Gen 1

Original price was: ৳ 14,000.00.Current price is: ৳ 13,800.00.

Out of stock

SKU: 35699 Categories: Asus (Intel), Component, Motherboard Tags: Asus, ASUS (Intel), Asus Motherboard

Description

Specification

Basic Information
Supported CPU	Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B660 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 9.6 inch x 8.3 inch(24.4cm x 21.1cm)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playbackAudio Features – Premium audio capacitors – Audio Shielding – Dedicated audio PCB layers
Expansion Slots
PCI	Intel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 2 x PCIe 3.0 x1 slots
M.2 Socket	2 x M.2 slots
Memory
Type	DDR4
Slots	2 x DIMM
Supported Memory	5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory	64GB
Graphics
Graphics	1 x D-Sub port 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI	1 x HDMI port
D-Sub (s)	1 x D-Sub port

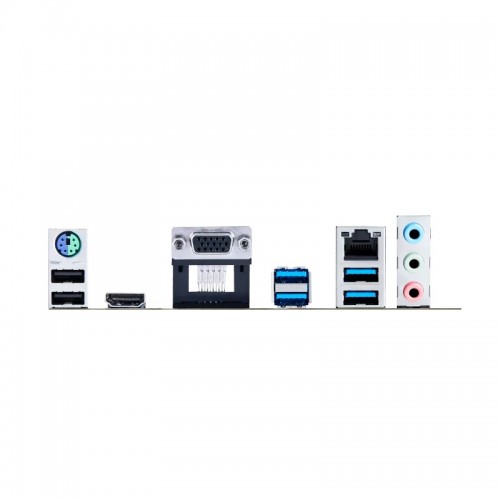

USB (s)	Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A)Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)	1 x Realtek 2.5Gb Ethernet
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Audio	3 x Audio jacks
Internal I/O Ports	Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan headerPower related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connectorStorage related 2x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header
Warranty Information
Manufacturing Warranty	3 years
Others
Special Features	ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/OASUS Q-Design – Q-DIMM – Q-SlotASUS EZ DIY – ProCoolNon-stop Action – Lightning BootNon-stop Challenger – ASUS iCafe labs certifiedNon-stop Durability – Luminous anti-moisture coating – USBGuard
