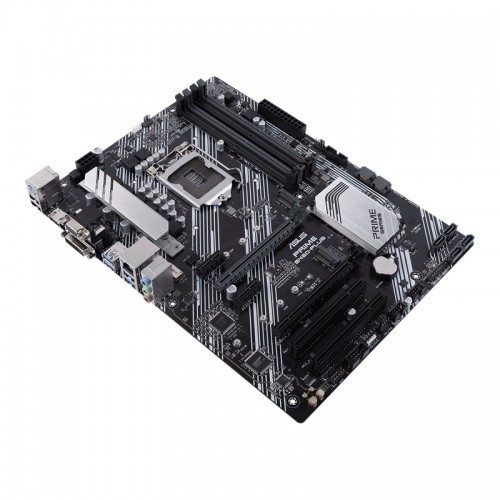

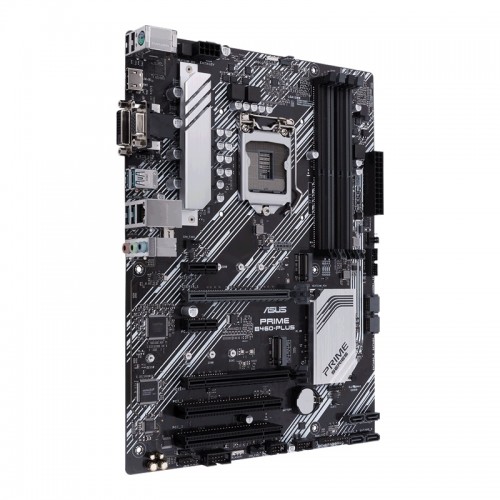

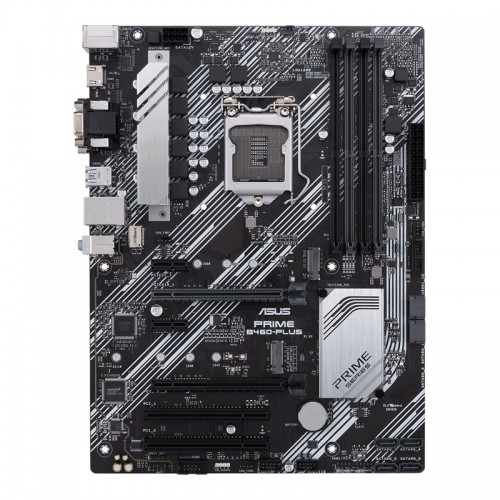

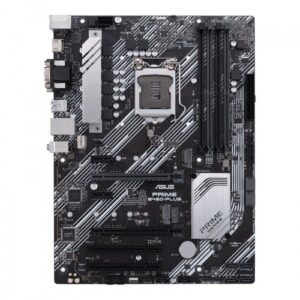

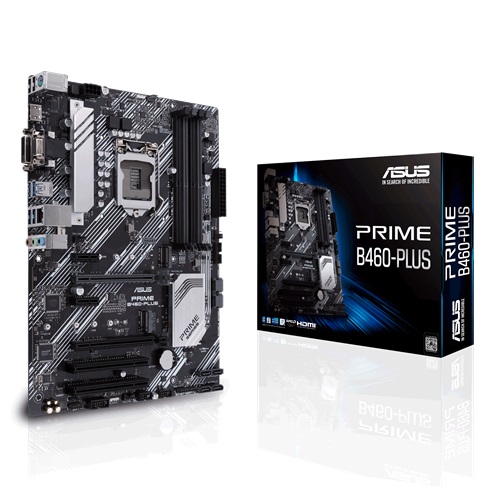

Asus PRIME B460-PLUS Intel 10th Gen ATX Motherboard

Basic Features

Model: PRIME B460-PLUS
Intel LGA 1200 socket for 10th Gen Intel Core processors
4 x DIMM, DDR4 2933MHz
Dual M.2 Support
SATA 6 Gbps

৳ 13,000.00

Out of stock

SKU: 24656 Category: Motherboard Tags: Asus, ASUS (Intel), Motherboard

Description

Specification

Basic Information
Supported CPU	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B460
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	12 inch x 9.0 inch ( 30.5 cm x 22.86 cm ) ATX
Audio	Realtek ALC887 7.1-Channel High Definition Audio CODEC – Supports : Jack-detection, up to 24-Bit/192kHz playback Audio Feature : – LED-illuminated design – Audio Shielding – Dedicated audio PCB layers – Premium Japanese audio capacitors
Expansion Slots
PCI	1 x PCIe 3.0/2.0 x16 (x16 mode) Intel B460 Chipset 1 x PCIe 3.0/2.0 x16 (x4 mode) 2 x PCIe 3.0/2.0 x1 2 x PCI
M.2 Socket	1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
Memory
Type	Dual Channel Memory Architecture
Slots	4 x DIMM
Supported Memory	4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem
Maximum Memory	128GB
Graphics
Graphics	Integrated Graphics Processor 1 x D-Sub 1 x HDMI 1.4b 1 x DVI-D 1.4 Supports AMD 2-Way CrossFireX Technology
Connector & Ports
HDMI	1 x HDMI 1.4b
D-Sub (s)	1 x D-Sub
DVI-D (s)	1 x DVI-D 1.4
USB (s)	Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s) 4 x USB 2.0 port(s)
LAN Port (s)	Realtek RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard ASUS LANGuard 1 x LAN (RJ45) port(s)
Supported Storage	Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel B460 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCI-E mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready
Audio	3 x Audio jack(s)
Internal I/O Ports	1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AAFP connector 2 x Lighting Control RGB Strip Header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header
TPM (Trusted Platform Module )	N/A
Warranty Information
Manufacturing Warranty	3 Years
Others
Special Features	ASUS 5X PROTECTION III – ASUS DIGI+ VRM – ASUS LANGuard – ASUS Overvoltage Protection – ASUS Safeslot core – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM – ASUS Q-Slot ASUS Lighting Control – Standard RGB headers
Bundled Software	ASUS Exclusive Software Armoury Crate AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ – EZ update AI Charger ASUS CPU-Z DAEMON Tools Norton Anti-virus software(Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
