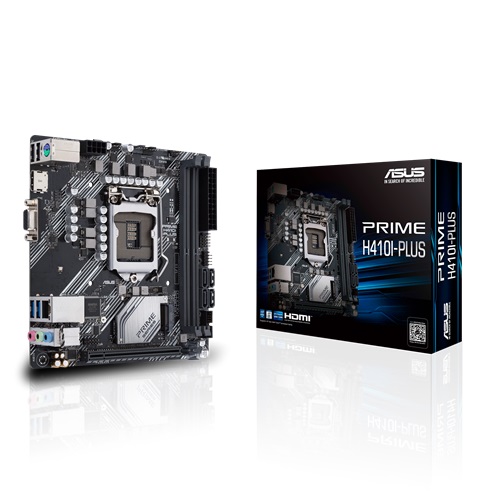

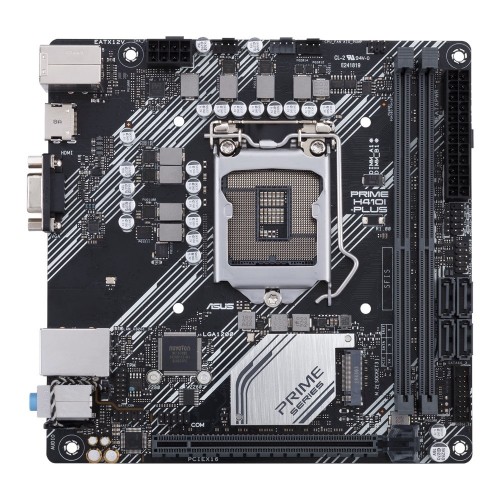

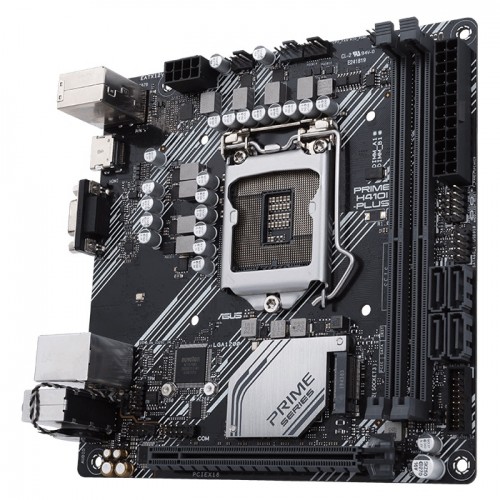

Asus Prime H410I-Plus Intel 10th Gen Mini ITX Motherboard

Basic Features

Model: Asus Prime H410I-Plus
Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors
Enhanced power solution
ASUS OptiMem II
5X Protection III

৳ 9,000.00

Out of stock

SKU: 9746 Category: Motherboard Tags: Asus, ASUS (Intel), Motherboard

Description

Specification

Basic Information
Supported CPU	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel H410
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
Expansion Slots
PCI	1 x PCIe 3.0/2.0 x16
M.2 Socket	1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode)
Memory
Type	Dual Channel Memory Architecture
Slots	2 x DIMM
Supported Memory	Supports 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	64GB
Graphics
Graphics	Integrated Graphics Processor- Intel UHD Graphics support 1 x HDMI 1.4b 1 x D-Sub

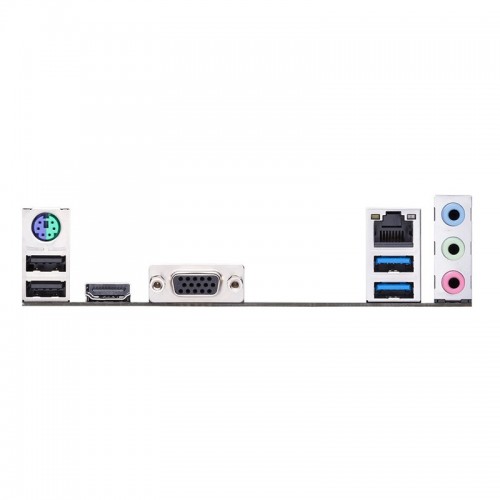

Connector & Ports
HDMI	1 x HDMI 1.4b
D-Sub (s)	1 x D-Sub
USB (s)	Rear USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s) 2 x USB 2.0 port(s)
LAN Port (s)	Realtek RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard
Supported Storage	Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports Intel H410 Chipset : 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode) 4 x SATA 6Gb/s port(s)
Audio	Realtek ALC887 7.1-Channel High Definition Audio CODEC – Supports : Jack-detection, up to 24-Bit/192kHz playback Audio Feature : – Audio Shielding – Dedicated audio PCB layers – Premium Japanese audio capacitors
Internal I/O Ports	1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x Speaker connector
TPM (Trusted Platform Module )	1 x SPI TPM header
Warranty Information
Manufacturing Warranty	03 Years
