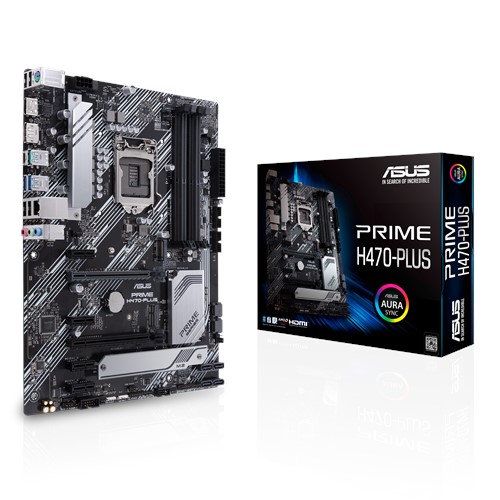

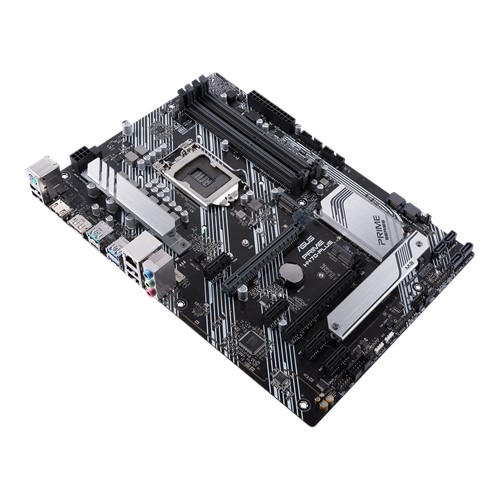

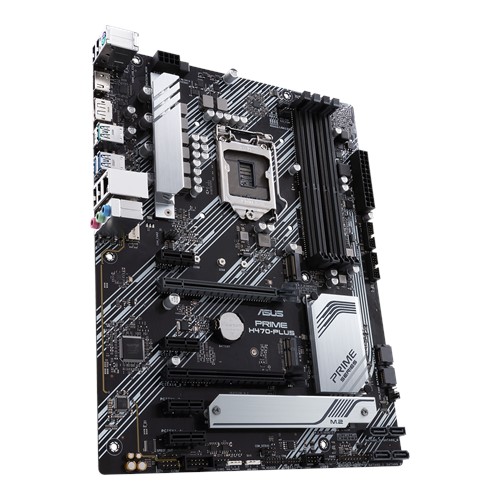

Asus Prime H470-Plus Intel 10th Gen ATX Motherboard

Basic Features

Model: Asus Prime H470-Plus
Supports Intel 10th Gen Processors
Ultrafast connectivity
Comprehensive cooling
Enhanced power solution

৳ 13,800.00

Out of stock

SKU: 23750 Category: Motherboard Tags: Asus, ASUS (Intel), Motherboard

Description

Specification

Basic Information
Supported CPU	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel H470
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Expansion Slots
PCI	Intel 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel H470 Chipset 1 x PCIe 3.0 x16 (x4 mode) 4 x PCIe 3.0 x1
M.2 Socket	1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)
Memory
Type	Dual Channel Memory Architecture
Slots	4 x DIMM
Supported Memory	2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem
Maximum Memory	128GB
Graphics
Graphics	Integrated Graphics Processor 1 x DisplayPort 1.4 1 x HDMI 1.4b Supports AMD 2-Way CrossFireX Technology
Connector & Ports
HDMI	1 x HDMI 1.4b
Display Port (s)	1 x DisplayPort 1.4

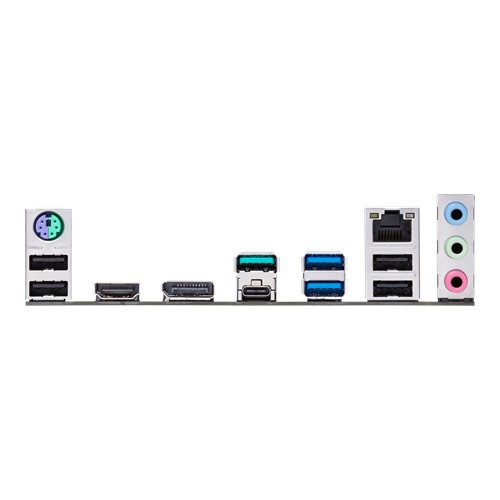

USB (s)	Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x Type-C) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) Front USB Port ( Total 7 ) 4 x USB 3.2 Gen 1 port(s) 3 x USB 2.0 port(s)
LAN Port (s)	Realtek RTL8111H
Supported Storage	Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel H470 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC – Supports: Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : – Audio Shielding – Dedicated audio PCB layers – Premium Japanese audio capacitors
Internal I/O Ports	1 x CPU Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x M.2 with E key for Wi-Fi module 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header
TPM (Trusted Platform Module )	1 x SPI TPM header
Warranty Information
Manufacturing Warranty	3 Years
Others
Special Features	Wireless Data Network: M.2 slot only (Key E) (Support PCIe interface) [ROG Exclusive Software] – RAMCache III – ROG CPU-Z – GameFirst VI – Sonic Studio III + Sonic Studio Virtual Mixer – Sonic Radar III – DTS® Sound Unbound – Overwolf – Anti-virus software [ASUS Exclusive Software] Armoury Crate – Aura Creator – Aura Sync AI Suite 3 – Performance And Power Saving Utility: -TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4 – EZ update AI Charger WinRAR [UEFI BIOS] ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode ASUS Q-Design – ASUS Q-DIMM – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – ASUS Q-Slot ASUS Thermal Solution – Aluminum M.2 heatsink ASUS EZ DIY – BIOS FlashBack button – BIOS FlashBack LED – Clear CMOS header – Pre-mounted I/O shield – SafeSlot AURA Sync – Standard RGB header(s) – Addressable Gen 2 RGB header(s) Onboard red LED lighting accent Rear audio USB Type-C connector
