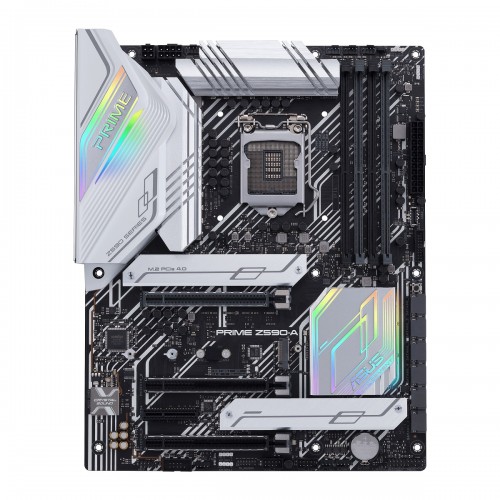

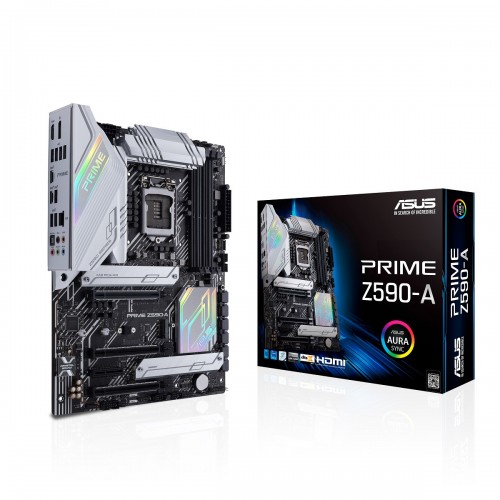

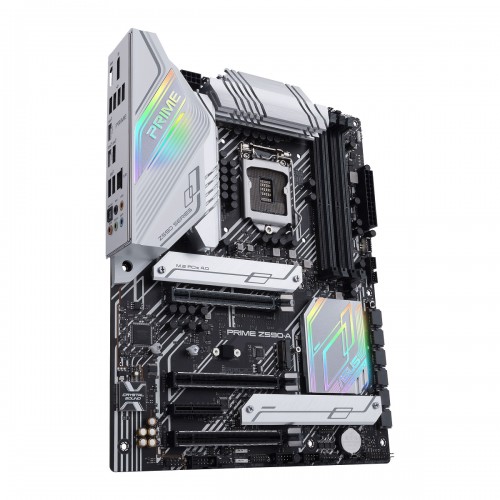

Asus Prime Z590-A Intel 10th and 11th Gen ATX Motherboard


Basic Features

  • Model: Asus Prime Z590-A
  • Support for 10th and 11th gen Intel Core Processors
  • AI Overclocking
  • Enhanced power solution
  • Two-way AI Noise Cancelation

৳ 25,500.00

Out of stock

SKU: 23789 Category: Tags: , ,
Description

Specification

Basic Information
Supported CPU Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset Intel Z590 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI Intel 11th & 10th Gen Processors
3 x PCIe 4.0/3.0 x16 slots
– Intel 11th Core processors support PCIe 4.0 x16
– Intel10th processors support PCIe 3.0 x16
Intel Z590 Chipset
1 x PCIe 3.0 x4 slot
M.2 Socket M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110
– Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel Z590 Chipset
M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes)
M.2_3 slot (Key M), type 2242/ 2260/ 22110 (supports PCIe 3.0 x4 & SATA modes)
Memory
Type DDR4
Slots 4 x DIMM
Supported Memory 5333(OC) /5133(OC) /5000(OC) /4800(OC) /4700(OC) /4600(OC) /4500(OC) /4400(OC) /4266(OC) /4133(OC) /4000(OC) /3866(OC) /3733(OC) /3600(OC) /3466(OC) /3400(OC) /3333(OC) /3200 /3000 /2933 /2800 /2666 /2400 /2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory 128GB
Graphics
Graphics 1 x DisplayPort 1.4
1 x HDMITM 2.0
Connector & Ports
HDMI 1 x HDMITM 2.0
Display Port (s) 1 x DisplayPort 1.4

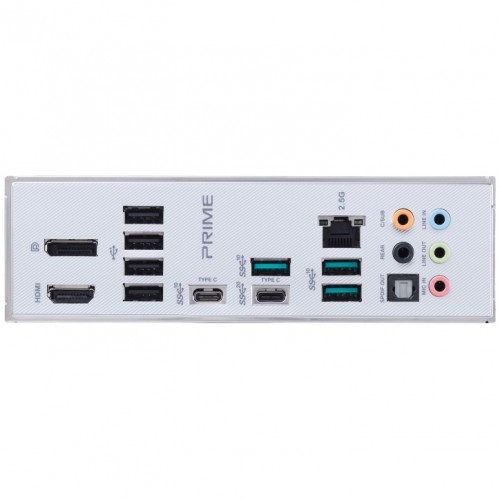

USB (s) Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x Type-C®)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s) 1 x Intel I225-V 2.5Gb Ethernet
Supported Storage Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
– Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel Z590 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
M.2_3 slot (Key M), type 2242/2260/22110 (supports PCIe 3.0 x4 & SATA modes)
6 x SATA 6Gb/s ports
Audio Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*”
Audio Features:
– Power pre-regulator reduces power input noise to ensure consistent performance
– Rear optical S/PDIF out port
– Premium Japanese audio capacitors
– Audio Shielding
– Dedicated audio PCB layers
– Audio cover
– Unique de-pop circuit
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
1 x 4-pin VRM_HS Fan header
1 x W_PUMP+ header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x AURA Addressable Gen 2 headers
1 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x CPU Over Voltage jumper
1 x Power button
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Warranty Information
Manufacturing Warranty 3 Years
Others
Special Features ASUS 5X PROTECTION III
– ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
– ASUS Enhanced DRAM Overcurrent Protection
– ASUS ESD Guards
– ASUS LANGuard
– ASUS Overvoltage Protection
– ASUS Stainless-Steel Back I/O
ASUS Q-Design :
– M.2 Q-Latch
– ASUS Q-Connector
– ASUS Q-DIMM
– ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow-green])
– ASUS Q-Slot
ASUS Thermal Solution:
– Aluminum M.2 Heatsink
– Flexible M.2 heatsink
ASUS EZ DIY:
– Procool
– Pre-mounted I/O shield
– ASUS SafeSlot

ASUS Exclusive Software:
Armoury Crate:
– Aura Creator
– Aura Sync
– Two-Way AI Noise Cancelation
AI Suite 3
– 5-way Optimization with AI Overclocking
TPU
EPU
Digi+ VRM
Fan Xpert 4
Turbo app
– EZ update
AI Charger
ASUS CPU-Z
ASUS Turbo LAN
MyAsus
DTS:X® Ultra
UEFI BIOS:
AI Overclocking Guide
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– EZ Tuning Wizard
FlexKey
