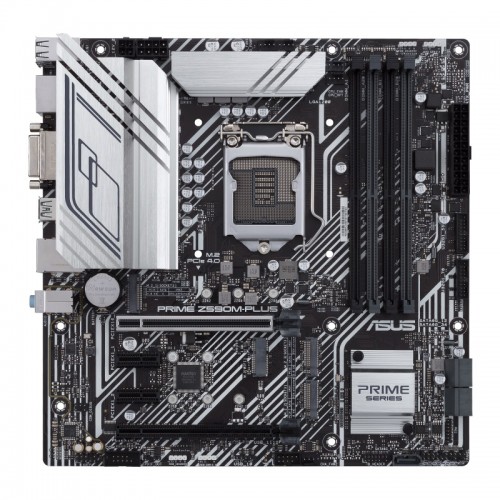

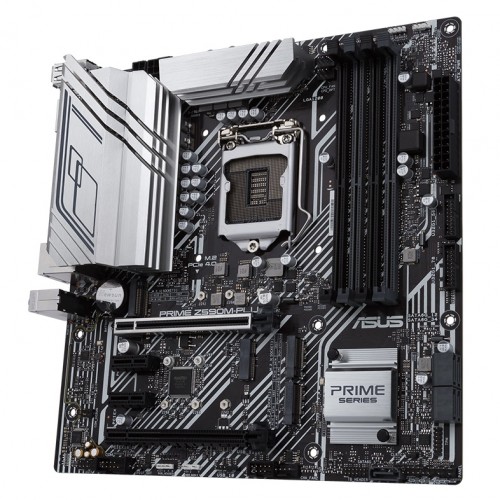

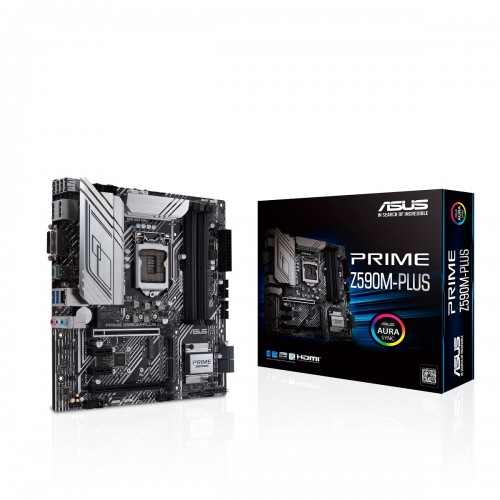

Asus Prime Z590M-PLUS Intel 10th and 11th Gen Micro ATX Motherboard

Basic Features

Model: Prime Z590M-PLUS 11th Gen
Supports 10th and 11th Gen Intel Core Processors
Next-gen connectivity
Comprehensive cooling
Enhanced power solution

৳ 0.00

Out of stock

SKU: 23748 Category: Motherboard Tags: Asus, ASUS (Intel), Motherboard

Description

Specification

Basic Information
Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset	Intel Z590 Chipset
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor: 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Expansion Slots
PCI	Intel 11th & 10th Gen Processors 1 x PCIe 4.0/ 3.0 x16 slot – Intel 11th Gen processors support PCIe 4.0 x16 or x8/ x8 or x8/ x4/ x4 mode – Intel10th Gen processors support PCIe 3.0 x16 or x8/ x8 or x8/ x4/ x4 mode Intel Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots
M.2 Socket	Total supports 3 x M.2 slots and 5 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280 – Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2260/ 2280 (supports PCIe 3.0 x4 mode)
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	10th Gen Intel Core i7/ i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel processors support 3200/ 2933/ 2800/ 2666/ 2400/ 2133 natively 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	128 GB (32 GB single DIMM capacity)
Graphics
Graphics	1 x DisplayPort 1.4 1 x DVI-D 1 x HDMI 1.4/ 2.0

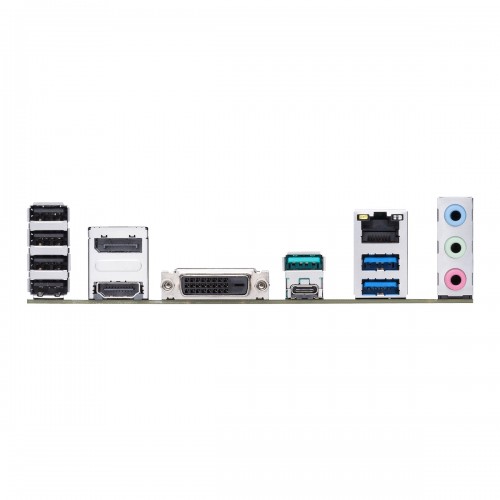

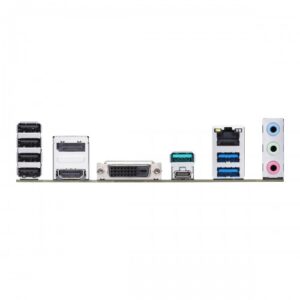

Connector & Ports
HDMI	1 x HDMI 1.4/ 2.0
Display Port (s)	1 x DisplayPort 1.4
DVI-D (s)	1 x DVI-D
USB (s)	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports
LAN Port (s)	1 x Intel I219-V 1Gb Ethernet
Supported Storage	Total supports 3 x M.2 slots and 5 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280 – Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2260/ 2280 (supports PCIe 3.0 x4 mode) 5 x SATA 6Gb/s ports Raid function in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology
Audio	Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/ 192 kHz playback Audio Features – Audio Shielding – Premium Japanese audio capacitors – Dedicated audio PCB layers
Internal I/O Ports	Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 5 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Warranty Information
Manufacturing Warranty	3 Years
Others
Special Features	Wireless & Bluetooth: M.2 slot only (Key E) (Support CNVi & PCIe interface)
