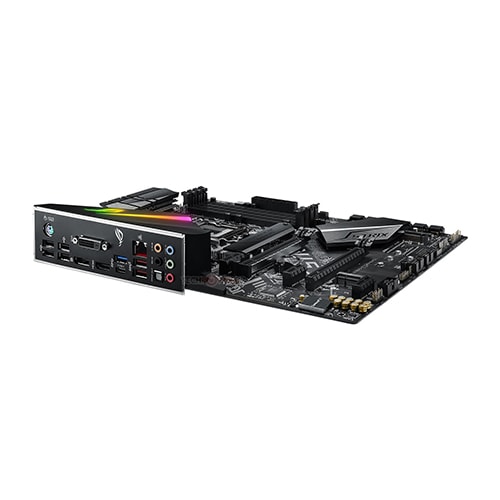

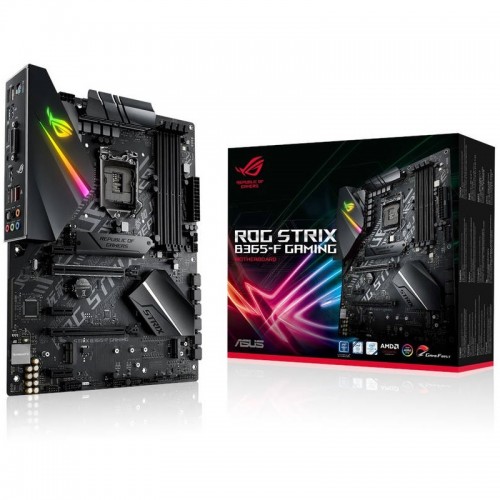

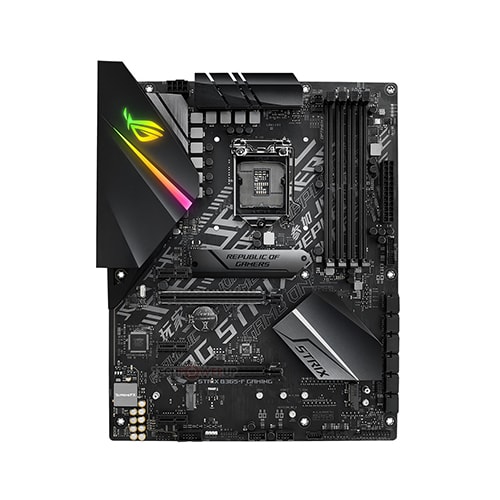

Asus ROG Strix B365-F RGB 9TH Gen LGA1151 ATX Gaming Motherboard

Basic Features

Model: Asus ROG Strix B365-F
Intel 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors
Military-grade TUF Components
Intel Optane memory ready
Onboard M.2 Heatsink

৳ 15,300.00

Out of stock

SKU: 23770 Category: Motherboard Tags: Asus, ASUS (Intel), Motherboard

Description

Specification

Basic Information
Supported CPU	Intel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU
Chipset	Intel B365
BIOS	1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI	1 x PCIe 3.0/2.0 x16 (x16 mode) 1 x PCIe 3.0/2.0 x16 (x4 mode) 3 x PCIe 3.0/2.0 x1
M.2 Socket	Intel B365 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
Memory
Type	Dual Channel Memory Architecture
Slots	4 x DIMM DDR4
Supported Memory	DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	64GB
Graphics
Graphics	Integrated Graphics Processor- Intel HD Graphics support Supports AMD CrossFireX Technology Supports up to 3 displays simultaneously
Max Shared Memory	Maximum shared memory of 1024 MB (for iGPU exclusively)
Connector & Ports
HDMI	1 x HDMI resolution 4096 x 2160 @ 30 Hz
Display Port (s)	1 x DisplayPort 1.2 resolution 4096 x 2304 @ 60 Hz
DVI-D (s)	1 x DVI-D resolution 1920 x 1200 @ 60 Hz
USB (s)	Intel B365 Chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red) Intel B365 Chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 1 x Type-A+1 x Type-C) Intel B365 Chipset : 8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)
LAN Port (s)	Intel I219V, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard ROG GameFirst Technology
Supported Storage	Intel B365 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready
Audio	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A – Dual Headphone Amplifiers – Impedance sense for front and rear headphone outputs – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – SupremeFX Shielding Technology – Supports up to 32-Bit/192kHz playback Audio Feature : – Optical S/PDIF out port(s) at back panel – Sonic Radar III – Sonic Studio III + Sonic Studio Link
Internal I/O Ports	1 x AAFP connector 1 x Aura RGB Strip Header(s) 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 6 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x COM port header
TPM (Trusted Platform Module )	1 x 14-1 pin TPM connector
Warranty Information
Manufacturing Warranty	03 Years
Others
Special Features	ROG Exclusive Features ROG CPU-Z Pre-mounted I/O Shield Overwolf ROG Aura – Aura Lighting Control – Aura RGB Strip Headers ROG Exclusive Software – RAMCache III – GameFirst V Special Features Fan Xpert4 – Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control Gamer’s Guardian: – ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports – DRAM Overcurrent Protection – Stainless Steel Back I/O – Highly Durable Components – SafeSlot AURA : – Aura Lighting Control – Aura RGB Strip Headers – Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : – AI Suite 3 – Armoury Crate ASUS EZ DIY : – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 ASUS Q-Design : – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) – ASUS Q-Slot – ASUS Q-DIMM Gaming Aesthetics : – 3D printing friendly – AURA-RGB Lighting Digi+VRM
