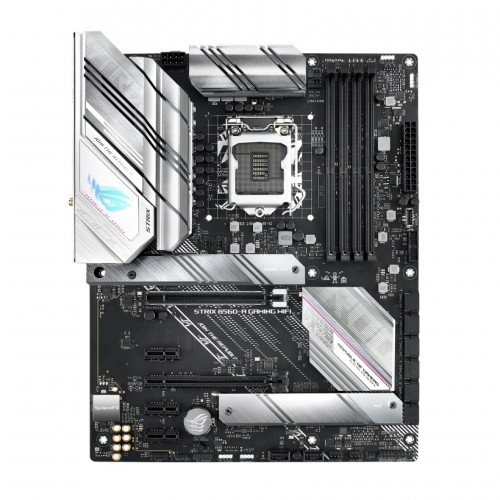

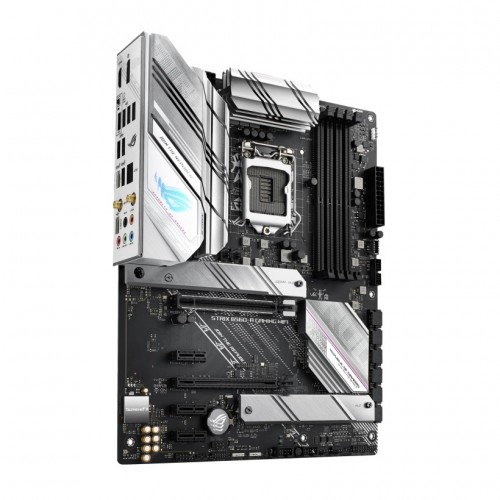

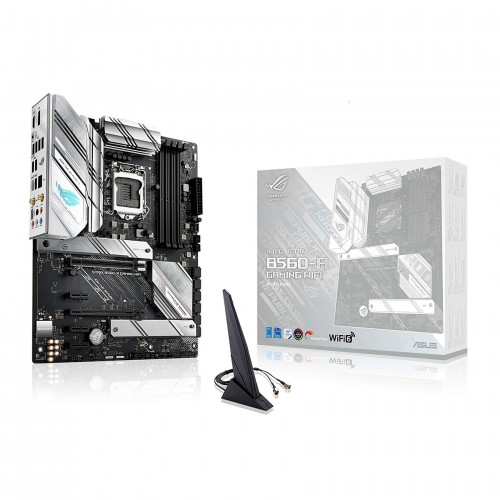

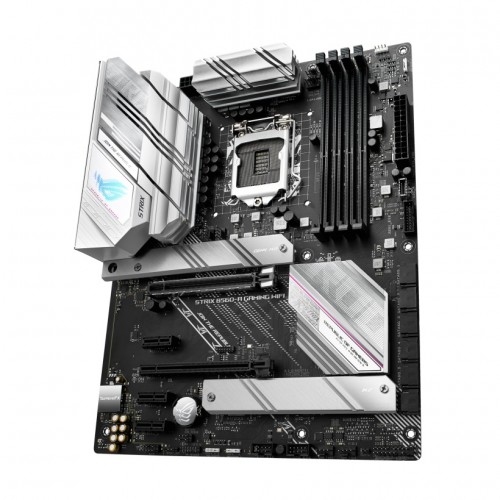

ASUS ROG STRIX B560-A 11th Gen WiFi Gaming Motherboard

Model: ROG STRIX B560-A GAMING WIFI
On-board Intel WiFi 6 (802.11ax) and Realtek 2.5 Gb Ethernet
Intel LGA 1200 socket for 11th & 10th Gen Core, Pentium Gold and Celeron processors
HDMI 2.0 and DisplayPort 1.4 output
ASUS-exclusive Aura Sync RGB lighting

৳ 22,500.00

Out of stock

SKU: 35768 Categories: Asus (Intel), Component, Motherboard Tags: Asus, ASUS (Intel), Asus Motherboard, Motherboard

Description

Specification

Basic Information
Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	B560
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX 30.5cm x 24.4cm
Audio	– SupremeFX Shielding Technology – Savitech SV3H712 AMP – Rear audio USB Type-C port – Premium Japanese audio capacitors – Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Expansion Slots
PCI	Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot(s) – Intel 11th processors support PCIe 4.0 x16 mode – Intel10th processors support PCIe 3.0 x16 modeIntel B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 3 x PCIe 3.0 x1 slots
M.2 Socket	2 x M.2 slots
Memory
Type	DDR4
Slots	4 x DDR4 (Dual channel)
Supported Memory	Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel processors support 3200/2933/2800/2666/2400/2133 natively.
Graphics
Graphics	1 x DisplayPort 1.4 1 x HDMI 2.0** * Graphics specifications may vary between CPU types. Only Intel 11th processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz .Please refer to www.intel.com for any update. * Only Intel 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Connector & Ports
HDMI	1 x HDMI 2.0
Display Port (s)	1 x DisplayPort 1.4

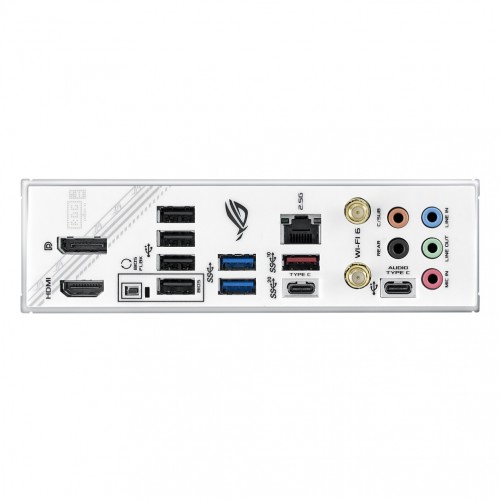

USB (s)	Rear USB: Total 9 ports 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 port (2 x Type-A) 5 x USB 2.0 port(s) (4 x Type-A, 1 x audio USB Type-C)Front USB: Total 7 ports 1 x USB 3.2 Gen 1 connector(s) (suppport(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
LAN Port (s)	1 x Realtek 2.5Gb Ethernet ASUS LANGuard

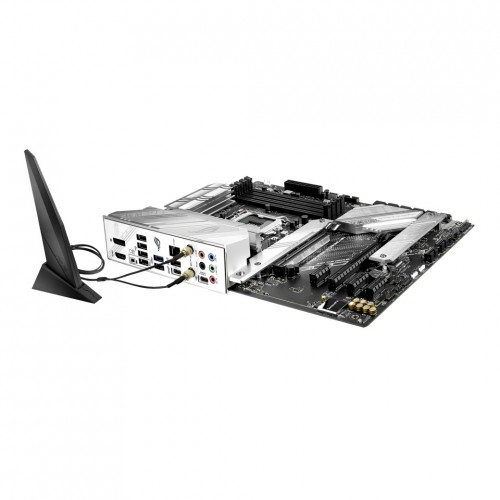

Wireless Communication module	Intel Wi-Fi 6
Supported Storage	Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 – Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports * When M.2_2 runs at SATA mode, SATA6G_1 will be disabled ** To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.
Audio	5 x Audio jacks
Internal I/O Ports	1 x TB Header (for add-on TB card) Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel heade 1 x Thunderbolt header 1 x S/PDIF Out header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Warranty Information
Manufacturing Warranty	03 Years Warranty
Others
Special Features	Extreme Engine Digi+ – 5K Black Metallic CapacitorsASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-SlotASUS Thermal Solution – M.2 heatsink ASUS EZ DIY – BIOS FlashBack button – BIOS FlashBack LED – ProCool – Pre-mounted I/O shield – SafeSlot AURA Sync – AURA RGB header(s) – Addressable Gen 2 RGB header(s)
Bundled Software	ROG Exclusive Software – RAMCache III – ROG CPU-Z – GameFirst VI – Sonic Studio III + Sonic Studio Virtual Mixer – Sonic Radar III – DTS Sound Unbound – Overwolf – Anti-virus software ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – AURA Creator – AURA Sync – Two-Way AI Noise Cancelation AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 4 – EZ update MyAsus WinRAR DAEMON Tools UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
