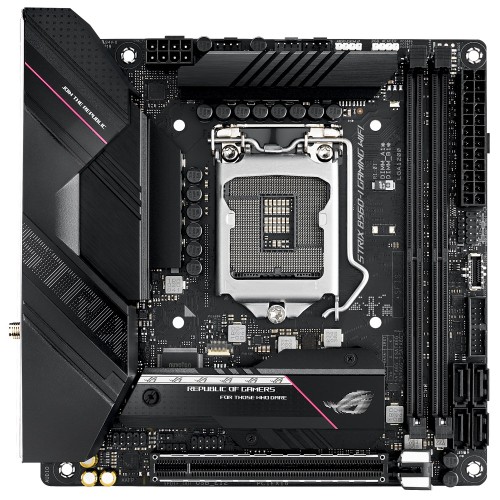

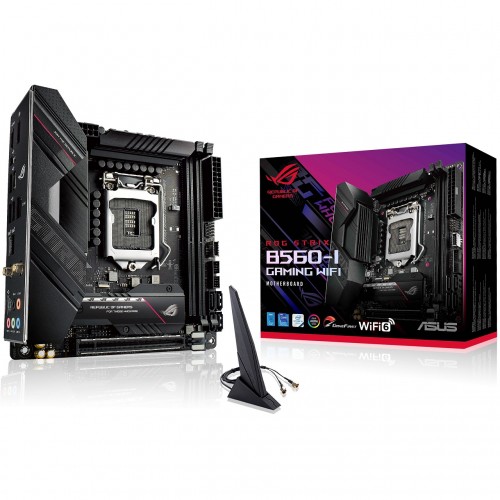

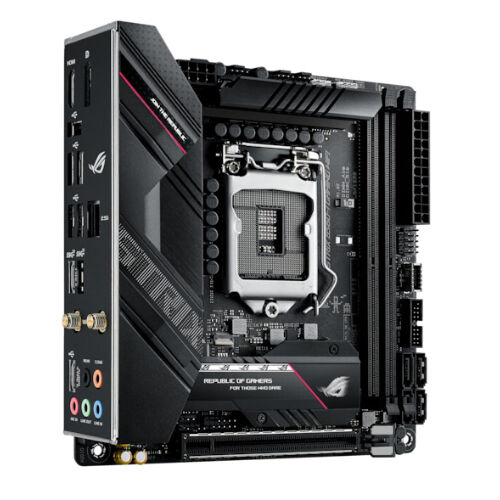

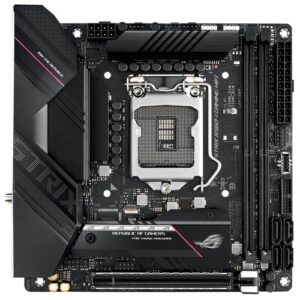

ASUS ROG STRIX B560-I Gaming Wi-Fi Intel 10th and 11th Gen Mini ITX Motherboard

Basic Features

Model: ROG STRIX B560-I Gaming Wi-Fi 11th Gen
Supports 11th & 10th Gen processors for LGA 1200 socket
Solid Power Solution
Best Gaming Connectivity
Unmatched Personalization

৳ 17,900.00

Out of stock

SKU: 24237 Category: Motherboard Tags: Asus, ASUS (Intel), Motherboard

Description

Specification

Basic Information
Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
Chipset	Intel B560 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	Mini ITX: 17cm x 17cm
Expansion Slots
PCI	Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot(s) – Intel 11th processors support PCIe 4.0 x16 – Intel 10th processors support PCIe 3.0 x16
M.2 Socket	Supports 2 x M.2 slots Intel 11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280 – Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Memory
Type	DDR4
Slots	2x DDR4 memory slots
Supported Memory	5333(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II 10th Gen Intel i7/ i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel processors support 3200/ 2933/ 2800/ 2666/ 2400/ 2133 natively.
Maximum Memory	Support up to 64GB
Graphics
Graphics	1 x DisplayPort 1.4 1 x HDMI 1.4 / 2.0
Connector & Ports
HDMI	1 x HDMI 1.4 / 2.0
Display Port (s)	1 x DisplayPort 1.4

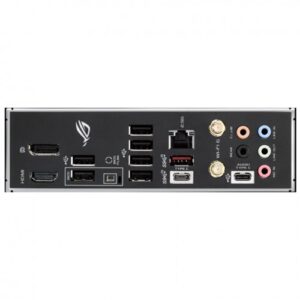

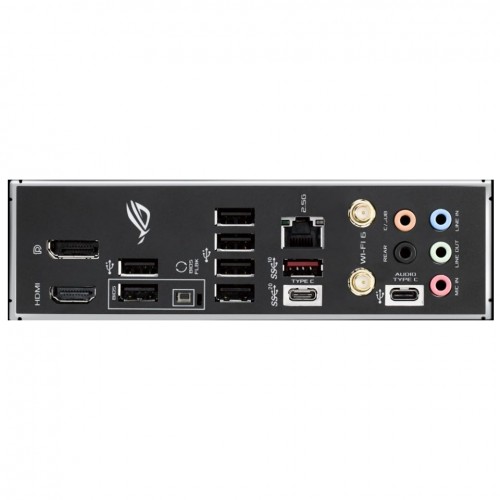

USB (s)	Rear USB: Total 8 ports 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 6 x USB 2.0 port(s) (5 x Type-A, 1 x audio USB Type-C) Front USB: Total 5 ports 1 x USB 3.2 Gen 2 connector(s) (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
LAN Port (s)	1 x Realtek 2.5Gb Ethernet
Wireless Communication module	Intel Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.0 or later
Supported Storage	Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280 – Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.
Audio	ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Rear audio USB Type-C® port – Premium Japanese audio capacitors
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports Miscellaneous 1 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )	N/A
Warranty Information
Manufacturing Warranty	03 Years
Others
Special Features	Extreme Engine Digi+ – 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – Q-LED CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-DIMM – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink ASUS EZ DIY – ProCool – Pre-mounted I/O shield – SafeSlot AURA Sync – AURA RGB header(s) – Addressable Gen 2 RGB header(s)
