Asus ROG Strix Z590-I Gaming Wi-Fi Intel 10th and 11th Gen Micro ATX Motherboard

Basic Features

Model: ROG Strix Z590-I Gaming Wi-Fi
Supports 10th and 11th Gen Intel Core Processors
Next-gen connectivity
Comprehensive cooling
Enhanced power solution

৳ 0.00

Out of stock

SKU: 23711 Category: Motherboard Tags: Asus, ASUS (Intel), Motherboard

Description

Specification

Basic Information
Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel Z590 Chipset
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	Mini ITX: 17cm x 17cm
Expansion Slots
PCI	Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot(s) – Intel 11th Gen processors supports PCIe 4.0 x16 mode – Intel 10th Gen processors supports PCIe 3.0 x16 mode
M.2 Socket	Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280 – Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel Z590 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes)
Memory
Type	DDR4
Slots	2 x DIMM
Supported Memory	5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem II 10th Gen Intel Core i7/ i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel Core processors support 3200/ 2933/ 2800/ 2666/ 2400/ 2133 natively.
Maximum Memory	64GB (32 GB single DIMM capacity)
Graphics
Graphics	1 x HDMI 2.0
Connector & Ports
HDMI	1 x HDMI 2.0
D-Sub (s)	1 x D-Sub

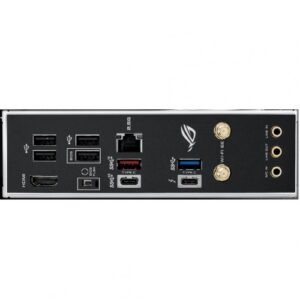

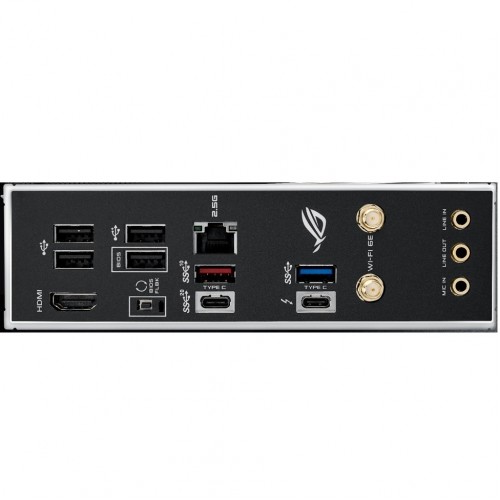

USB (s)	Rear USB: Total 8 ports 1 x Thunderbolt 4 port(s) (1 x USB Type-C) with up to 5V/3A, 15W charging support 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 1 x USB 3.2 Gen 1 port(s) (1 x Type-A) 4 x USB 2.0 port(s) (4 x Type-A) Front USB: Total 5 ports 1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
LAN Port (s)	1 x Intel I219-V 1Gb Ethernet
Supported Storage	Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280 – Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel Z590 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Audio	– Audio Shielding – ALC4080 + Savitech SV3H712 AMP – LED-illuminated audio jacks – Premium Japanese audio capacitors
Internal I/O Ports	1 x Thunderbolt 4 (onboard) Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports Miscellaneous 1 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
Warranty Information
Manufacturing Warranty	3 Years
Others
Special Features	Wireless & Bluetooth: Intel Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/ b/ g/ n/ ac/ ax) Supports 2.4/ 5/ 6GHz frequency band Bluetooth v5.2 hardware ready
