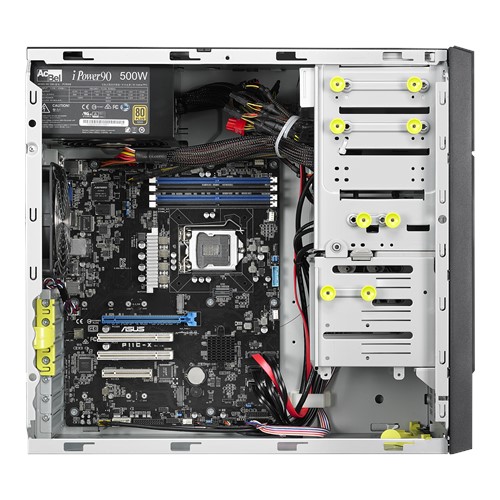

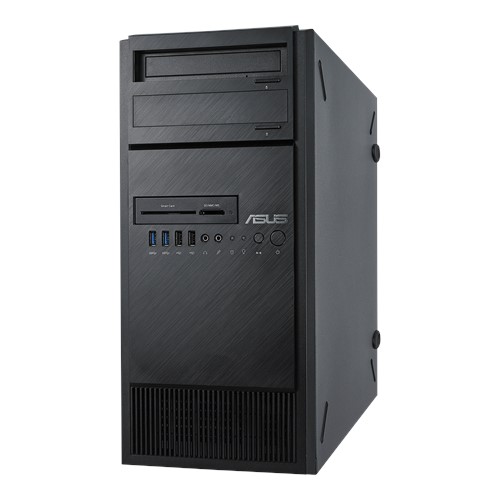

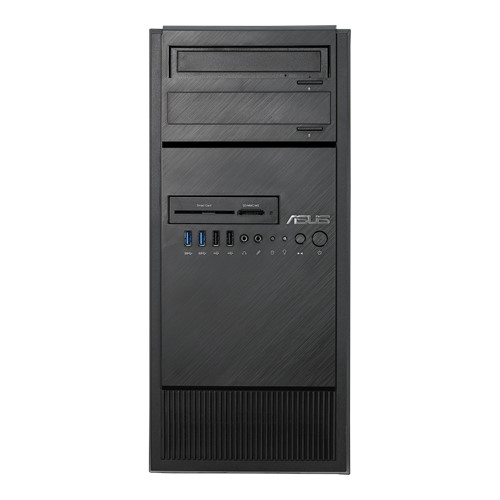

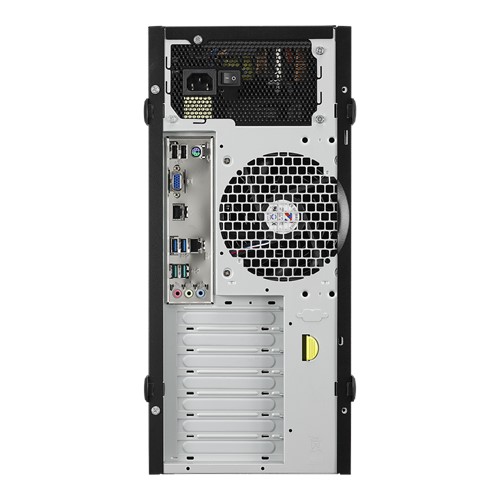

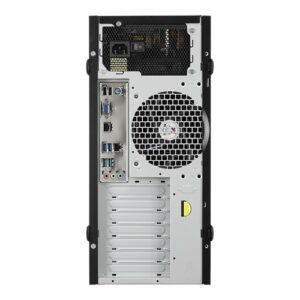

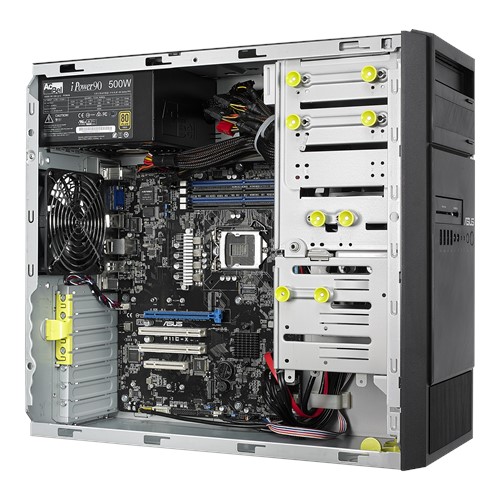

Asus TS100 Intel Xeon E-2236 Processor 6 Core Tower Server
Basic Features
- MPN: TS100-E10-PI4
- Model: TS100
- Intel Xeon E-2236 Processor (3.40GHz up to 4.80GHz,12M Cache)
- 8GB 2666MHz RAM
- 1 x 2TB SATA3 HDD
- 300W 80 PLUS Power Supply
৳ 0.00
Out of stock
Description
Specification
| Basic Information | ||
| Processor | Intel® Xeon E-2236 Processor (3.40GHz up to 4.80GHz, 12M Cache) , 6 Core, 12 Threads, 12 MB Intel Cache, turbo (80W) Max Mem 2666MHz | |
| Memory | 8GB 2666MT/s UDIMM non ECC and with ECC Sockets: 4 Maximum RAM: Up to 128GB | |
| Hard Disk | 1 x 2TB 7.2K RPM SATA3 ENTERPRISE 6Gbps 3.5in Hard Drive | |
| Chipset | Intel C242 Chipset | |
| Video Memory | Aspeed AST2510 with 64MB VRAM | |
| RAID Controller | Support software RAID 0, 1, 10 & 5 Intel Rapid Storage Technology Enterprise(RSTe) | |
| Operating System | Windows Server 2019 Windows Server 2016 RedHat Enterprise Linux SuSE Linux Enterprise Server CentOS Vmware |
|
| Chasis | Tower | |
| Embedded System Management | Remote Management: 1 x i219-LM Management Solution: ASUS Control Center Enterprise |
|
| Additional Features | ||
| Optical Drive | 1 x Slim-type Optical Drive Bay | |
| Power Supply and Cable | 300W 80PLUS Single Power Supply, Bronze Rating: 100-127/220-240Vac, 6/3A, 60-50Hz, Class I |
|
| Drive Bays | “3 x Internal 3.5 (or 2 x 2.5 optional cage) drive bays 1 x Internal 2.5″” drive bay 1 x Optional internal 5.25 to 3.5/2.5 drive cage Support only 1 drive when add-on card over 9.5 installed on x16 link slot 2 x M.2 (NGFF 22110/2280/2260/2242. One supports both SATA 6Gb/s & PCI-E Gen3 x2 link, the other is SATA 6Gb/s only.)” |
|
| Form Factor | Tower | |
| I/O Slots | 2 x USB 3.0 ports 2 x USB 2.0 ports 1 x Headphone port 1 x Microphone port “2 x USB 3.1 ports 2 x USB 3.0 ports 2 x USB 2.0 ports 1 x VGA Port (onboard Aspeed AST2510) 2 x LAN Ports 3 x Audio Jacks (onboard Realtek ALC887-VD2 8-Channel High Definition Audio CODEC) 1 x PS/2 Keyboard/ Mouse Port 1 x PCI-E x16 (Gen3 x16 Link) 1 x PCI-E x8 (Gen3 x4 Link) 2 x PCI |
|
| Manufacture Warranty | ||
| Warranty | 03 years warranty | |
