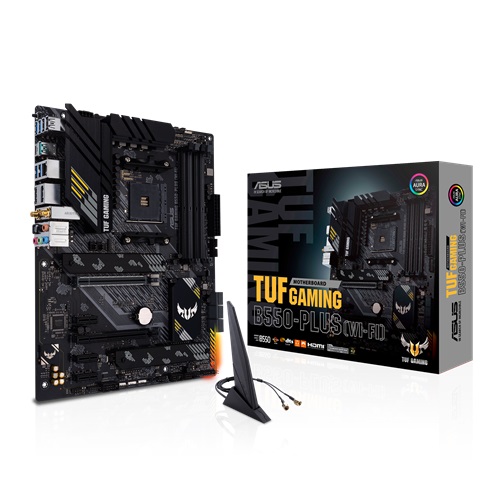

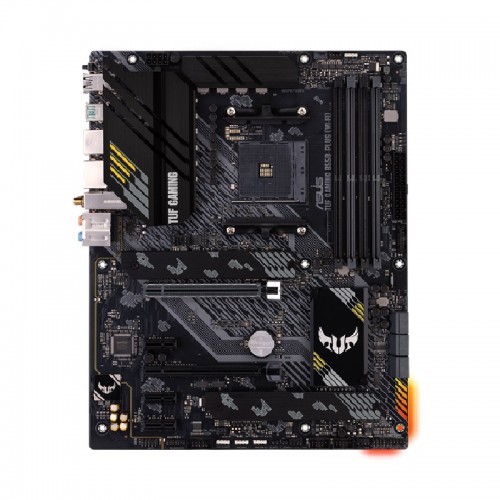

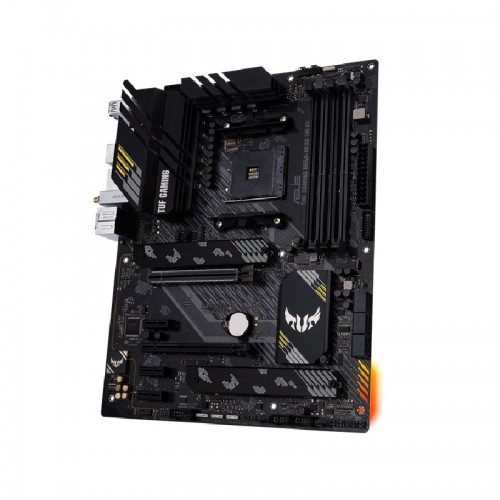

Asus TUF Gaming B550 Plus WI-FI ATX AM4 Motherboard

Basic Features

Model: Asus TUF Gaming B550 Plus WI-FI
AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
8+2 DrMOS power stages
PCIe 4.0, dual M.2
Intel Wi-Fi 6, 2.5 Gb Ethernet

৳ 18,300.00

Out of stock

SKU: 23773 Category: Motherboard Tags: Asus, ASUS (AMD), Motherboard

Description

Specification

Basic Information
Supported CPU	AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset	AMD B550
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) ATX
Audio	Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : – Exclusive DTS Custom for GAMING Headsets. – Optical S/PDIF out port(s) at back panel – Audio cover – Audio Shielding – Dedicated audio PCB layers – Premium Japanese audio capacitors – Unique de-pop circuit
Expansion Slots
PCI	AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 mode) AMD RyzenT 4000 G-Series Processor 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1
M.2 Socket	1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (SATA & PCIe 4.0 x4 mode) AMD RyzenT 4000 G-Series Processors : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCI-E 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCI-E 3.0 x4 and SATA modes) storage devices support
Memory
Type	Dual Channel Memory Architecture
Slots	4 x DIMM DDR4
Supported Memory	AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory * AMD RyzenT 4000 G-Series Processors 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.
Maximum Memory	128GB
Graphics
Graphics	1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) Graphics specifications may vary between CPU types.
Connector & Ports
HDMI	1 x HDMI 2.1(4K@60HZ)
Display Port (s)	1 x DisplayPort 1.2

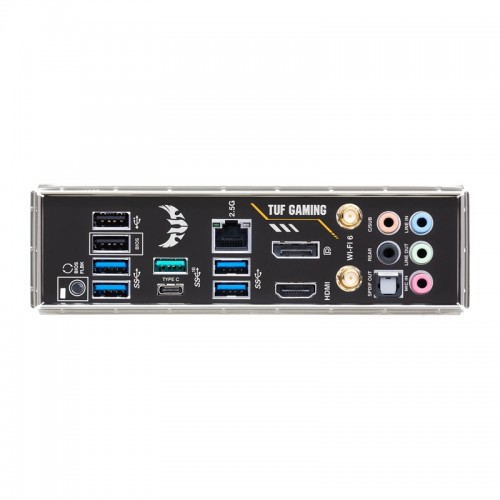

USB (s)	Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 4 x USB 3.2 Gen 1 port(s)( x Type-A) 2 x USB 2.0 port(s)( x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
LAN Port (s)	Realtek RTL8125B 2.5Gb Ethernet TUF LANGuard 1 x LAN (2.5G) port(s)
Supported Storage	Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD RyzenT 4000 G-Series Processors : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCI-E 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCI-E 3.0 x4 and SATA modes) storage devices support*2 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
Audio	5 x Audio jack(s)
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header
TPM (Trusted Platform Module )	1 x SPI TPM header
Warranty Information
Manufacturing Warranty	3 years
Others
Special Features	ASUS TUF PROTECTION – ASUS DIGI+ VRM (Digital power design with Dr. MOS) – ASUS Enhanced DRAM Overcurrent Protection – ASUS ESD Guards – TUF LANGuard – ASUS Overvoltage Protection – ASUS SafeSlot – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – ASUS Q-Slot ASUS Thermal Solution – Aluminum M.2 heatsink ASUS EZ DIY – BIOS FlashBack button – BIOS FlashBack LED – Procool AURA Sync – Standard RGB headers – Addressable Gen 2 RGB header
Bundled Software	ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – AI Noise Cancelling Microphone AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 – EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
