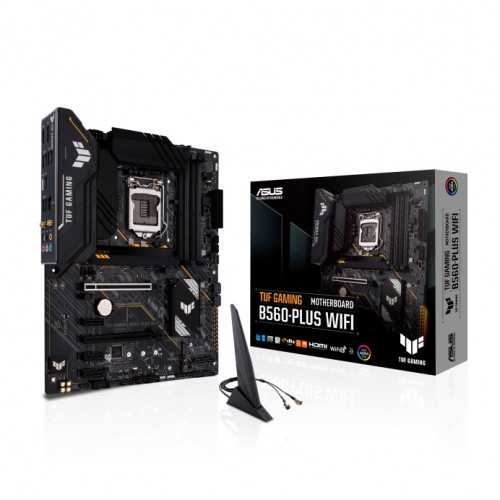

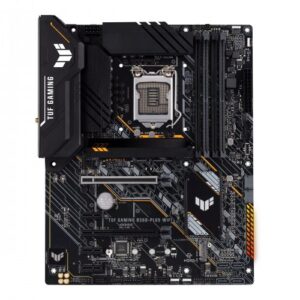

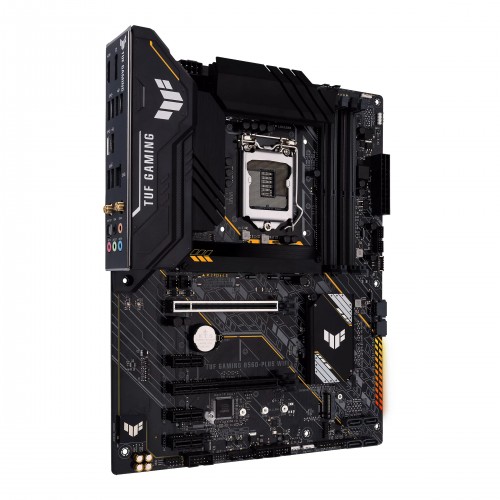

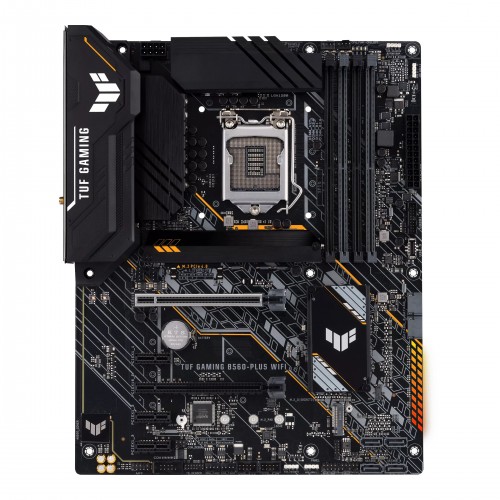

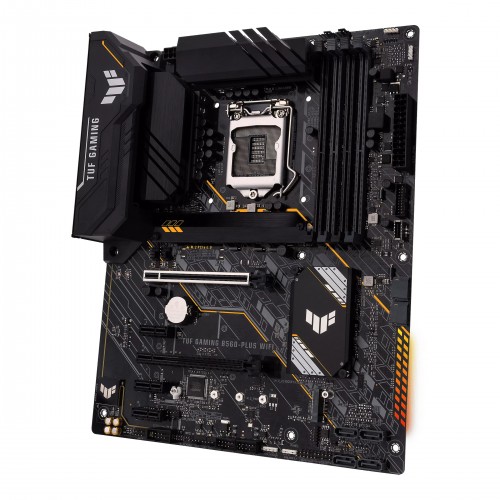

Asus TUF GAMING B560-PLUS WIFI 11th And 10th Gen ATX Motherboard

Model: TUF GAMING B560-PLUS WIFI
8+1 DrMOS power stages, 6-layer PCB
Intel LGA 1200 socket: Ready for 10th and 11th gen Intel Core processors
PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C

৳ 19,000.00

Out of stock

SKU: 35729 Categories: Asus (Intel), Component, Motherboard

Description

Specification

Basic Information
Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B560 Express Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX: 30.5cm x 23.4cm
Expansion Slots
PCI	Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot – Intel 11th processors support PCIe 4.0 x16 – Intel10th processors support PCIe 3.0 x16 Intel B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots
M.2 Socket	Intel 11th Gen Processors – M.2_1 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 4.0 x 4 ) – Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset – M.2_2 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 3.0 x 4 & SATA mode modes)
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	11th Gen Intel processors support 2933/ 2800/ 2666/ 2400/ 2133 natively. 10th Gen Intel Core i7/ i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered memory Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) ASUS OptiMem
Maximum Memory	128 GB (32 GB single DIMM capacity)
Graphics
Graphics	1 x DisplayPort 1.4 1 x D-Sub 1 x HDMI 1.4/2.0

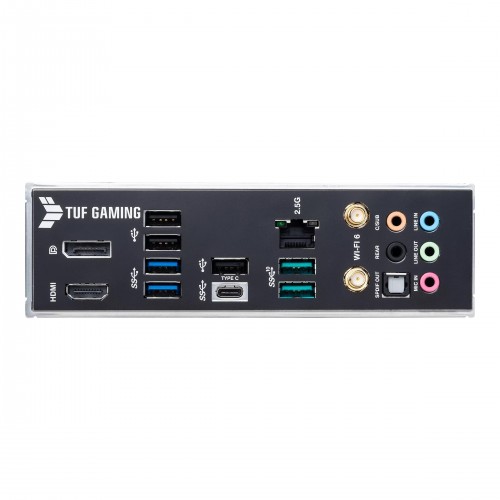

Connector & Ports
HDMI	1 x HDMI 1.4/ 2.0
Display Port (s)	1 x DisplayPort 1.4
D-Sub (s)	1 x D-Sub
USB (s)	2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x USB Type-C) 4 x USB 2.0 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)	1 x Intel I219-V 1Gb Ethernet ASUS LANGuard
Supported Storage	Intel 11th Gen Processors – M.2_1 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 4.0 x 4 ) – Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset – M.2_2 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 3.0 x 4 & SATA mode modes) – 6 x SATA 6Gb/s ports
Audio	Realtek ALC897 7.1-Channel High Definition Audio CODEC Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192kHz playback Audio Features – Audio Shielding – Premium Japanese audio capacitors – Dedicated audio PCB layers
Internal I/O Ports	Fan and cooling-related 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS jumper 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF out header 1 x 20-3pin System Panel header with Chassis intrude function 1 x M.2 slot (key E) 1 x Thunderbolt 4 header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1 pin)
Warranty Information
Manufacturing Warranty	3 Years
Others

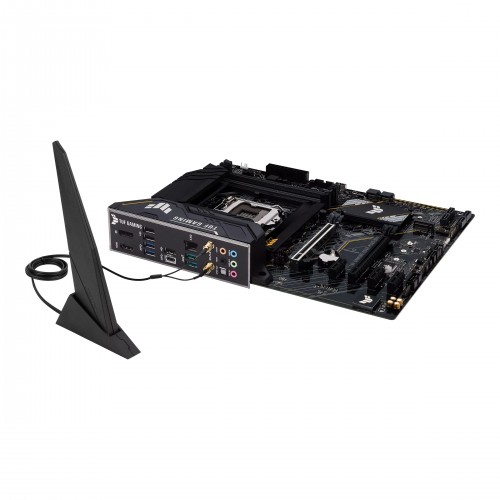

Special Features	Wireless & Bluetooth: M.2 slot only (Key E, CNVi & PCIe)
