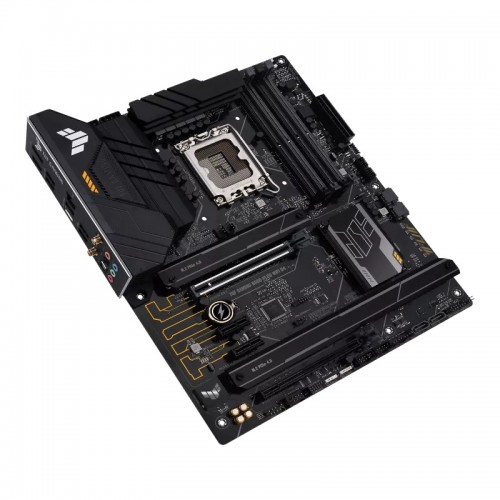

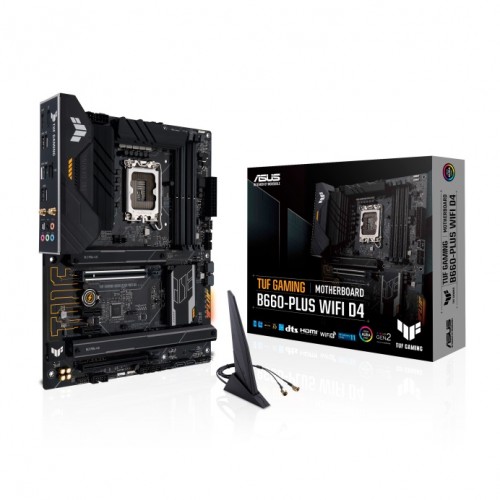

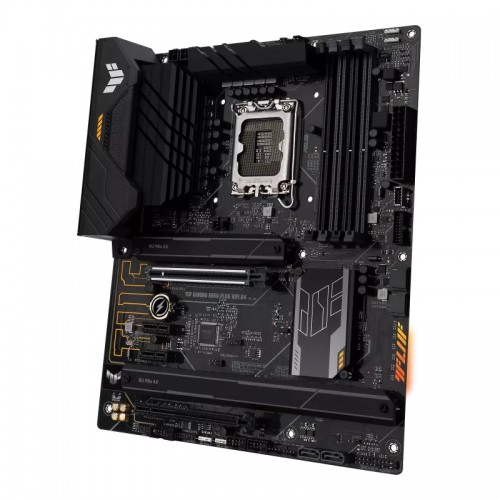

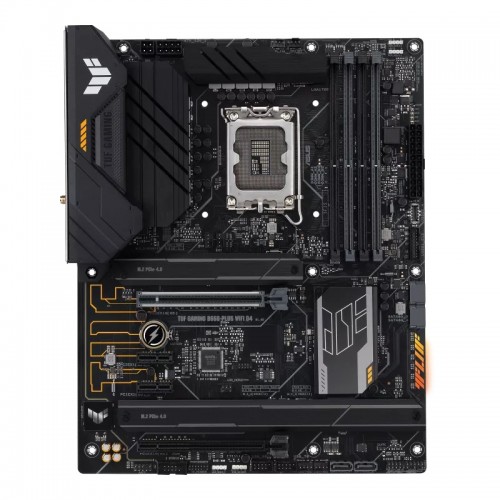

ASUS TUF GAMING B660-PLUS WIFI D4 ATX 12TH GEN INTEL ATX MOTHERBOARD

Model: TUF GAMING B660-PLUS WIFI D4
Intel LGA 1700 socket: Ready for 12th Gen Intel processors
10+1 DrMOS power stages, six-layer PCB
PCIe 5.0 slot, PCIe 4.0 M.2 slots
Intel WiFi 6, Intel 2.5Gb Ethernet, TUF LANGuard

৳ 24,000.00

Out of stock

SKU: 35761 Categories: Asus (Intel), Component, Motherboard Tags: Asus, ASUS (Intel), Asus Motherboard

Description

Specification

Basic Information
Supported CPU	Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B660 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playbackAudio Features – Rear optical S/PDIF out port – Premium audio capacitors – Dedicated audio PCB layers – Audio cover
Expansion Slots
PCI	Intel 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot(s)Intel B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	Max. 128GB
Graphics
Graphics	1 x DisplayPort (Supports 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI	1 x HDMI port
Display Port (s)	1 x DisplayPort

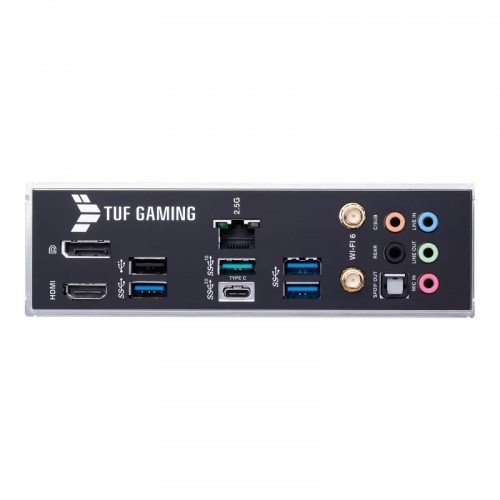

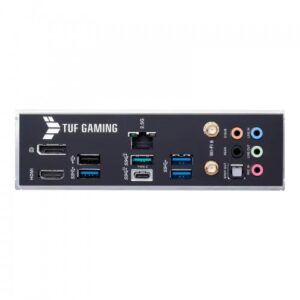

USB (s)	Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3 x USB 3.2 Gen 1 port(s) (3 x Type-A) 1 x USB 2.0 port(s) (1 x Type-A)Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
LAN Port (s)	1 x Intel 2.5Gb Ethernet TUF LANGuard

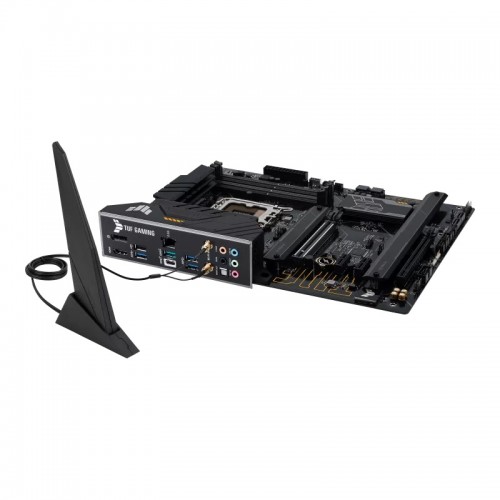

Wireless Communication module	Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Supported Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 – Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Audio	5 x Audio jacks
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s)Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connectorStorage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header
Warranty Information
Manufacturing Warranty	3 years
Others
Special Features	ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – Enhanced DRAM Overcurrent Protection – ESD Guards – TUF LANGuard – Overvoltage Protection – Safeslot – Stainless-Steel Back I/OASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-SlotASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – CPU Socket lever protector – ProCool – Pre-mounted I/O shield – SafeDIMM AURA Sync – AURA RGB header(s) – Addressable Gen 2 header(s)
Bundled Software	ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync – Fan Xpert 4 – Two-Way AI Noise Cancelation AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
