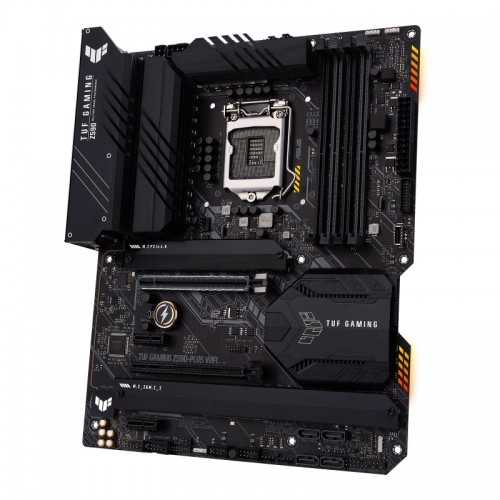

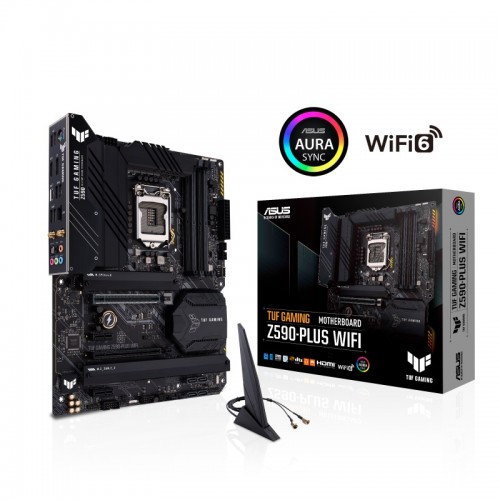

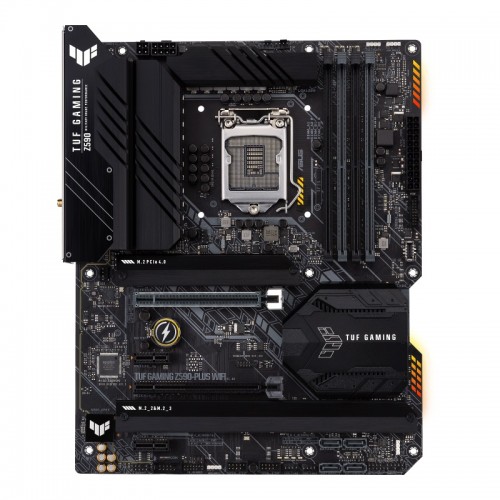

Asus TUF Gaming Z590-Plus Wi-Fi Intel 10th and 11th Gen ATX Motherboard

Basic Features

Model: Asus TUF Gaming Z590-Plus Wi-Fi
Ready for 10th and 11th Intel Core Processors
Comprehensive cooling
Enhanced power solution
Two-way AI Noise Cancelation

৳ 21,000.00

Out of stock

SKU: 9779 Category: Motherboard Tags: Asus, ASUS (Intel), Motherboard

Description

Specification

Basic Information
Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel Z590 Chipset
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI	Intel 11th & 10th Gen Processors 1 x PCIe 4.0/ 3.0 x16 slot – Intel 11th processors support PCIe 4.0 x16 – Intel10th processors support PCIe 3.0 x16 Intel Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots
M.2 Socket	M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 – Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes)
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	128GB
Graphics
Graphics	1x DisplayPort 1.4 1x HDMITM 2.0

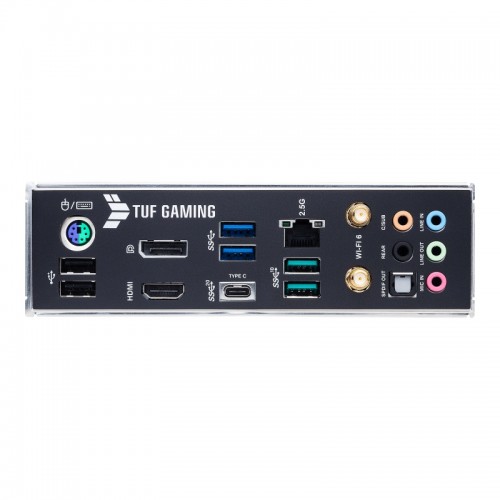

Connector & Ports
HDMI	1x HDMITM 2.0
Display Port (s)	1x DisplayPort 1.4
USB (s)	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)	1 x Intel I225-V 2.5Gb Ethernet TUF LANGuardWireless & Bluetooth “Intel Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/ b/ g/ n/ ac/ ax) Supports 2.4/ 5GHz frequency band Bluetooth v5.0 or later”
Supported Storage	Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel 11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 – Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) 6 x SATA 6Gb/s ports
Audio	“Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback” Audio Features – Audio Shielding – Rear optical S/PDIF out port – Premium Japanese audio capacitors – Dedicated audio PCB layers – Audio cover
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header
TPM (Trusted Platform Module )	N/A
Warranty Information
Manufacturing Warranty	3 Years
Others
Special Features	ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – Enhanced DRAM Overcurrent Protection – TUF LANGuard – Overvoltage Protection ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – ProCool – Pre-mounted I/O shield – SafeSlot AURA Sync – AURA RGB headers – Addressable Gen 2 RGB headers
