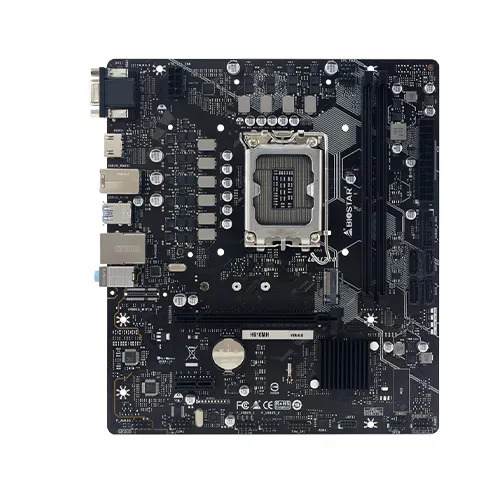

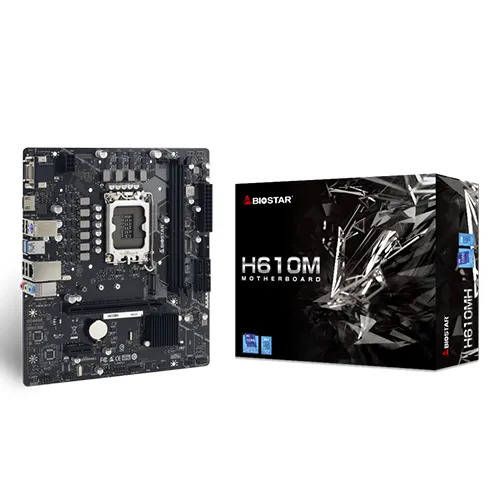

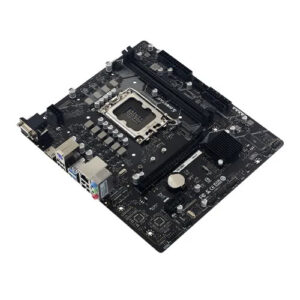

BIOSTAR H610MH 12TH GEN MICRO ATX INTEL MOTHERBOARD

Brand:BIOSTAR
Model:H610MH
Warranty:3 years

৳ 7,700.00

Out of stock

SKU: 39008 Categories: Component, Motherboard Tags: BIOSTAR, Component, H610MH, Motherboard

Description

Specifications

Motherboard
Supported CPU	Support For 12th Generation Intel Core™ I9/ I7/ I5/ I3 Processors And Intel Pentium Processors/ Intel Celeron Processors In The LGA1700 Package
Chipset	Intel H610
Memory	Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200 2 X DDR4 DIMM Memory Slot, Max. Supports Up To 64 GB Memory Each DIMM Supports Non-ECC 4/8/16/32GB DDR4 Module Support Intel Extreme Memory Profile (XMP) Memory Modules
Graphics	Supports DX12 Supports HDCP
Slots	1x PCIe 3.0 X1 Slot 1x PCIe 4.0 X16 Slot
Supported Storage	Total Supports 1x M.2 Socket And 4 X SATA III (6Gb/S) Ports 4 X SATA III Connector (6Gb/S) 1 X M.2 (M Key) Socket (M2_PCIEG3_32G_ SATA): Supports M.2 Type 2240 /2260 /2280 SSD Module Supports PCI-E 3.0 X4 (32Gb/S) & SATA SSD
LAN	Intel I219V 10/ 100/ 1000 Mb/S Auto Negotiation, Half / Full Duplex Capability
Audio	(ALC897) 7.1 Channels, High Definition Audio
USB Port	4 X USB 3.2 (Gen1) Ports (2 On Rear I/Os And 2 Via Internal Headers) 8 X USB 2.0 Ports (4 On Rear I/Os And 4 Via Internal Headers)
Internal I/O Ports	4 X SATA III Connectors (6Gb/S) 2 X USB 2.0 Headers (Each Header Supports 2 USB 2.0 Ports) 1 X USB 3.2 (Gen1) Header (Each Header Supports 2 USB 3.2 (Gen1) Ports) 1 X 8-Pin Power Connector 1 X 24-Pin Power Connector 1 X CPU Fan Connector 1 X System Fan Connector 1 X Front Panel Header 1 X Front Audio Header 1 X Internal Stereo Speaker Header 1 X Clear CMOS Header 1 X COM Port Header 1 X TPM Header

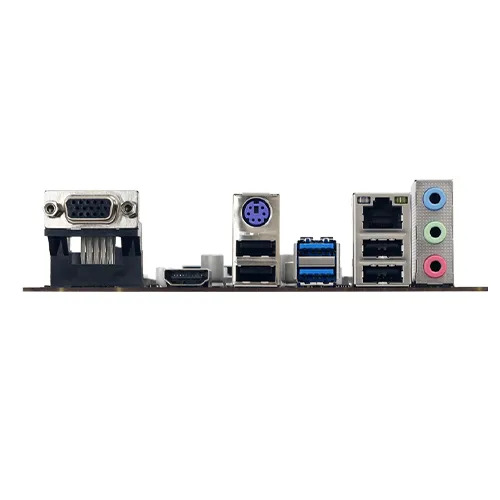

External I/O Ports	1 X PS/2 Keyboard/Mouse Port 1 X HDMI 1 X VGA Port 2 X USB 3.2 (Gen1) Ports 4 X USB 2.0 Ports 1 X LAN Port 3 X Audio Jack
DIMENSIONS	20.8cm X 23.6cm ( W X L )
Form Factor	Micro ATX
HDMI	Supports HDMI 4K2K
Warranty	3 Years
