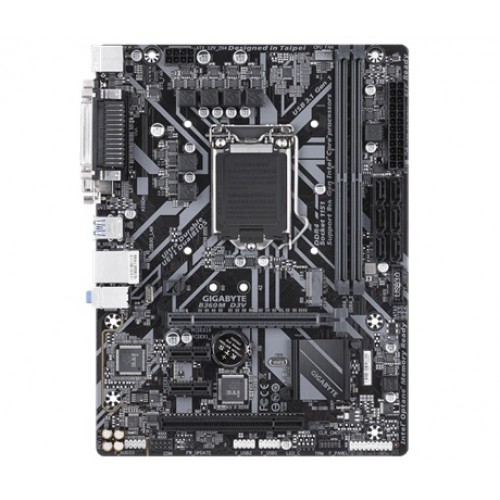

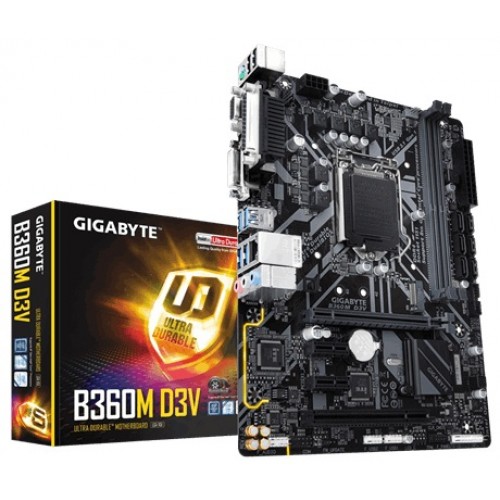

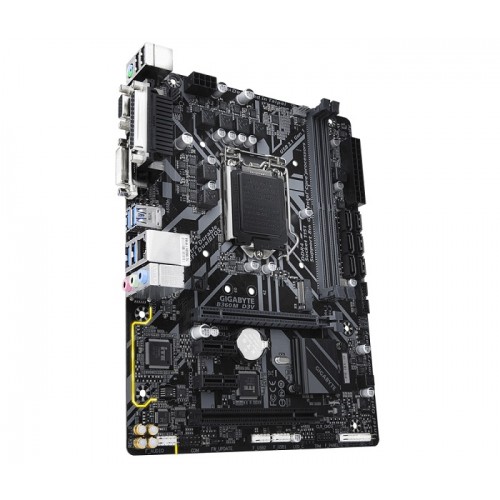

Gigabyte B360M D3V 8th Gen Motherboard

Basic Features

Model: Gigabyte B360M D3V
Intel B360 Express Chipset
Supports 8th Gen Intel Core i3, i5 & i7 Processors
RAM Slot: 2 x DDR4 DIMM
PCI Slot: 4 x PCI Express

৳ 7,500.00

Out of stock

SKU: 23680 Category: Motherboard Tags: Gigabyte, GIGABYTE (Intel), Motherboard

Description

Specification

Basic Information
Supported CPU	Support for 8th Generation Intel® Core i7 processors/Intel® Core i5 processors/ Intel® Core i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU
Chipset	Intel® B360 Express Chipset
BIOS	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for Dual BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 18.5cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x PCI slot
M.2 Socket	1 x M.2 Socket 3 connector
Memory
Type	2 x DDR4 DIMM sockets supporting
Slots	Dual channel memory architecture
Supported Memory	Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core i7/i5 processor.
Maximum Memory	32 GB
Graphics
Graphics	1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter.
Max Shared Memory	1GB
Connector & Ports

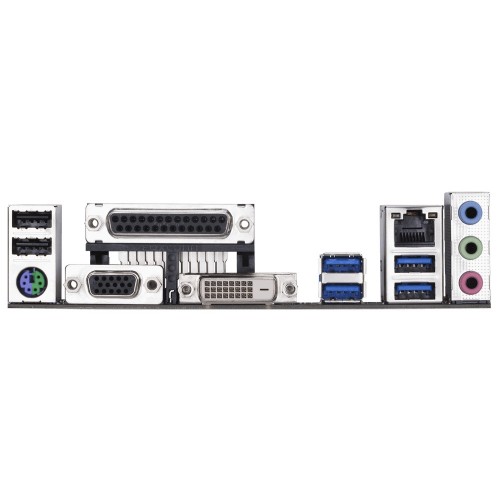

USB (s)	6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. Intel® Optane Memory Ready
Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
Warranty Information
Manufacturing Warranty	03 years
