Gigabyte B470I AORUS PRO AX Intel 10th and 11th Gen Mini ITX Motherboard

Basic Features

Model: B470I AORUS PRO AX
Supports 11th and 10th Gen Intel Core Processors
Direct 5+1 Phases Digital VRM
Blazing Fast Dual LAN 2.5GbE LAN
Extended MOSFET Heatsink

৳ 0.00

Out of stock

SKU: 23677 Category: Motherboard Tags: Gigabyte, GIGABYTE (Intel), Motherboard

Description

Specification

Basic Information
Supported CPU	11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Chipset	Intel B470 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe x4/x2 SSD support) (M2P_SB) 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/ 2280 PCIe x4/x2 SSD support) (M2Q_SB)
Memory
Type	DDR4
Slots	2 x DIMM
Supported Memory	Intel Core i9/ i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	64 GB (32 GB single DIMM capacity)
Graphics
Graphics	Integrated Graphics Processor + PARADE PS175 chip: 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz * Support for HDMI 2.0 version, HDCP 2.3, and HDR. Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096 x 2304 @60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Max Shared Memory	512 MB
Connector & Ports
HDMI	Integrated Graphics Processor + PARADE PS175 chip: 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz
Display Port (s)	1 x DisplayPort, supporting a maximum resolution of 4096 x 2304 @60 Hz

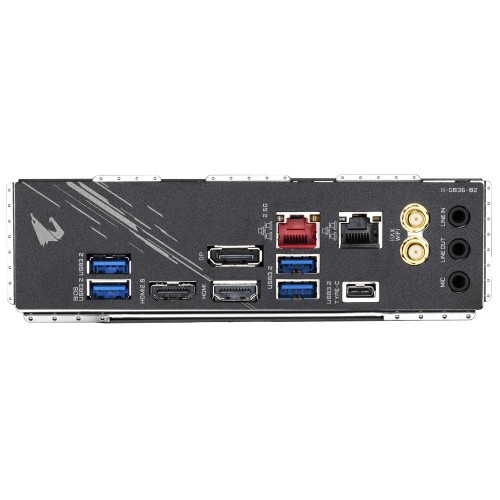

USB (s)	Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 1 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/ 1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset + 1 USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel
LAN Port (s)	1 x Intel 2.5GbE LAN chip (2.5 Gbit/ 1 Gbit/ 100 Mbit) (LAN2) 1 x Intel GbE LAN chip (1 Gbit/ 100 Mbit) (LAN1)
Wireless Communication module	Intel Wi-Fi 6 AX201 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.1 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe x4/x2 SSD support) (M2P_SB) 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/ 2280 PCIe x4/x2 SSD support) (M2Q_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
Audio	Realtek ALC1220-VB codec High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper 1 x chassis intrusion header 1 x Q-Flash Plus button
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Warranty Information
Manufacturing Warranty	3 year
Others
Special Features	Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
