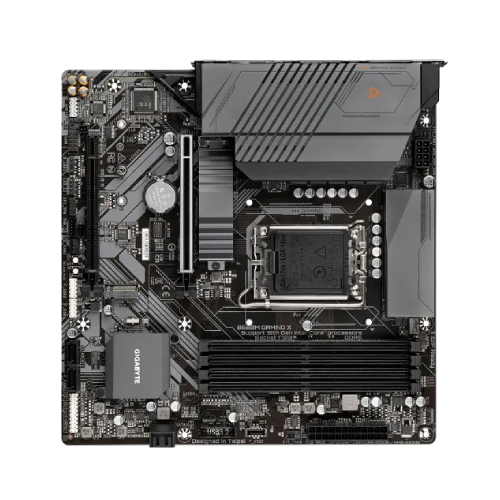

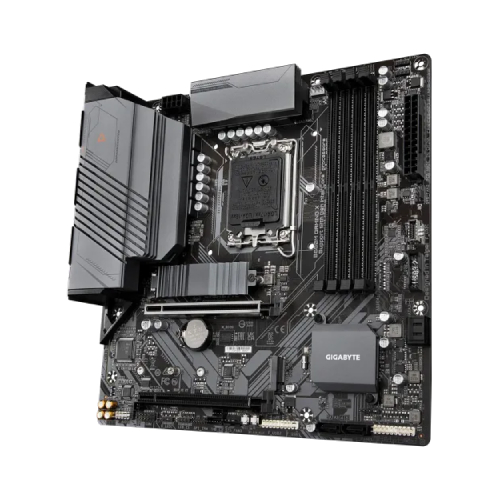

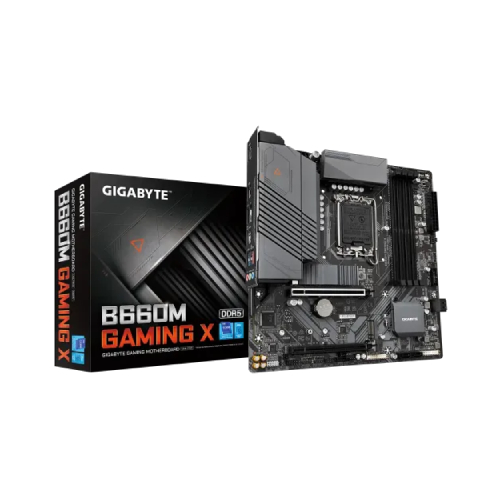

GIGABYTE B660M GAMING X DDR5 12th Gen Micro-ATX Motherboard

Basic Features

Model: B660M GAMING X DDR5
LGA1700 socket support 12th Gen Intel Series Processors
Supported RAM: 4x DDR5, Max 192GB 5600(OC)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

৳ 20,200.00

Out of stock

SKU: 40845 Categories: Component, GIGABYTE (Intel), Motherboard Tags: B660M GAMING X DDR5, Gigabyte, Motherboard

Description

Specification

Basic Information
Supported CPU	LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processor L3 cache varies with CPU
Chipset	Intel B660 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Expansion Slots
PCI	1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	Support for DDR5 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	Up to 192 GB (48 GB single DIMM capacity)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
Connector & Ports
HDMI	1 x HDMI 2.1 port
Display Port (s)	1 x DisplayPort
USB (s)	Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
RAID	Support for RAID 0, RAID 1, RAID 5, and RAID 10
Audio	1 x front panel audio header

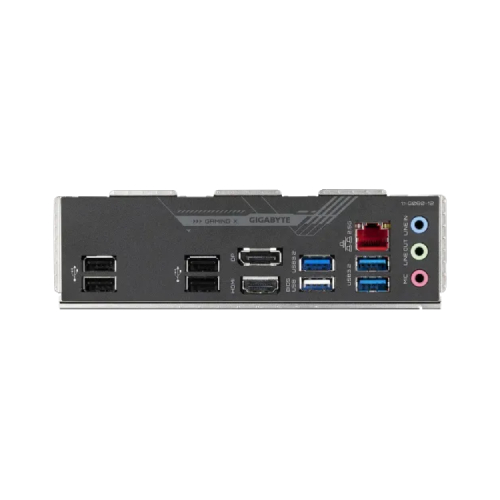

Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumperBack Panel Connectors 3 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 1 x HDMI 2.1 port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features	Support for APP Center @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty	3 Years Warranty
