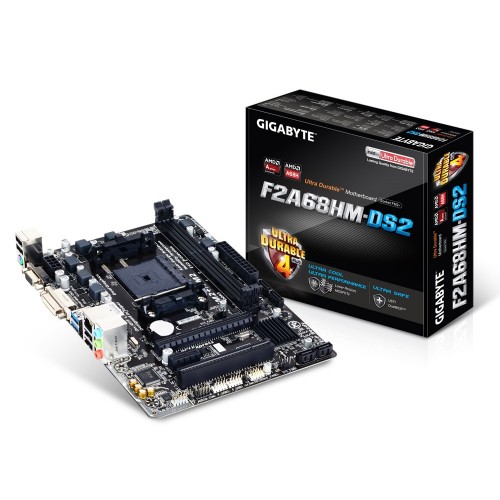

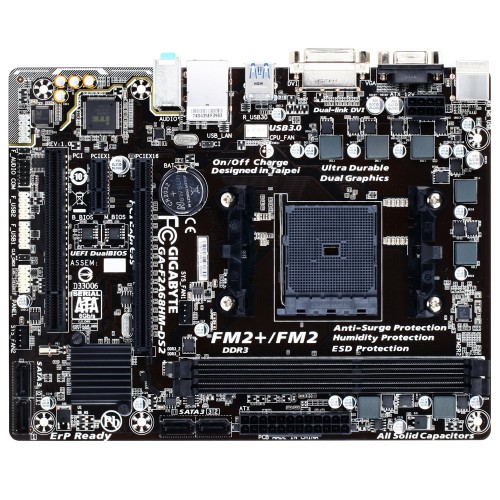

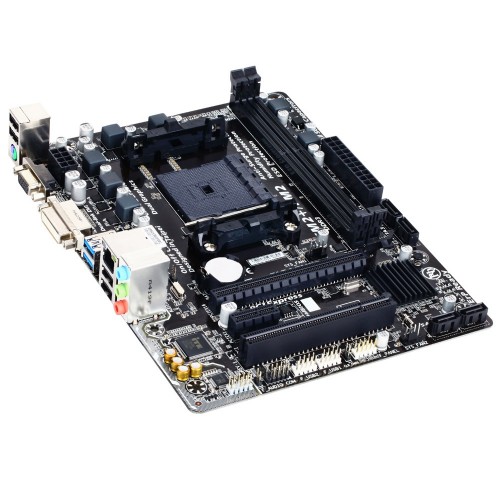

GIGABYTE GA-F2A68HM-DS2 Ultra Durable 4 Plus AMD FM2 Socket Motherboard

Basic Features

Model: GIGABYTE GA-F2A68HM-DS2
Socket FM2+ supports AMD FM2+/FM2 A-series APU
GIGABYTE UEFI DualBIOS
All solid capacitors design
Native USB 3.0 and SATA3 ports

৳ 4,500.00

Out of stock

SKU: 24467 Category: Motherboard Tags: Gigabyte, GIGABYTE (AMD), Motherboard

Description

Specification

Basic Information
Supported CPU	AMD A series processors AMD Athlon series processors
Chipset	AMD A68H
BIOS	2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 22.6cm x 17.4cm
Expansion Slots
PCI	x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) 1 x PCI slot
Memory
Type	Dual channel memory architecture
Slots	2 x DDR3 DIMM
Supported Memory	Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules Support for AMD Memory Profile (AMP)/Extreme Memory Profile (XMP) memory modules
Maximum Memory	64GB
Graphics
Graphics	1 x D-Sub port, supporting a maximum resolution of 1920×1200 1 x DVI-D port, supporting a maximum resolution of 2560×1600 Multi-Graphics Technology: Support for AMD Dual Graphics technology Support for AMD Eyefinity technology
Max Shared Memory	2GB
Connector & Ports
D-Sub (s)	1 x D-Sub port, supporting a maximum resolution of 1920×1200
DVI-D (s)	1 x DVI-D port, supporting a maximum resolution of 2560×1600

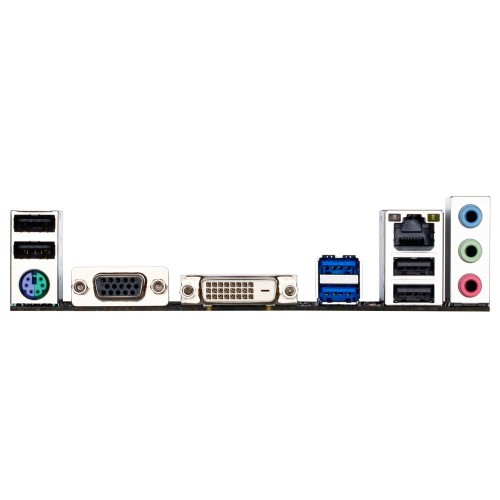

USB (s)	2 x USB 3.0/2.0 ports on the back panel 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage	Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 10, and JBOD
Audio	Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x APU fan header 2 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header
Warranty Information
Manufacturing Warranty	3 Years
Others
Special Features	Support for @BIOS Support for Q-Flash Support for Xpress Install Support for EasyTune Support for Smart Recovery 2 Support for ON/OFF Charge
