Gigabyte GA-G41M-Combo Motherboard

Basic Features

Model: Gigabyte GA-G41M-Combo
Support for an Intel Core 2 Extreme processor
Dual Channel DDR3, DDR2
Chipset: Intel G41 and Intel ICH7
1 x D-Sub port Graphics Slot

৳ 5,100.00

Out of stock

SKU: 23746 Category: Motherboard Tags: Gigabyte, GIGABYTE (Intel), Motherboard

Description

Specification

Basic Information
Supported CPU	– Support for an Intel Core 2 Extreme processor/ Intel Core 2 Quad processor/Intel Core 2 Duo processor/ Intel Pentium processor/Intel Celeron processor in the LGA775 package (Go to GIGABYTE’s website for the latest CPU support list.) – L2 cache varies with CPU
Chipset	North Bridge: Intel G41 Chipset
BIOS	– Use of licensed AWARD BIOS – Support for DualBIOS – PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b – Support for BIOS – Support for Xpress BIOS Rescue
Form Factor	Micro ATX Form Factor; 24.4cm x 21.0cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot 2 x PCI slots
Memory
Type	DDR3, DDR2:
Graphics
Max Shared Memory	DDR3: 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory (Note 1) Dual channel memory architecture Support for DDR3 1333(O.C.)/1066/800 MHz memory modules DDR2: 2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1) Dual channel memory architecture Support for DDR2 1066(O.C.)/800/667 MHz memory modules (Note: Mixed mode, populating DDR2 and DDR3 memory modules simulta- neously is not supported. Go to GIGABYTE’s website for the latest supported memory speeds and memory modules.)

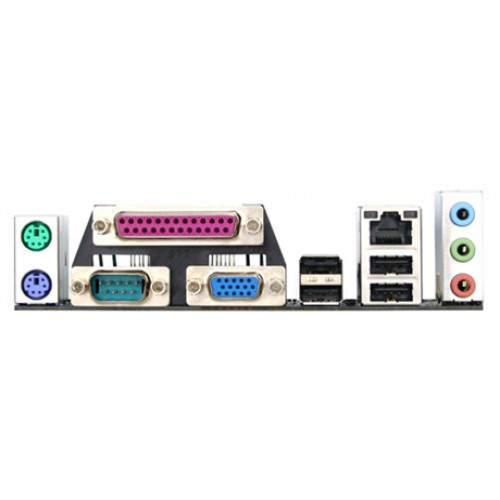

Connector & Ports
D-Sub (s)	1 x D-Sub port
USB (s)	USB 2.0 Ports 4 Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers) 2 x USB 2.0/1.1 headers 4 x USB 2.0/1.1 ports
LAN Port (s)	1 x Atheros AR8151 chip (10/100/1000 Mbit)
Supported Storage	1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices iTE IT8718F chip: 1 x floppy disk drive connector supporting up to 1 floppy disk drive
Audio	High Definition Audio 1 x front panel audio header 3 x audio jacks (Line In/Line Out/Microphone)
Internal I/O Ports	I/O Controller : iTE IT8718F 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x floppy disk drive connector 1 x IDE connector 4 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x CD In connector 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x clearing CMOS jumper
Warranty Information
Manufacturing Warranty	1 Year
