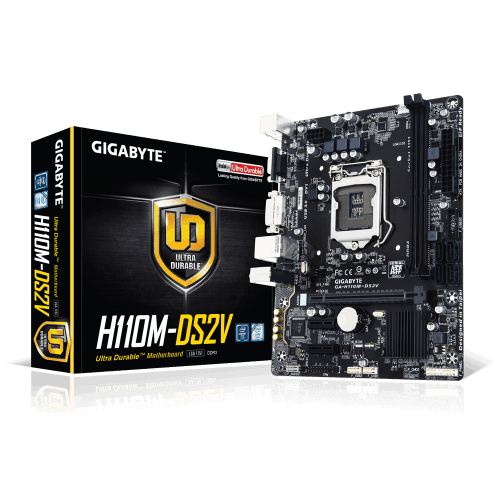

Gigabyte GA-H110M-DS2V Mini ATX Motherboard

Basic Features

Model: Gigabyte GA-H110M-DS2V
Intel H110 Express Chipset
Supports 7th / 6th Generation Intel Core Processors
2 x DDR4 DIMM, 1 x PCI Express x16 slot
1 x Trusted Platform Module (TPM) header

৳ 8,600.00

Out of stock

SKU: 8173 Category: Motherboard Tags: Gigabyte, GIGABYTE (Intel), Motherboard

Description

Specification

Motherboard
Chipset	Intel® H110 Express Chipset
Supported Processors	Support for 7th/6th Generation Intel® Core i7 processors/Intel® Core i5 processors/Intel® Core i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package * For 7th Generation Intel® Core processors support need to update the latest BIOS. L3 cache varies with CPU (Please refer “CPU Support List” for more information.)
Max Memory	2 x DDR4 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2400/2133 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules (Please refer “Memory Support List” for more information.)
Onboard Video	Integrated Graphics Processor- Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. Maximum shared memory of 1024 MB
Onboard Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
Onboard LAN	Realtek® GbE LAN chip (10/100/1000 Mbit)
Warranty	3 Years
