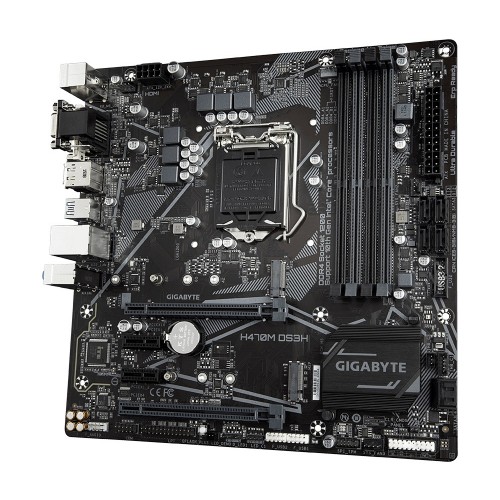

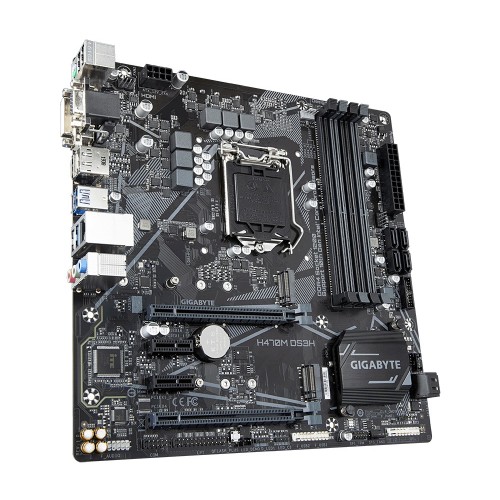

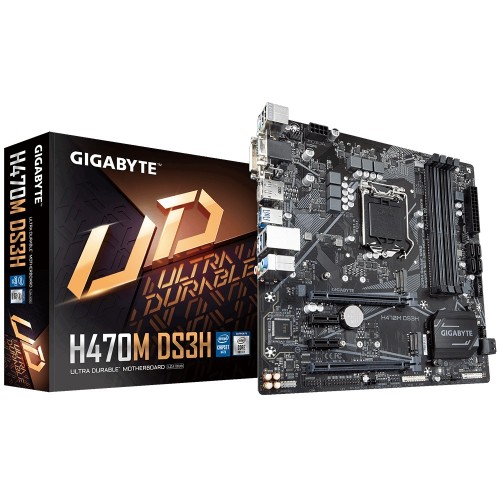

Gigabyte H470M DS3H 10th Gen Micro ATX Motherboard

Basic Features

Model: Gigabyte H470M DS3H
Intel Socket LGA1200 for 10th Gen Processors
Chipset: Intel H470 Express
Intel Optane Memory Ready
4 x DIMM, Max. 128GB DDR4

৳ 9,000.00

Out of stock

SKU: 9195 Category: Motherboard Tags: Gigabyte, GIGABYTE (Intel), Motherboard

Description

Specification

Basic Information
Supported CPU	Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package L3 cache varies with CPU
Chipset	Intel H470 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)
Memory
Type	Dual-channel architecture
Slots	4 x DDR4 DIMM
Supported Memory	Intel Core i9/ i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	128 GB
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz Support for up to 3 displays at the same time
Max Shared Memory	512MB
Connector & Ports
HDMI	1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
Display Port (s)	1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
D-Sub (s)	1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
DVI-D (s)	1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz

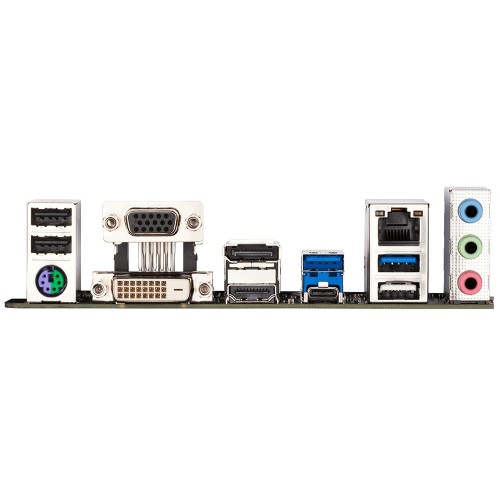

USB (s)	1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Intel GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
Audio	Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Warranty Information
Manufacturing Warranty	03 Years
Others
Special Features	Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Support for Windows 10 64-bit
