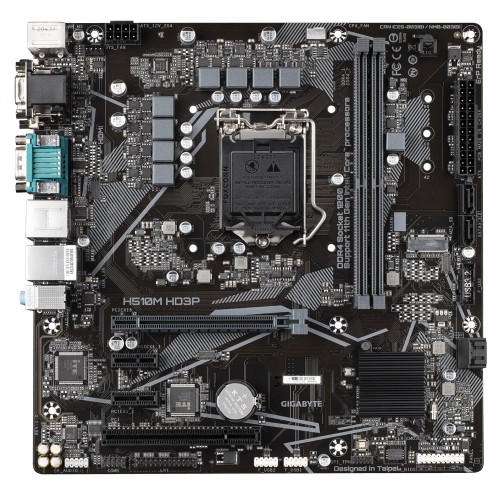

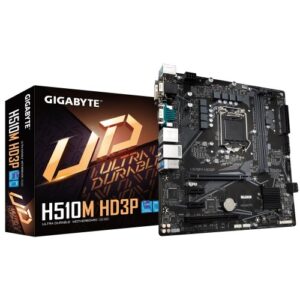

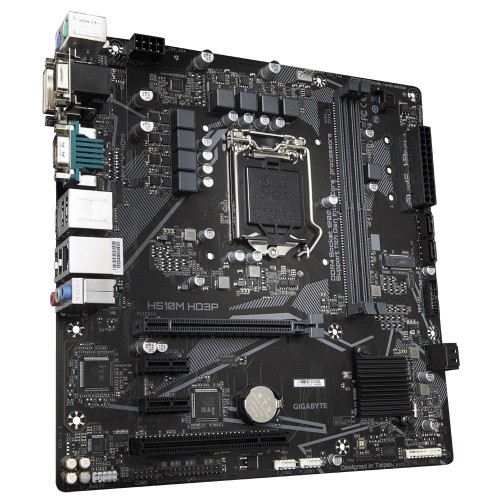

Gigabyte H510M HD3P 10th and11th Gen Micro ATX Motherboard

Basic Features

Model: H510M HD3P
Supports 11th and 10th Gen Intel Core Processors
Dual-Channel DDR4, 2 DIMMs
Ultra-Fast M.2 with PCIe Gen3 X4
4 Display Interfaces Support

৳ 9,300.00

Out of stock

SKU: 8142 Category: Motherboard Tags: Gigabyte, GIGABYTE (Intel), Motherboard

Description

Specification

Basic Information
Supported CPU	LGA1200 package: 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors L3 cache varies with CPU
Chipset	Intel H510 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) * Supported by 11th Generation processors only. 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 3.0 standard.)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SATA and PCIe 3.0 x2 SSD support)
Memory
Type	DDR4
Slots	2 x DIMM sockets
Supported Memory	11th Generation Intel Core i9/ i7/ i5 processors: Support for 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i9/ i7 processors: Support for 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors: Support for 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	64 GB (32 GB single DIMM capacity)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096 x 2304 @60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for up to 2 displays at the same time * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI ports, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. Support for up to 2 displays at the same time

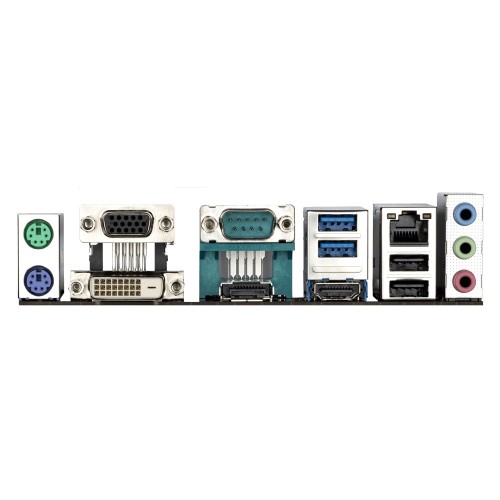

Connector & Ports
HDMI	1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz
Display Port (s)	1 x DisplayPort, supporting a maximum resolution of 4096 x 2304 @60 Hz
D-Sub (s)	1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz
DVI-D (s)	1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz
USB (s)	Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 port available through the internal USB headers)
LAN Port (s)	Intel GbE LAN chip (1 Gbps/ 100 Mbps)
Supported Storage	Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SATA and PCIe 3.0 x2 SSD support) 4 x SATA 6Gb/s connectors
Audio	Realtek Audio CODEC High Definition Audio 2/ 4/ 5.1/ 7.1-channel
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Warranty Information
Manufacturing Warranty	3 years
Others
Special Features	Support for APP Center @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
