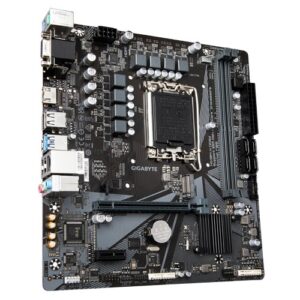

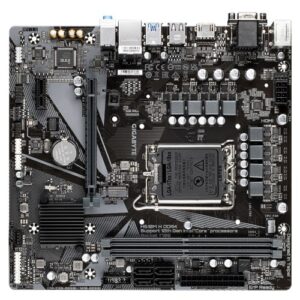

Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard

Basic Features

  • Model: H610M H DDR4
  • LGA1700 socket: Supports 12th Gen Intel Core Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Intel GbE LAN with cFosSpeed Internet Accelerator Software
  • NVMe PCIe 3.0 x4 M.2

৳ 9,600.00

Description

Specification

Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard

Basic Information
Supported CPU LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset Intel H610 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 3.0 standard.)
Memory
Type DDR4
Slots 2 x DDR DIMM sockets
Supported Memory 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Up to 64 GB (32 GB single DIMM capacity) of system memory
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports

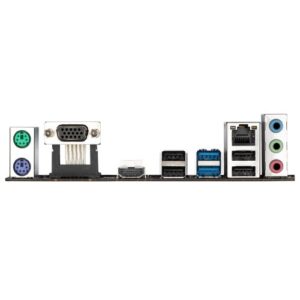

Connector & Ports
HDMI 1 x HDMI 2.0 port
D-Sub (s) 1 x D-Sub port
USB (s) Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

LAN Port (s) Intel GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Warranty Information
Manufacturing Warranty 3 years
Others
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Description

Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard

The Gigabyte H610M H DDR4 features LGA1700 socket Support for 12th Generation Intel Core, Pentium Gold, and Celeron Processors. It comes with Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs. It has a 6+1+1 Hybrid Digital VRM Design. Solid capacitors to improve transient response and minimize oscillation. It is equipped with Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It features solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. It has Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. It is designed with HDMI / D-Sub Ports for Multiple Displays. The Gigabyte H610M H DDR4 motherboard comes with 3 years of warranty.

What is the price of Gigabyte H610M H DDR4 12th Gen Motherboard in Bangladesh?

The latest price of Gigabyte H610M H DDR4 12th Gen Motherboard in Bangladesh is ৳9,600. You can buy the Gigabyte H610M H DDR4 12th Gen Motherboard at best price from our website or visit  our showroom.
