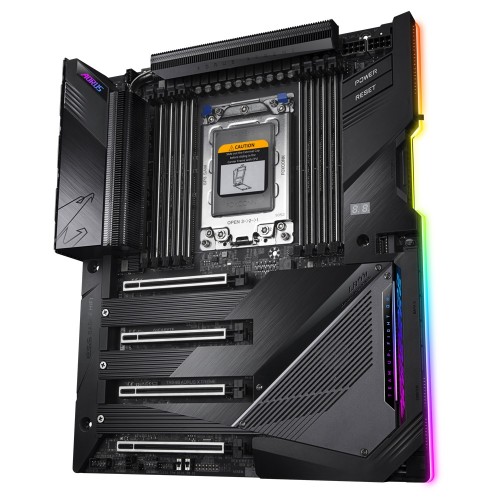

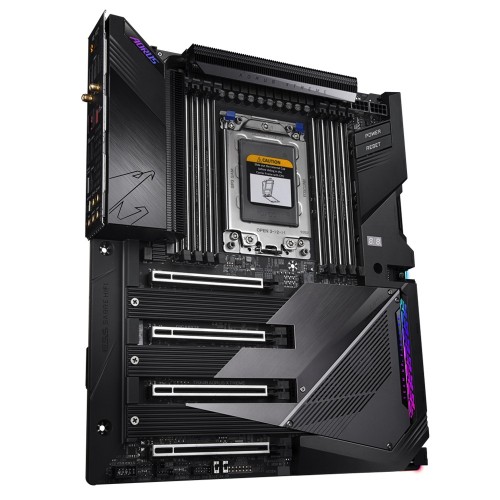

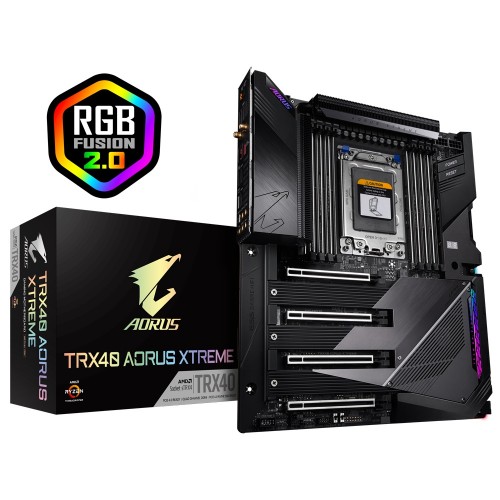

Gigabyte TRX40 AORUS Xtreme AMD XL-ATX Motherboard

Basic Features

Model: TRX40 AORUS Xtreme
Supports 3rd Gen AMD Ryzen Threadripper Processors
Intel WiFi 6 802.11ax 2T2R & BT 5
Exclusive AORUS Gen4 AIC Adaptor
16+3 Phases Infineon Digital VRM Solution

৳ 0.00

Out of stock

SKU: 23727 Category: Motherboard Tags: Gigabyte, GIGABYTE (AMD), Motherboard

Description

Specification

Basic Information
Supported CPU	Support 3rd Generation AMD Ryzen Threadripper processors
Chipset	AMD TRX40
BIOS	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	XL-ATX Form Factor; 32.5cm x 27.5cm
Expansion Slots
PCI	2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
M.2 Socket	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2280/ 22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/ 22110 SATA and PCIe 4.0 x4/ x2 SSD support) (M2P) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/ x2 SSD support) (M2C_SOCKET)
Memory
Type	DDR4
Slots	8 x DIMM
Supported Memory	Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Quad Channel memory architecture
Maximum Memory	256 GB (32 GB single DIMM capacity)
Graphics
Graphics	Support for AMD Quad-GPU CrossFire and 4-Way/ 3-Way/ 2-Way AMD CrossFire technologies Support for NVIDIA Quad-GPU SLI and 4-Way/ 3-Way/ 2-Way NVIDIA SLI technologies
Connector & Ports

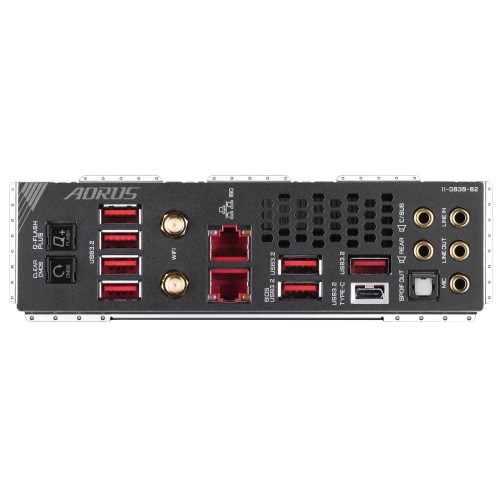

USB (s)	CPU: 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+1 USB 2.0 Hub: 4 x USB 2.0/ 1.1 ports available through the internal USB headers (with the included front USB header extention cable) Chipset+ASMedia USB 3.2 Gen 2 Controller: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
LAN Port (s)	Intel 10GbE LAN chip (10 Gbit/ 5 Gbit/ 2.5 Gbit/ 1 Gbit/ 100 Mbit), supporting 2 RJ-45 ports
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 4.0 x4/ x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2280/ 22110 SATA and PCIe 4.0 x4/ x2 SSD support) (M2Q) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/ 22110 SATA and PCIe 4.0 x4/ x2 SSD support) (M2P) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/ x2 SSD support) (M2C_SOCKET) 8 x SATA 6Gb/s connectors (SATA3 0~7) Support for RAID 0, RAID 1, and RAID 10 ASMedia SATA 6Gb/s Controller: 2 x SATA 6Gb/s connectors (SATA3 8, 9), supporting AHCI mode only
Audio	Realtek ALC4050H codec+Realtek ALC1220-VB codec (rear panel audio) Realtek ALC4050H codec+ESS SABRE9218 DAC (front panel audio) Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x OC_PEG power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 3 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 10 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 1 x USB 2.0/1.1 header 1 x GIGABYTE add-in card connector 1 x noise detection header 1 x power button 1 x reset button 2 x temperature sensor headers 2 x BIOS switches Voltage Measurement Points
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
Warranty Information
Manufacturing Warranty	3 Years
Others
Special Features	Wireless Communication module: Intel Wi-Fi 6 AX200 Wi-Fi 802.11a/ b/ g/ n/ ac/ ax, supporting 2.4/ 5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
