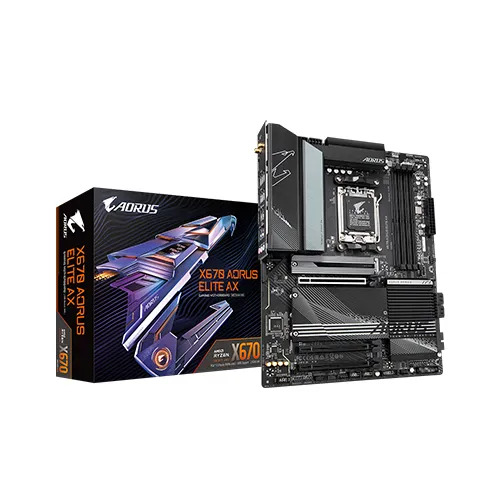

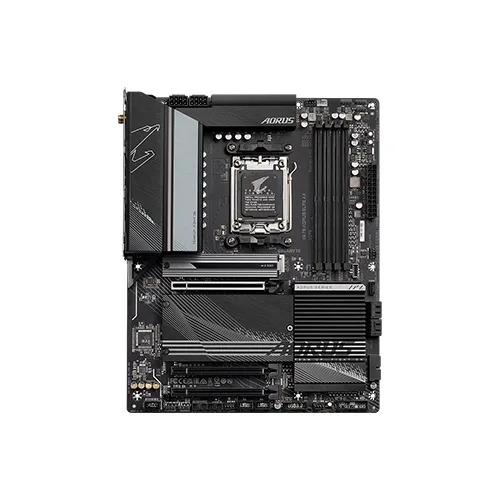

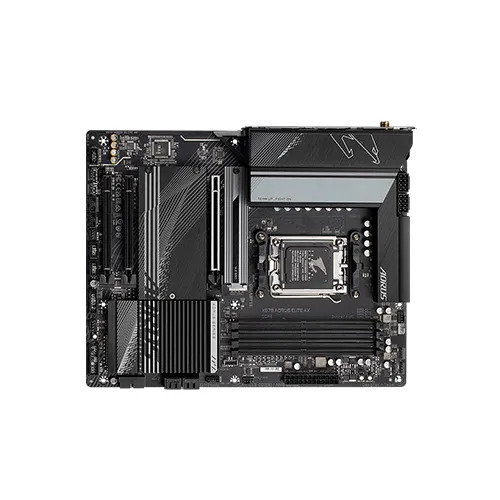

GIGABYTE X670 AORUS ELITE AX ATX AMD MOTHERBOARD

Brand:GIGABYTE
Model:X670 AORUS ELITE AX
Warranty:3 Years

৳ 41,500.00

Out of stock

SKU: 38607 Categories: Component, GIGABYTE (AMD), Motherboard Tags: Gigabyte, GIGABYTE Motherboard bd price 2022, Motherboard, X670 AORUS ELITE

Description

Specifications

Motherboard
Supported CPU	AMD Socket AM5, Support For: AMD Ryzen™ 7000 Series Processors
Chipset	AMD X670
Memory	Support For DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/S Memory Modules 4 X DDR5 DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For AMD EXtended Profiles For Overclocking (AMD EXPO™) And Extreme Memory Profile (XMP) Memory Modules
Graphics	Integrated Graphics Processor: 1 X HDMI Port, Supporting A Maximum Resolution Of 4096×2160@60 Hz
Slots	1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X16 (PCIEX16) * For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X4 (PCIEX4) 1 X PCI Express X16 Slot, Supporting PCIe 3.0 And Running At X2 (PCIEX2)
Supported Storage	1 X M.2 Connector (Socket 3, M Key, Type 25110/2280 PCIe 5.0(Note) X4/X2 SSD Support) (M2A_CPU) (Note) Actual Support May Vary By CPU. 1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2B_CPU) 2 X M.2 Connectors (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2C_SB, M2D_SB) 4 X SATA 6Gb/S Connectors
Bluetooth	BLUETOOTH 5.2
LAN	Realtek 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps)
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel
USB Port	1 X Q-Flash Plus Button 2 X SMA Antenna Connectors (2T2R) 1 X HDMI Port 6 X USB 3.2 Gen 1 Ports 4 X USB 2.0/1.1 Ports 2 X USB 3.2 Gen 2 Type-A Ports (Red) 1 X USB Type-C® Port, With USB 3.2 Gen 2×2 Support 1 X RJ-45 Port 3 X Audio Jacks
Internal I/O Ports	1 X 24-Pin ATX Main Power Connector 2 X 8-Pin ATX 12V Power Connectors 1 X CPU Fan Header 1 X Water Cooling CPU Fan Header 3 X System Fan Headers 1 X CPU Cooler LED Strip/RGB LED Strip Header 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 4 X SATA 6Gb/S Connectors 4 X M.2 Socket 3 Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C® Header, With USB 3.2 Gen 2×2 Support 2 X USB 3.2 Gen 1 Headers 2 X USB 2.0/1.1 Headers 1 X THB_U4 Add-In Card Connector 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) 1 X Power Button 1 X Reset Button 1 X Clear CMOS Button 1 X Reset Jumper 1 X Clear CMOS Jumper

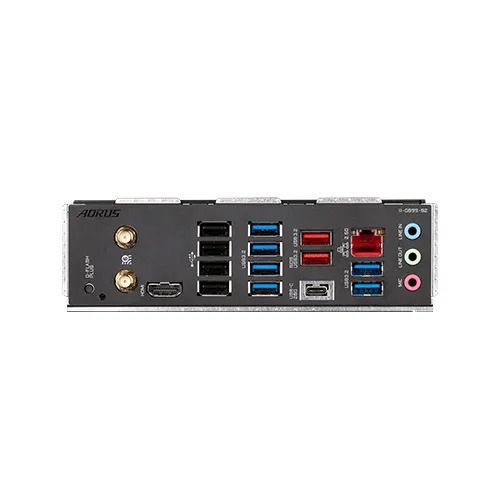

External I/O Ports	1 X Q-Flash Plus Button 2 X SMA Antenna Connectors (2T2R) 1 X HDMI Port 6 X USB 3.2 Gen 1 Ports 4 X USB 2.0/1.1 Ports 2 X USB 3.2 Gen 2 Type-A Ports (Red) 1 X USB Type-C® Port, With USB 3.2 Gen 2×2 Support 1 X RJ-45 Port 3 X Audio Jacks
WiFi	WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands
DIMENSIONS	30.5cm X 24.4cm
Form Factor	ATX Form Factor
BIOS	1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Warranty	3 Years

Description

GIGABYTE X670 AORUS ELITE AX Motherboard

With Fast Moving Of Technology Changes, GIGABYTE Follows With The Latest Trends And Provides Customers With Advanced Features And Latest Technologies. GIGABYTE Motherboards Come With Upgraded Power Solution, Latest Storage Standards And Outstanding Connectivity To Enable Optimize Performance For Gaming Needs.GIGABYTE Motherboards’ Un-Throttled Performance Is Guaranteed By Innovative And Optimized Thermal Design To Ensure The Best CPU, Chipset, SSD Stability And Low Temperatures Under Full Load Application And Gaming Performance.GIGABYTE Motherboards Enable The Ultimate Connection Experience With Blazing Data-Transfer Speeds Through The Next Generation Network, Storage, And WIFI Connectivity.GIGABYTE Motherboards Bundle Several Useful And Intuitive Software To Help Users To Control Every Aspect Of Motherboard And Provide Customizable Lighting Effect With Outstanding Aesthetics To Fit Your Unique Personality.GIGABYTE Ultra Durable™ Design Provides Product Durability And High-Quality Manufacturing Process. GIGABYTE Motherboards Use The Best Components And Reinforce Every Slots To Make Each Of Them Solid And Durable.
