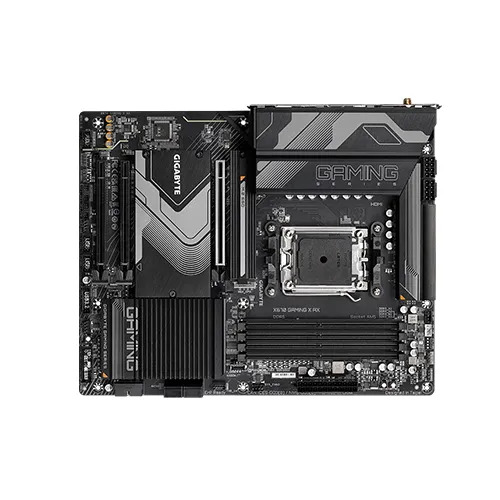

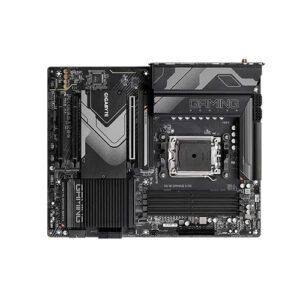

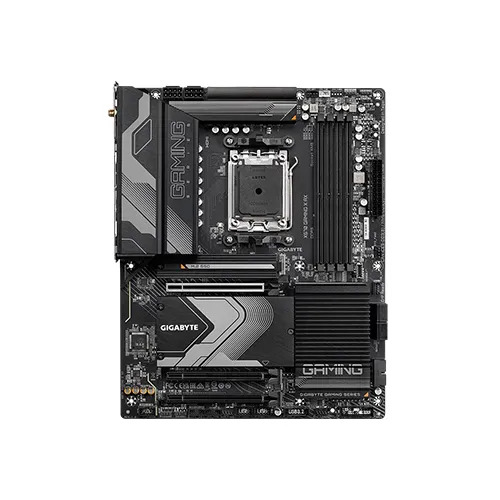

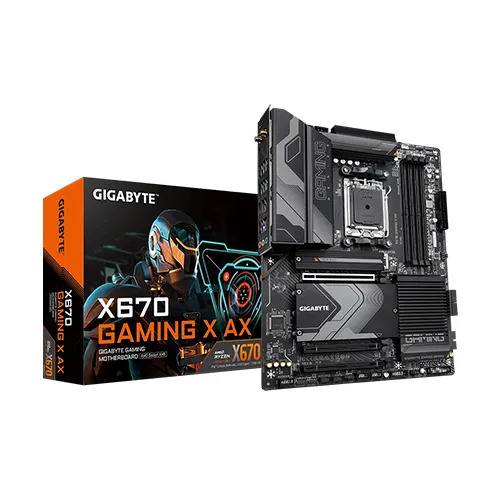

GIGABYTE X670 GAMING X AX AMD MOTHERBOARD

GIGABYTE X670 GAMING X AX AMD MOTHERBOARD

Brand:GIGABYTE
Model:X670 GAMING X
Warranty:3 years

৳ 34,500.00

Out of stock

SKU: 38612 Categories: Component, GIGABYTE (AMD), Motherboard Tags: Component, Gigabyte, GIGABYTE Motherboard bd price 2022, Motherboard, X670 GAMING X AX

Description

Specifications

Motherboard
Supported CPU	AMD Socket AM5, Support For: AMD Ryzen™ 7000 Series Processors
Chipset	AMD X670
Memory	Support For DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/S Memory Modules 4 X DDR5 DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For AMD EXtended Profiles For Overclocking (AMD EXPO™) And Extreme Memory Profile (XMP) Memory Modules
Graphics	Integrated Graphics Processor: 1 X HDMI Port, Supporting A Maximum Resolution Of 4096×2160@60 Hz * Support For HDMI 2.1 Version And HDCP 2.3.
Slots	1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X16 (PCIEX16) * For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X4 (PCIEX4) 1 X PCI Express X16 Slot, Supporting PCIe 3.0 And Running At X2 (PCIEX2)
Supported Storage	1 X M.2 Connector (Socket 3, M Key, Type 25110/2280 PCIe 5.0(Note) X4/X2 SSD Support) (M2A_CPU) (Note) Actual Support May Vary By CPU. 1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2B_CPU) 2 X M.2 Connectors (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2C_SB, M2D_SB) 4 X SATA 6Gb/S Connectors
Bluetooth	BLUETOOTH 5.2
LAN	Realtek® 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps)
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel
USB Port	2 X USB 3.2 Gen 2 Type-A Ports (Red) On The Back Panel 2 X USB 3.2 Gen 1 Ports On The Back Panel 4 X USB 2.0/1.1 Ports On The Back Panel 2 X USB Type-C® Ports, With USB 3.2 Gen 2×2 Support (1 Port On The Back Panel, 1 Port Available Through The Internal USB Header) 8 X USB 3.2 Gen 1 Ports (4 Ports On The Back Panel, 4 Ports Available Through The Internal USB Headers) 4 X USB 2.0/1.1 Ports Available Through The Internal USB Headers
Internal I/O Ports	1 X 24-Pin ATX Main Power Connector 2 X 8-Pin ATX 12V Power Connectors 1 X CPU Fan Header 1 X Water Cooling CPU Fan Header 3 X System Fan Headers 1 X CPU Cooler LED Strip/RGB LED Strip Header 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 4 X SATA 6Gb/S Connectors 4 X M.2 Socket 3 Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C® Header, With USB 3.2 Gen 2×2 Support 2 X USB 3.2 Gen 1 Headers 2 X USB 2.0/1.1 Headers 1 X THB_U4 Add-In Card Connector 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) 1 X Power Button 1 X Reset Button 1 X Clear CMOS Button 1 X Reset Jumper 1 X Clear CMOS Jumper

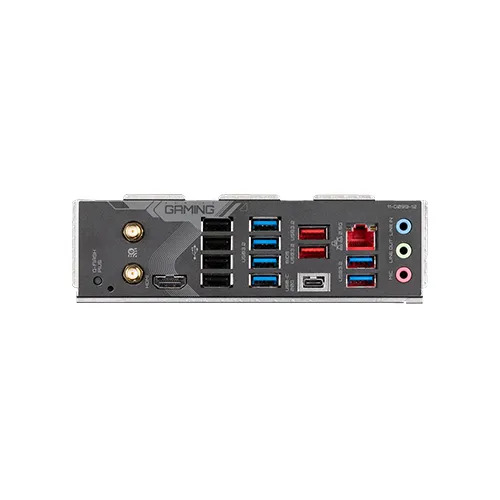

External I/O Ports	1 X Q-Flash Plus Button 2 X SMA Antenna Connectors (2T2R) 1 X HDMI Port 6 X USB 3.2 Gen 1 Ports 4 X USB 2.0/1.1 Ports 2 X USB 3.2 Gen 2 Type-A Ports (Red) 1 X USB Type-C® Port, With USB 3.2 Gen 2×2 Support 1 X RJ-45 Port 3 X Audio Jacks
WiFi	WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands
DIMENSIONS	ATX Form Factor
Form Factor	ATX Form Factor
BIOS	1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Warranty	3 Years

Description

Gigabyte X670 GAMING X AX Motherboard In Bangladesh

The Gigabyte X670 GAMING X AX Motherboard Is Ideal For Laying The Foundation For A State-Of-The-Art Gaming Setup. It Is Designed To Support An AMD Ryzen 7000 Processor On AMD AM5 Socket And Supports DDR5, PCI-Express 5.0 For SSDs And PCIe 4.0 For Graphics Cards.The High Frequencies Of AMD Ryzen Zen 4 Processors Are A Real Advantage In Gaming. Choose The Right Components And Design A High-Performance Gaming PC That’s Latency-Free And Ready To Go When You Are. Gain An Edge Over Your Opponents And Reach New Heights With AMD Ryzen 7000 Processors And AMD AM5 Motherboards.

AMD Ryzen 7000 Processors Deliver Performance In All Areas. They’ll Help You Create Faster, Achieve Your Goals Faster, And Save Time All The Time. Whether It’s 3D Rendering Or Exporting Large Video Files, Design, Deliver And Get The Job Done With Speed And PCIe 5.0 Storage, Multiple Processing Threads And Dedicated Video Accelerators.
