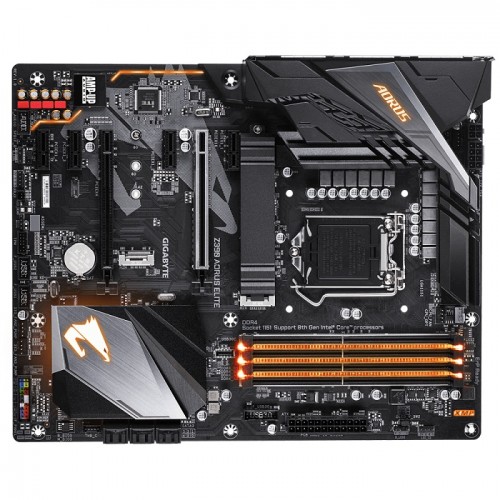

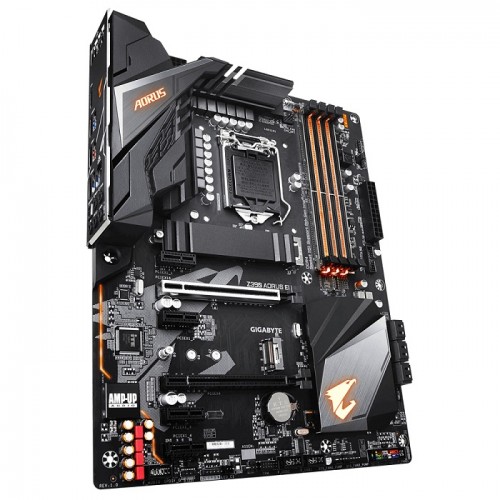

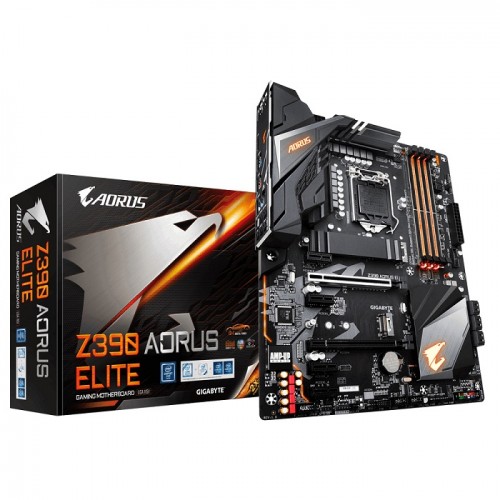

Gigabyte Z390 Aorus Elite 9th Gen Motherboard

Basic Features

Model: Gigabyte Z390 Aorus Elite
Supports 9th and 8th Gen Intel Processors
Intel® Z390 Express Chipset
Dual Channel Non-ECC Unbuffered DDR4
Front USB 3.1 Gen 2 Type-C Header

৳ 18,100.00

Out of stock

SKU: 23672 Category: Motherboard Tags: Gigabyte, GIGABYTE (Intel), Motherboard

Description

Specification

Basic Information
Supported CPU	Support for 9th and 8th Generation Intel® Core i9 processors/Intel® Core i7 processors/Intel® Core i5 processors/Intel® Core i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
Chipset	Intel® Z390 Express Chipset
BIOS	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Expansion Slots
PCI	– 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. – 1 x PCI Express x16 slot, running at x4 (PCIEX4) – 4 x PCI Express x1 slots * The PCIEX4 slot shares bandwidth with the PCIEX1_3 slot. When the PCIEX1_3 slot is populated, the PCIEX4 slot operates at up to x2 mode.
M.2 Socket	2 x M.2 Socket 3 connectors
Memory
Type	4 x DDR4 DIMM sockets
Slots	Dual channel memory architecture
Supported Memory	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	64 GB
Graphics
Graphics	1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2.
Max Shared Memory	1 GB

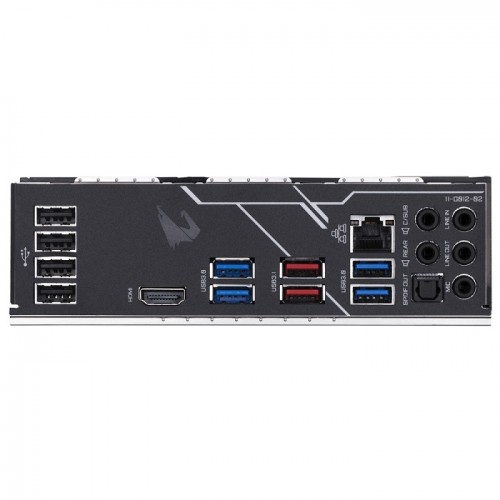

Connector & Ports
HDMI	1 x HDMI port
USB (s)	4 x USB 2.0/1.1 ports 4 x USB 3.1 Gen 1 ports 2 x USB 3.1 Gen 2 Type-A ports (red)
LAN Port (s)	Intel® GbE LAN chip (10/100/1000 Mbit)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
Audio	5 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan/water cooling pump headers 2 x digital LED strip headers 2 x digital LED strip power select jumpers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x USB Type-C port, with USB 3.1 Gen 1 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 1 x Thunderbolt add-in card connector 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
Warranty Information
Manufacturing Warranty	03 Years
