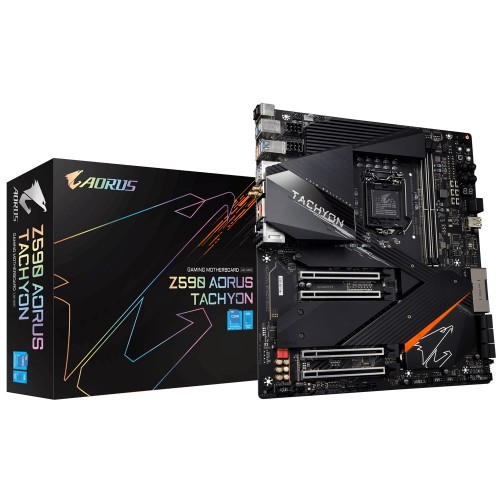

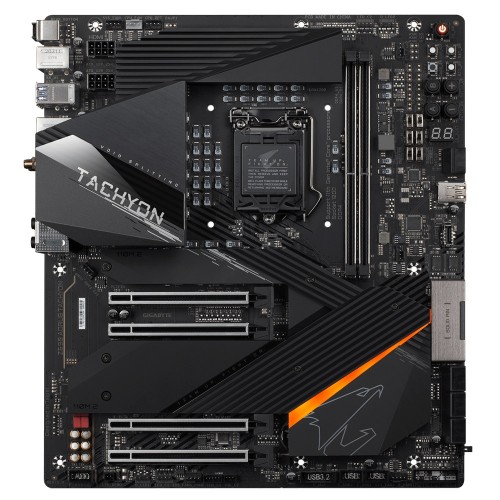

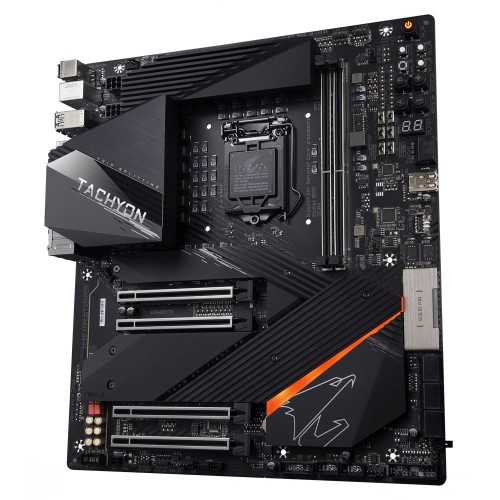

Gigabyte Z590 Aorus TACHYON 10th and 11th Gen E-ATX Motherboard

Basic Features

Model: Z590 Aorus TACHYON
Supports Intel 10th & 11th Gen Processors
Direct 12 Phases Digital VRM
Blazing Fast Intel 2.5GbE LAN
Triple Ultra-Fast NVMe SSD Slots

৳ 0.00

Out of stock

SKU: 23794 Category: Motherboard Tags: Gigabyte, GIGABYTE (AMD), Motherboard

Description

Specification

Basic Information
Supported CPU	11th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors 10th Generation Intel Core i9 processors/ Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Chipset	Intel Z590 Express Chipset
BIOS	2 x 256 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	E-ATX Form Factor; 30.5cm x 27cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x8 (PCIEX8) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x16 slot, running at x1 (PCIEX1)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)(M2M_SB)
Memory
Type	DDR4
Slots	2 x DIMM sockets
Supported Memory	11th Generation Intel Core i9/ i7/ i5 processors: Support for DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i9/ i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i5/ i3/ Pentium/Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	64 GB (32 GB single DIMM capacity)
Graphics
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Connector & Ports
HDMI	1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

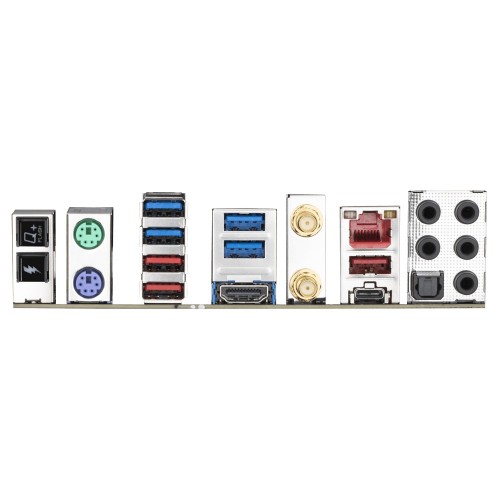

USB (s)	Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2×2 support 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers ASMedia USB 3.2 Gen 2 controller: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) onboard Chipset+Realtek USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel
LAN Port (s)	Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)(M2M_SB) 6 x SATA 6Gb/s connectors (SATA3 0~5) Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready ASMedia ASM1061 chip: 2 x SATA 6Gb/s connectors (SATA3 6,7), supporting IDE/AHCI mode only
Audio	Realtek ALC1220-VB codec Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt add-in card connectors 1 x Clear CMOS jumper 1 x power button (PW_SW) 1 x reset button (RST_SW) 1 x Clear CMOS button (CMOS_SW) 2 x BIOS switches (BIOS_SW)(SB) 1 x Cold Reset button (RTY_SW) 1 x Protection Mode button (LIMP_MODE) 1 x CPU Ratio up button (RATIO_UP) 1 x CPU Ratio down button (RATIO_DW) 1 x Profile A button (PROFILE_A) 1 x Profile B button (PROFILE_B) 1 x OC Trigger switch (TGR) 1 x LN2 Mode switch (LN2_SW) 1 x Enhanced LN2 Mode switch (LN2_OFFSET) 1 x Reserved switch (RSV_SW)
TPM (Trusted Platform Module )	N/A
Warranty Information
Manufacturing Warranty	03 years
Others
Special Features	Wireless Communication module: Intel Wi-Fi 6E AX210 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
