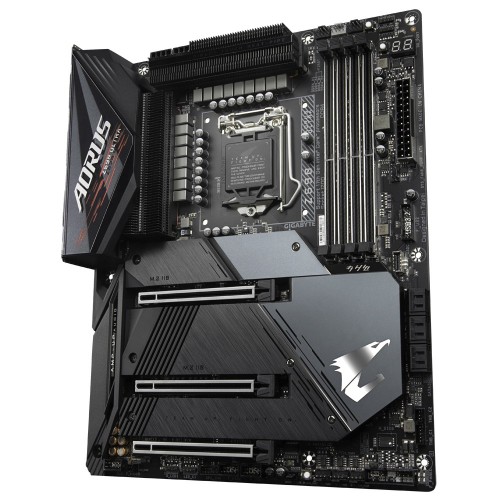

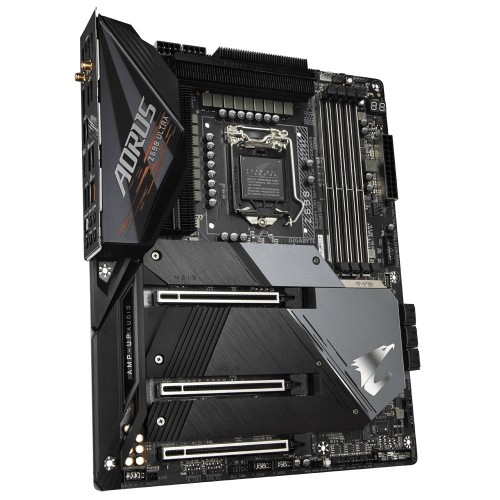

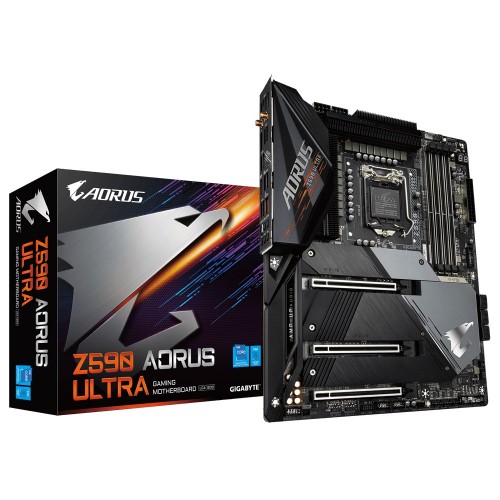

Gigabyte Z590 Aorus Ultra 10th & 11th Gen ATX Motherboard

Basic Features

Model: Z590 Aorus Ultra
Supports 10th and 11th Gen Intel Core Processors
Intel Wi-Fi 6 802.11ax 2T2R
Triple Ultra-Fast SSD Slots
16+1 Phases Digital VRM

৳ 0.00

Out of stock

SKU: 23721 Category: Motherboard Tags: Gigabyte, GIGABYTE (Intel), Motherboard

Description

Specification

Basic Information
Supported CPU	11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Chipset	Intel Z590 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x8 (PCIEX8) 1 x PCI Express x16 slot, running at x4 (PCIEX4)
M.2 Socket	CPU: 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 PCIe 4.0 x4/ x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 PCIe 3.0 x4/ x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2M_SB)
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	11th Generation Intel Core i9/ i7/ i5 processors: Support 5400 (O.C)/ DDR4 5333 (O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 10th Generation Intel Core i9/ i7 processors 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors: 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	128 GB (32 GB single DIMM capacity)
Graphics
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire Technologies
Connector & Ports
Display Port (s)	1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz

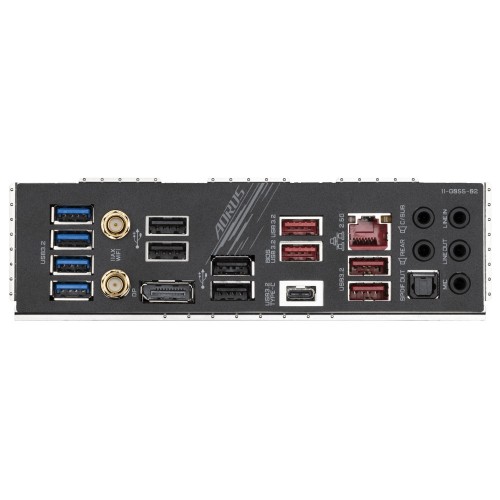

USB (s)	Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2×2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset + USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/ 1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Intel 2.5GbE LAN chip (2.5 Gbit/ 1 Gbit/ 100 Mbit)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 PCIe 4.0 x4/ x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 PCIe 3.0 x4/ x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors
Audio	Realtek ALC4080 codec Support for DTS:X Ultra High Definition Audio 2/ 4/ 5.1/ 7.1-channel Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/ water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/ 1.1 headers 2 x Thunderbolt add-in card connectors 1 x noise detection header 1 x reset button 1 x Clear CMOS button 1 x Q-Flash Plus button 1 x Clear CMOS jumper 2 x temperature sensor headers
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/ GC-TPM2.0 SPI 2.0 module only)
Warranty Information
Manufacturing Warranty	03 Years
Others
Special Features	Wireless Communication module: Intel Wi-Fi 6 AX200 WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.1 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
