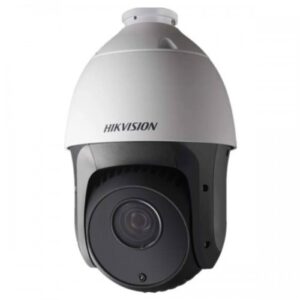

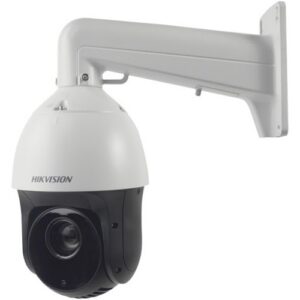

Hikvision DS-2DE5225IW-AE 2MP Network 265+ Comprasion IR PTZ Dome Camera

Basic Features

  • Model: DS-2DE5225IW-AE 2MP
  • 1/2.8” Progressive Scan CMOS
  • 25x Optical Zoom
  • Up to 150m IR Distance
  • 120dB WDR Technology

43,500.00

Description

Specification

General
Dimensions ? 208 mm × 345 mm
Weight 3.3Kg
Pan/Tilt/Rotation Movement Range (Pan): 360° endless
Movement Range (Tilt): From -15° to 90° (auto-flip)
Tilt Speed: Configurable, from 0.1°/s to 80°/s,Preset Speed: 80°/s
Operating Conditions -30°C to 65°C (-22°F to 149°F)
Power Supply 24 VAC and Hi-PoE,Max.: 30 W (Max. 10 W for IR)
Camera
Image Sensor 1/2.8″ progressive scan CMOS
Electronic Shutter Speed 50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
Minimum Illumination Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001Lux @(F1.6, AGC ON),0 Lux with IR
IR Distance 150 m
Lens
Focal Length 4.8 mm to 120 mm
Max Aperture F1.6 to F3.5
Angle of View Horizontal field of view: 57.6° to 2.5° (Wide-Tele)
Vertical field of view: 34.4° to 1.4° (Wide-Tele)
Diagonal field of view: 64.5° to 2.9° (Wide-Tele)
Video
Resolution 1920 × 1080
Frame Rate 50Hz: 25fps
Video Output 32 Kbps to 16384 Kbps
Day/Night IR Cut Filter
Interface
Audio Interface Alarm Output: 1-ch alarm output
Alarm Input: 2-ch alarm input
Audio Input: 1-ch audio input, 2 to 2.4 V[p-p], 1 K? ± 10%
Audio Output: 1-ch audio output, line level, impedance: 600 ?
Video Interface Network Interface: 1 RJ45 10 M/100 M Ethernet, Hi-PoE
Special Features
Features Basic Event Detection:
Motion Detection, Video Tampering Detection, Exception

Smart Detection:
Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection

Smart Record:
ANR (Automatic Network Replenishment), Dual-VCA

ROI:
Main stream, sub-stream, and third stream respectively support four fixed areas.

Warranty
Warranty 1 Year
Brand

Brand

Hikvision
