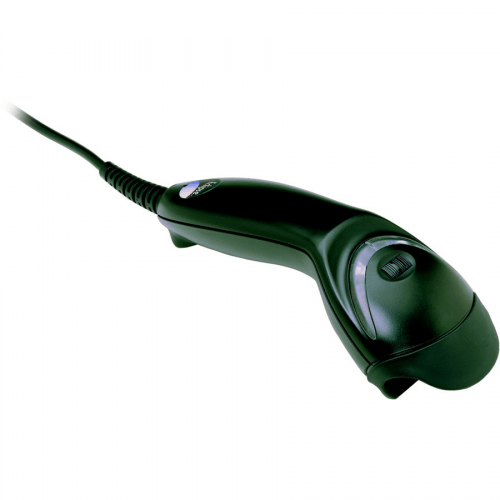

Honeywell Eclipse 5145 (1D) Handheld Barcode Scanner

MECHANICAL

• Dimensions (LxWxH)- 169 mm x 63 mm x 51 mm (6.7 in x 2.5 in 2.0 in)
• Weight- 100 g (3.5 oz)

ELECTRICAL

• Input Voltage- 5 VDC + 0.25 V
• Operating Power- 675 mW (125 mA @ 5 V)
• Host System Interfaces- USB, RS232, Keyboard Wedge, IBM 468xx (RS485)

SCAN PERFORMANCE

• Scan Pattern-Single scan line
• Scan Speed-72 scan lines per second
• Scan Angle-Horizontal: 50°
• Symbol Contrast- 35% minimum reflectance difference
• Pitch, Skew- 68°, 52°
• Decode Capability-Reads standard 1D and GS1 DataBar symbologies

02 Years Warranty
