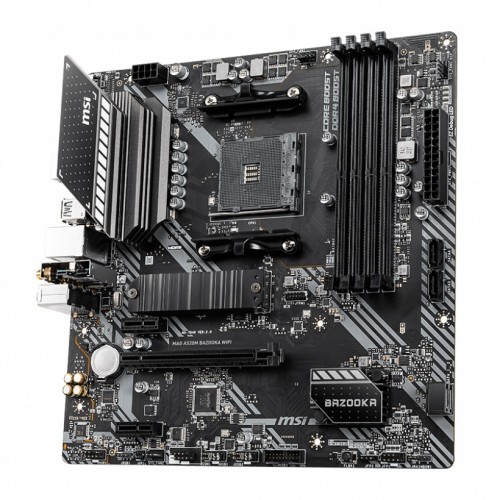

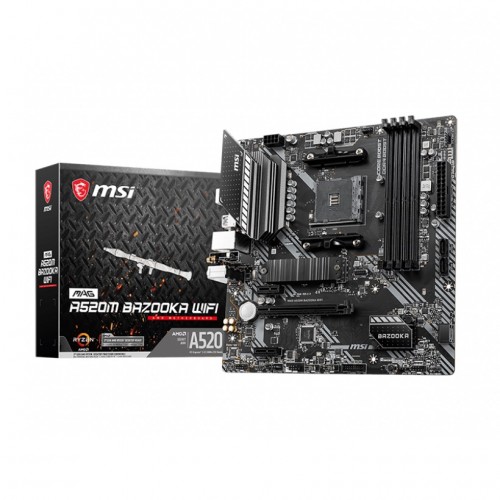

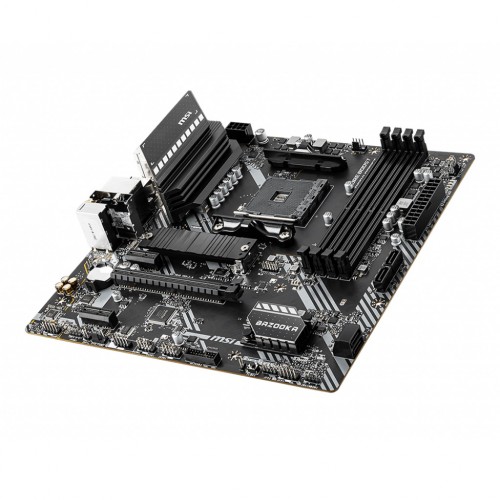

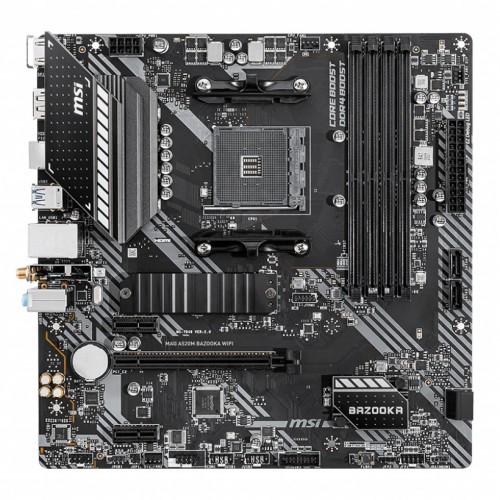

MSI MAG A520M BAZOOKA Wi-Fi AMD AM4 Micro-ATX Motherboard

Basic Features

Model: MAG A520M BAZOOKA Wi-Fi
Supports Ryzen 5000 & 3000 Series and Ryzen 4000 G-Series processors
Supports DDR4, up to 4400(OC) MHz
Extended Heatsink Design & Turbo M.2
2oz Thickened Copper PCB

৳ 0.00

Out of stock

SKU: 23703 Category: Motherboard Tags: Motherboard, MSI, MSI (AMD)

Description

Specification

Basic Information
Supported CPU	AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors
Chipset	AMD A520 Chipset
Form Factor	M-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	1x PCIe 3.0 x16 slot?PCI_E2? 2x PCIe 3.0 x1 slots
M.2 Socket	1x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Memory
Type	Dual-channel memory architecture
Slots	4 x DDR4 memory slots
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3866 MHz 2DPC 1R max speed 4000 MHz 2DPC 2R max speed 3600 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Maximum Memory	128GB
Graphics
Graphics	1x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @60Hz Support for HDMI 1.4 version, HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz
Max Shared Memory	16GB

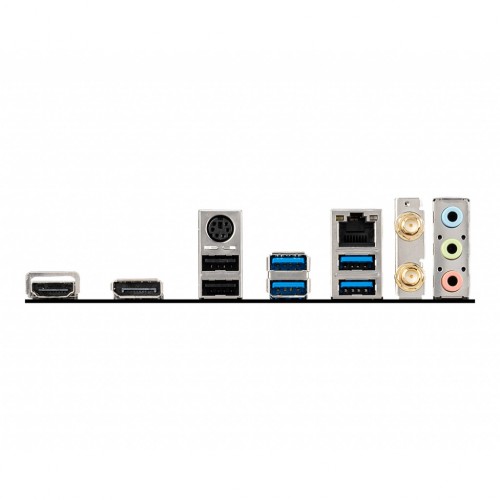

Connector & Ports
HDMI	1x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @60Hz
Display Port (s)	1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz
USB (s)	AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)	1x Realtek RTL8111H LAN controller
Wireless Communication module	Intel Dual Band Wireless-AC 3168 Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2
Supported Storage	AMD A520 Chipset: 4x SATA 6Gb/s ports 1x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 2x 4-pin system fan connector 1x Flash BIOS button 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x Clear CMOS jumper
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 Years Warranty
