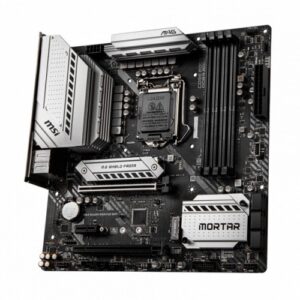

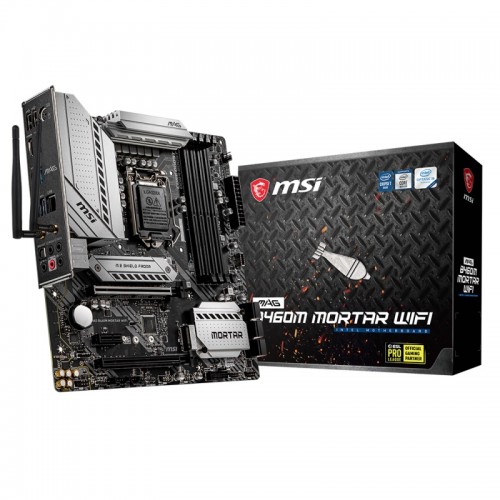

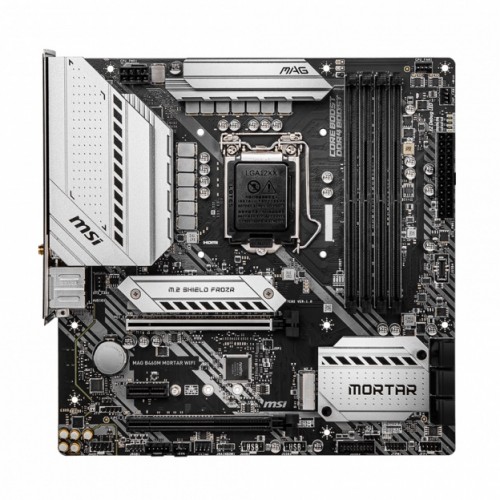

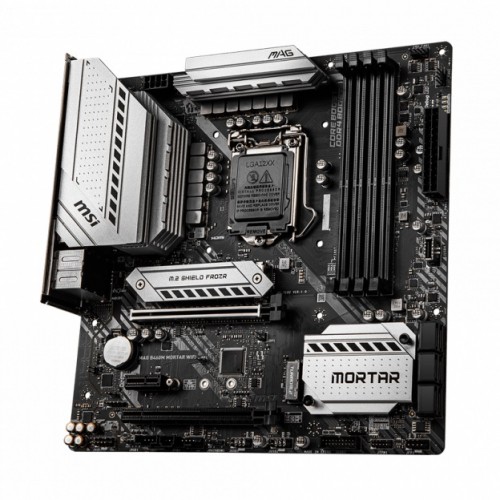

MSI MAG B460M Mortar Wi-Fi Intel 10th Gen Micro-ATX Motherboard

Basic Features

Model: MSI MAG B460M Mortar Wi-Fi
Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors
Intel Wi-Fi 6 AX Solution
Enhanced Power Design
Premium Thermal Solution

৳ 13,500.00

Out of stock

SKU: 23687 Category: Motherboard Tags: Motherboard, MSI (Intel).MSI

Description

Specification

Basic Information
Supported CPU	Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket
Chipset	Intel B460 Chipset
BIOS	1x 128 Mb flash UEFI AMI BIOS ACPI 6.2, SM BIOS 3.2 ?Multi-language
Form Factor	mATX Form Factor 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
Expansion Slots
PCI	1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from PCH, supports x4 mode) 1x PCIe 3.0 x1 slot (from PCH)
M.2 Socket	2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Memory
Type	Dual Channel Memory Architecture
Slots	4x DDR4 memory slots
Supported Memory	Intel Core i7/ i9 Support DDR4-2933 Memory (Max.) Intel Core i5 Supports DDR4-2666 Memory (Max.) Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	128GB
Graphics
Graphics	1x HDMI port, supports a maximum resolution of 4096×2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
Connector & Ports
HDMI	1x HDMI port, supports a maximum resolution of 4096×2160 @ 30Hz
Display Port (s)	1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz

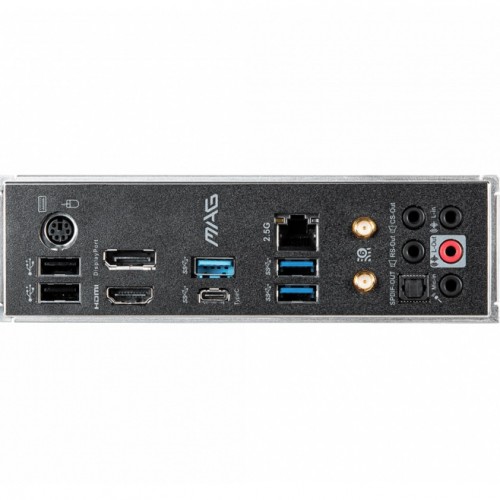

USB (s)	Intel B460 Chipset 2x USB 3.2 Gen 1 5Gbps Type-C ports (1 port on the back panel, 1 port through the internal USB connector) 5x USB 3.2 Gen 1 5Gbps Type-A ports (3 ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
LAN Port (s)	1x Realtek RTL8125B 2.5G LAN Controller WIFI & BLUETOOTH: Intel AX200 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified Supports Bluetooth 5.1 , FIPS, FISMA The Wireless module is pre-install in the M2 (Key-E) slot
Supported Storage	Intel® B460 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready for the M2_2 slot only Supports Intel Smart Response Technology for Intel Core processors
Audio	Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 3.2 Gen 1 5Gbps Type-C connector 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 2x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TBT connector 1x RTD3 connector
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 Years
