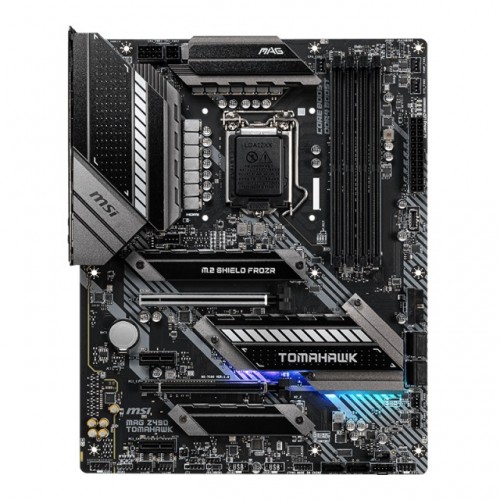

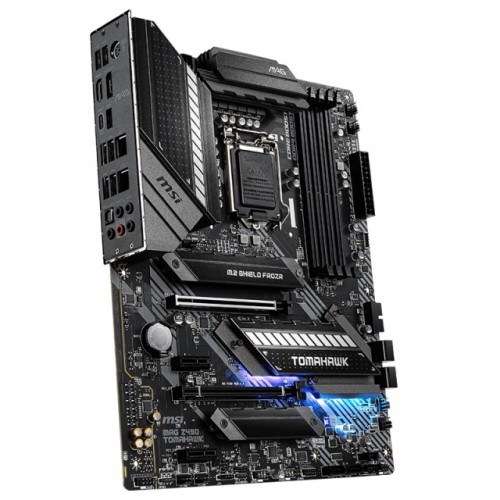

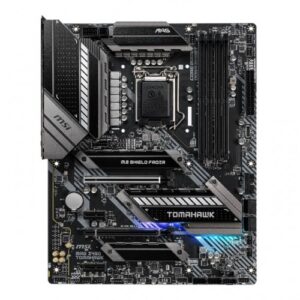

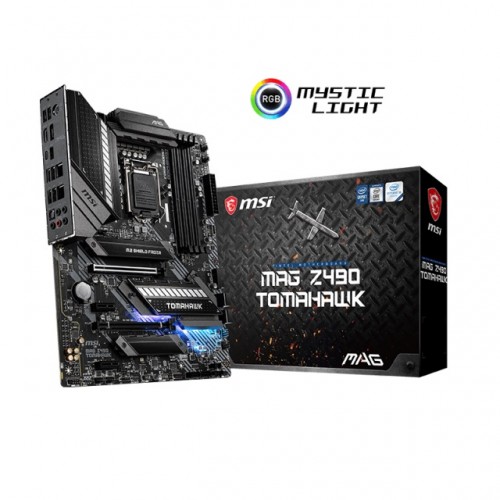

MSI MAG Z490 Tomahawk 10th Gen ATX Motherboard

Basic Features

Model: MSI MAG Z490 Tomahawk
Supports 10th Gen Intel Core Processors for LGA 1200 socket
Multi-GPU, Audio Boost
Premium Thermal Solution
2.5G LAN, Lightning USB 20G

৳ 19,200.00

Out of stock

SKU: 23663 Category: Motherboard Tags: Motherboard, MSI (Intel).MSI

Description

Specification

Basic Information
Supported CPU	Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket
Chipset	Intel Z490 Chipset
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Expansion Slots
PCI	1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from PCH? supports x4 mode) 2x PCIe x1 slots (from PCH)
M.2 Socket	M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Memory
Type	Dual channel memory architecture
Slots	4 x DDR4 memory slots
Supported Memory	Supports 1R 2133/2666/2933 MHz 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4266+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP
Maximum Memory	128GB
Graphics
Graphics	1x HDMI port, supports a maximum resolution of 4096×2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz Supports 2-Way AMD CrossFire Technology

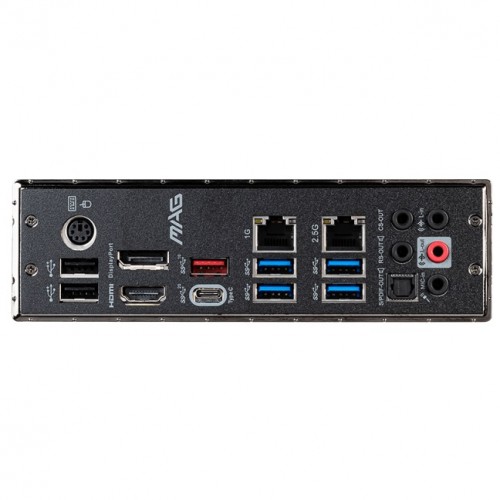

Connector & Ports
HDMI	1 x HDMI port (4096×2160 @30Hz)
Display Port (s)	1 x DisplayPort port (4096×2304 @60Hz)
USB (s)	Intel Z490 Chipset 1x USB 3.2 Gen 2 10Gbps Type-A port on the back panel 7x USB 3.2 Gen 1 5Gbps (4 Type-A ports on the back panel, 2 ports through the internal USB connector, 1 Type-C internal connector) 2x USB 2.0 ports on the back panel 4x USB 2.0 ports available through the internal USB connectors, hub-GL850G ASMedia ASM3241 1x USB 3.2 Gen 2×2 20Gbps Type-C port on the back panel
LAN Port (s)	1x Realtek RTL8125B-CG 2.5G LAN Controller + 1x Intel I219V 1G LAN
Supported Storage	Intel Z490 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
Audio	Realtek ALC1200-VD1 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connectors (support additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 6x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 2x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x serial port connector 1x RTD3 connector 1x TBT connector
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 years
