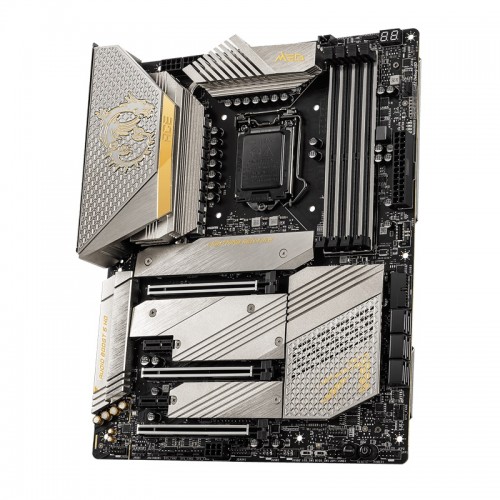

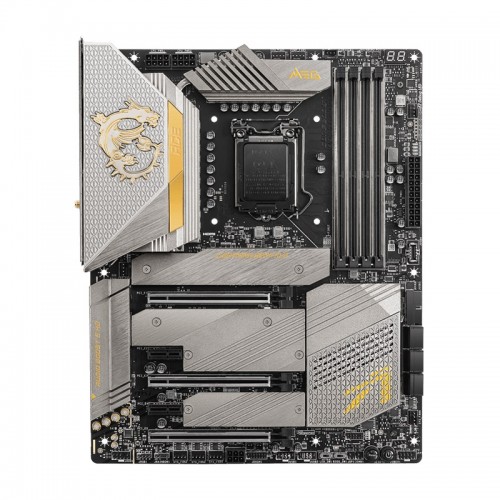

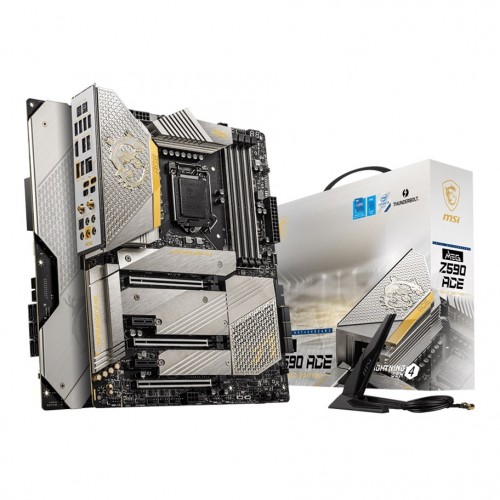

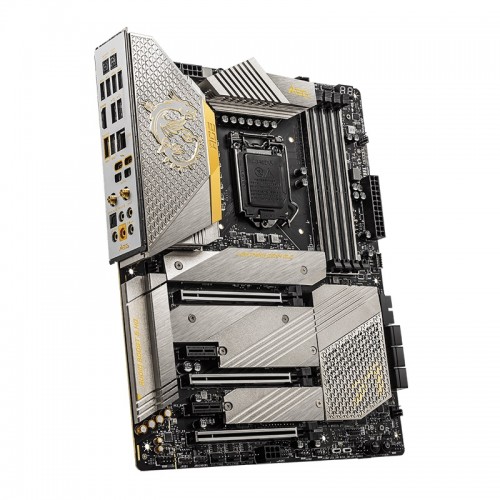

MSI MEG Z590 ACE GOLD EDITION 10th and 11th Gen ATX Motherboard

Basic Features

Model: MEG Z590 ACE GOLD EDITION
Supports 10th & 11th Gen Intel processors for LGA 1200 socket
Supports DDR4, up to 128GB, 5600(OC) MHz
Dual Thunderbolt 4 ports
Genuine 24K Gold

৳ 0.00

Out of stock

SKU: 23778 Category: Motherboard Tags: Motherboard, MSI (Intel).MSI

Description

Specification

Basic Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1200
Chipset	Intel Z590 Chipset
Form Factor	ATX Form Factor
Audio	7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI	3x PCIe x16 slots Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4 PCI_E1 & PCI_E3 slots (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU PCI_E5 slot (From Z590 chipset) Supports up to PCIe 3.0 2x PCIe 3.0 x1 slots (From Z590 chipset)
M.2 Socket	4x M.2 slots (Key M) M2_1 slot (from CPU) Available only on 11th Gen Intel CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2, M2_3, M2_4 slots (from Z590 chipset) M2_2 , M2_3 & M2_4 support up to PCIe 3.0 x4 M2_2 & M2_3 support up to SATA 6Gb/s M2_4 slot supports PCIe only. Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready
Memory
Type	DDR4
Slots	4x DDR4 memory slots
Supported Memory	Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	Support up to 128GB
Graphics
Graphics	Supports 2-Way NVIDIA SLI Technology Supports 3-Way AMD CrossFire Technology 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Connector & Ports
HDMI	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

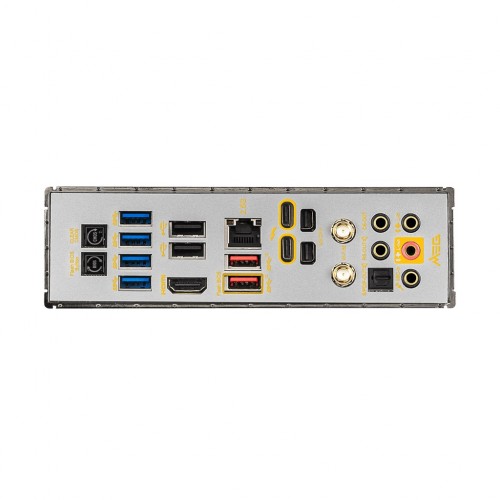

USB (s)	USB: Intel Z590 Chipset 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel, 2 ports available through internal USB connector) 2x USB 2.0 Type-A ports on the back panel Hub-GL850G 4x USB 2.0 ports through internal USB connectors THUNDERBOLT 4: Intel JHL8540 Thunderbolt 4 Controller 2x Thunderbolt 4 (USB-C) ports on the back panel Support up to 40Gbps transfer rate with Thunderbolt devices Support up to 20Gbps transfer rate with USB4 devices Support up to 10Gbps transfer rate with USB 3.2 devices Support up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel)
LAN Port (s)	1x Intel I225V 2.5Gbps LAN controller
Wireless Communication module	Intel Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA
Supported Storage	6x SATA 6Gb/s ports (from Z590 chipset) 4x M.2 slots (Key M) M2_1 slot (from CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2, M2_3, M2_4 slots (from Z590 chipset) M2_2 , M2_3 & M2_4 support up to PCIe 3.0 x4 M2_2 & M2_3 support up to SATA 6Gb/s M2_4 slot supports PCIe only. Supports 2242/ 2260/ 2280 storage devices Intel® Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Tuning Controller connector
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 years warranty
