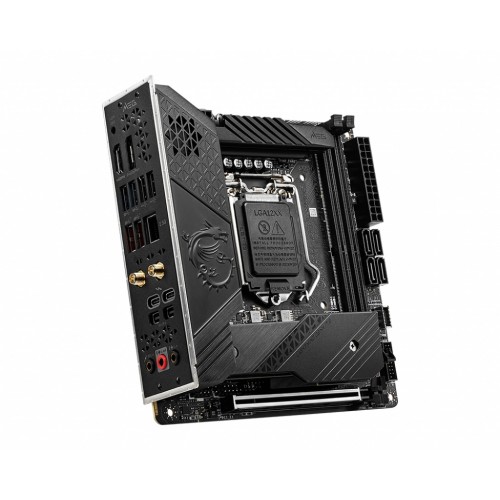

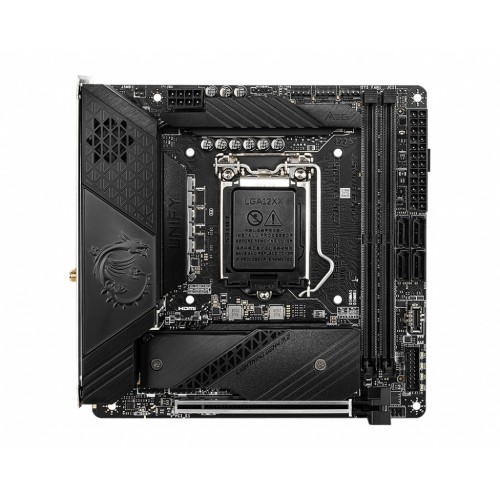

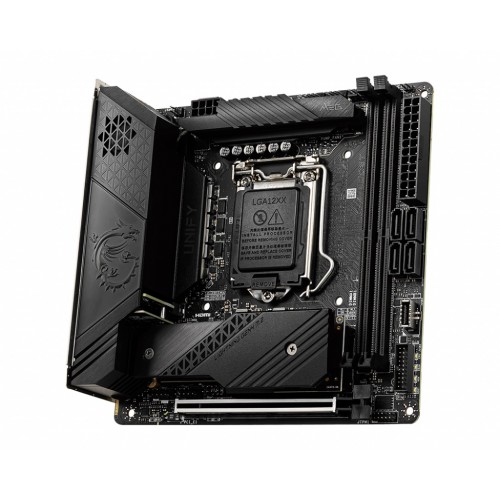

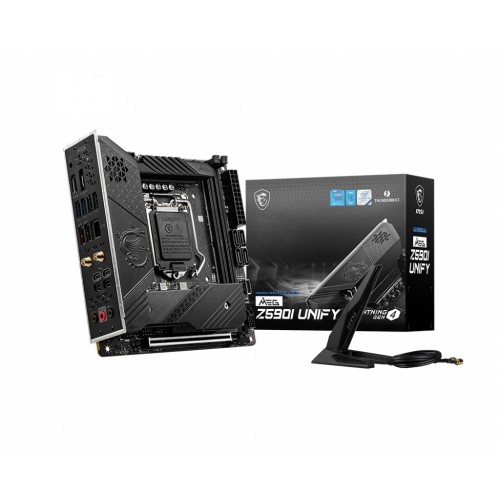

MSI MEG Z590I Unify Gaming 10th Gen and 11th Gen Mini-ITX Motherboard

Basic Features

Model: MEG Z590I Unify Gaming
Supports 11th and 10th Gen Intel Core, Pentium Celeron processors
DDR4 Memory, up to 5600(OC) MHz
Dual Thunderbolt 4 ports, LGA1200 socket
2.5G LAN with latest Wi-Fi 6E

৳ 0.00

Out of stock

SKU: 23699 Category: Motherboard Tags: Motherboard, MSI (Intel).MSI

Description

Specification

Basic Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron processors Processor socket LGA1200
Chipset	Intel Z590 Chipset
Form Factor	Mini-ITX Form Factor
Audio	7.1-Channel High Definition Audio
Expansion Slots
PCI	1x PCIe x16 slot Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 11th Gen Intel CPU
M.2 Socket	2x M.2 slots (Key M)
Memory
Type	DDR4
Slots	2x DDR4 memory slots
Supported Memory	Supports 1R 2133/2666/2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile [XMP]
Maximum Memory	support up to 64GB
Graphics
Graphics	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Connector & Ports
USB (s)	3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors) 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
LAN Port (s)	1x Inte I225-V 2.5Gbps LAN controller
Supported Storage	4x SATA 6Gb/s ports (from Z590 chipset) 2x M.2 slots (Key M) M2_1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From Z590 chipset) Supports 2280 storage devices M2_2 slot (from Z590 chipset) Supports PCIe 3.0 x4 only Supports 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots [M-Key] 1x USB 3.2 Gen2 10Gbps Type-C port 1x USB 3.2 Gen1 5Gbps connector [supports additional 2 USB 3.2 Gen1 5Gbps ports] 1x USB 2.0 connector [supports additional 2 USB 2.0 ports] 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector
TPM (Trusted Platform Module )	1xTPM module connector
Warranty Information
Manufacturing Warranty	03 years warranty
