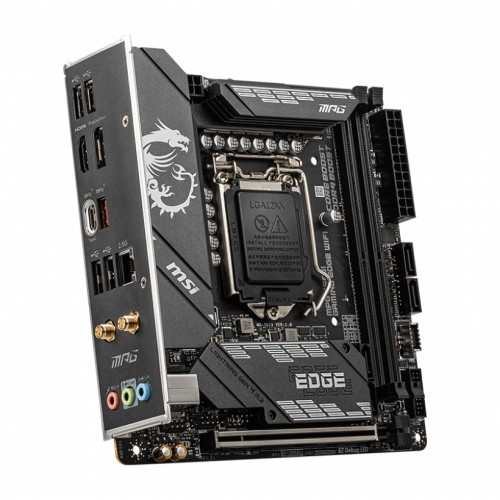

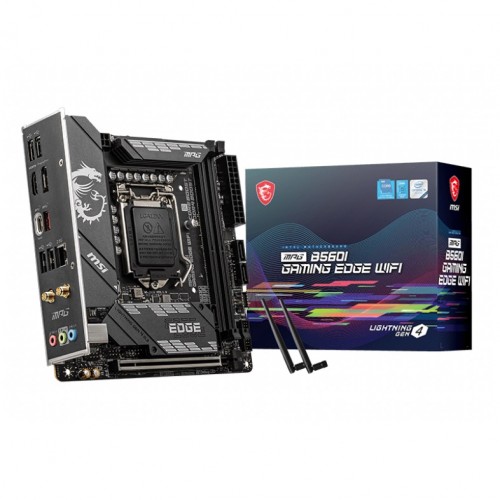

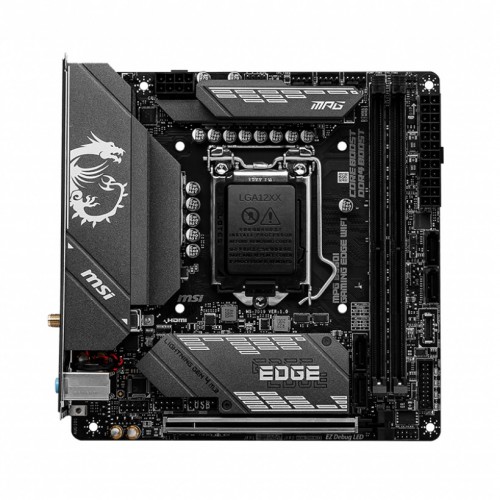

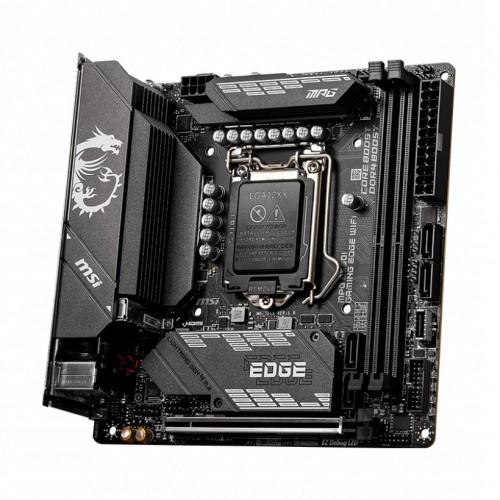

MSI MPG B560I GAMING EDGE WIFI 10th and 11th Gen Mini-ITX Motherboard

Basic Features

Model: MPG B560I GAMING EDGE WIFI
Supports 11th & 10th Gen processors for LGA 1200 socket
Supports DDR4 up to 5200(OC) MHz
6+2+1 direct power design
2.5G LAN and Intel Wi-Fi 6E

৳ 0.00

Out of stock

SKU: 23779 Category: Motherboard Tags: Motherboard, MSI (Intel).MSI

Description

Specification

Basic Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors
Chipset	Intel B560 Chipset
Form Factor	Mini-ITX Form Factor 6.7 in. x 6.7 in. [17.0 cm x 17.0 cm]
Audio	1x Front panel audio connector
Expansion Slots
PCI	1x PCIe x16 slot Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU
M.2 Socket	2x M.2 slots [from B560 chipset] 2x M.2 slots [Key M] M2 1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU [From CPU] Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU [From B560 chipset] Supports 2280 storage devices M2 2 slot [from B560 chipset] Supports PCIe 3.0 x4 only Supports 2280 storage devices Intel Optane Memory Ready
Memory
Type	DDR4
Slots	2x DDR4 memory slots
Supported Memory	Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU [by JEDEC & POR]1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU [by JEDEC & POR]1 Max frequency: 1DPC 1R Max speed up to 5200 MHz 1DPC 2R Max speed up to 4700+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	Support up to 64GB
Graphics
Graphics	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 5120×3200 60Hz

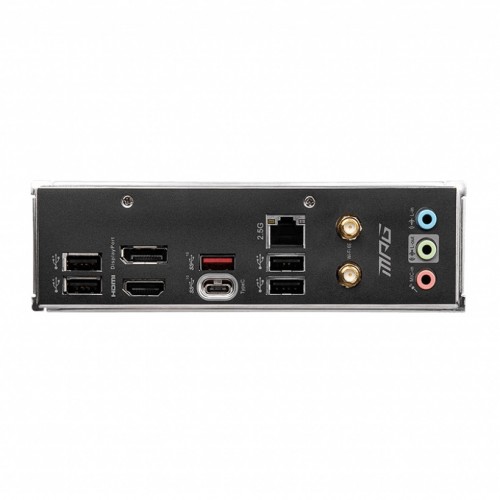

Connector & Ports
HDMI	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Display Port (s)	1x DisplayPort 1.4 port, supports a maximum resolution of 5120×3200 60Hz
USB (s)	Intel® B560 Chipset 2x USB 3.2 Gen 2 10Gbps ports [1 Type-C port and 1 Type-A port on the back panel] 3x USB 3.2 Gen 1 5Gbps ports [1 Type-C port and 2 Type-A ports are available through the internal USB 3.2 Gen 1 5Gbps connectors] 6x USB 2.0 ports [4 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector]
LAN Port (s)	1x Realtek RTL8125B 2.5Gbps LAN controller
Wireless Communication module	Intel Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 [Key-E] slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* [160MHz] up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA
Supported Storage	4x SATA 6Gb/s ports [from B560 chipset] 2x M.2 slots [from B560 chipset] 2x M.2 slots [Key M] M2 1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU [From CPU] Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU [From B560 chipset] Supports 2280 storage devices M2 2 slot [from B560 chipset] Supports PCIe 3.0 x4 only Supports 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots [M-Key] 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector [supports additional 2 USB 3.2 Gen 1 5Gbps ports] 1x USB 2.0 connector [supports additional 2 USB 2.0 ports] 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 Years
