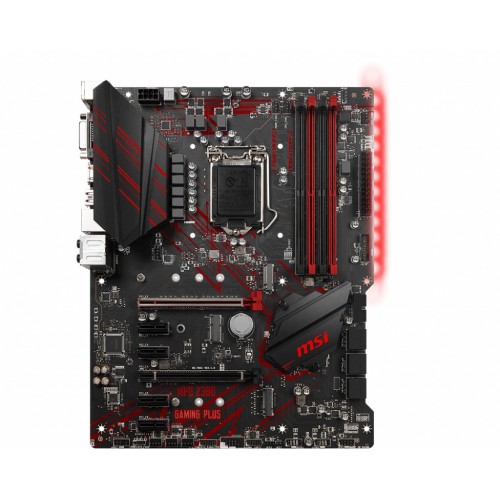

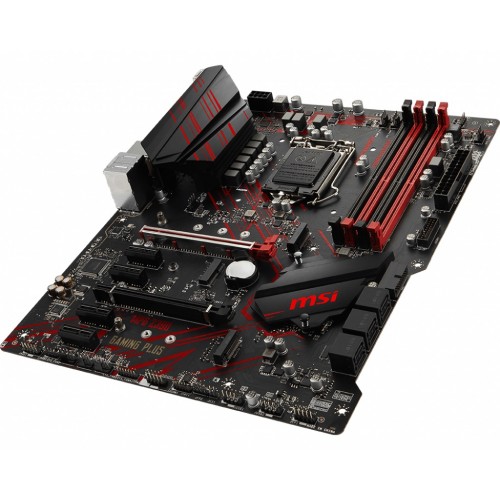

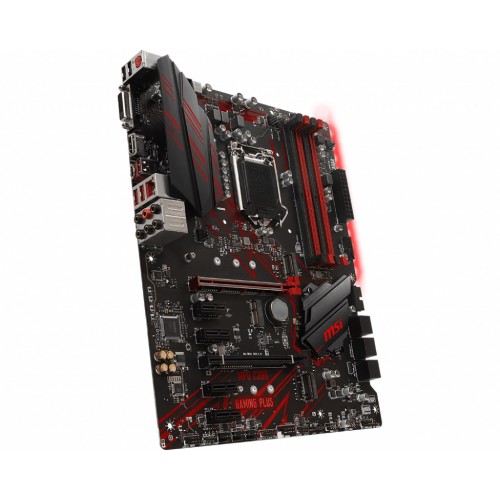

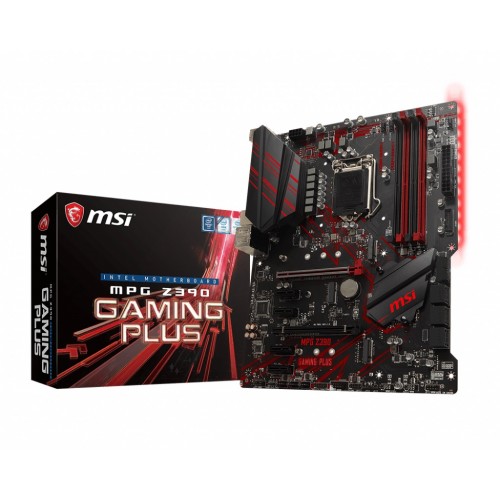

MSI MPG Z390 Gaming Plus 9th & 8th Gen DDR4 ATX Motherboard

Basic Features

Model: MSI MPG Z390 Gaming Plus
Supports 9th & 8th Gen Intel Processor LGA 1151 socket
Supports Intel CNVi Wi-Fi Module
Supports DDR4, up to 4400(OC)MHz
Twin Turbo M.2, Core & Game Boost

৳ 14,000.00

Out of stock

SKU: 23781 Category: Motherboard Tags: Motherboard, MSI (Intel).MSI

Description

Specification

Basic Information
Supported CPU	– Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket – CPU (MAX SUPPORT): i9 – SOCKET: LGA 1151 socket
Chipset	Intel Z390 Chipset
BIOS	Before using Intel Optane memory modules, please ensure that updated the drivers and BIOS to the latest version from MSI website.
Form Factor	ATX Form Factor
Audio	7.1-Channel High Definition Audio
Expansion Slots
PCI	– 2 x PCIe 3.0 x16 slots(support x16/x4 mode) – 4 x PCIe 3.0 x1 slots
M.2 Socket	-1 x M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only – 2 x M.2 slot (Key M) – 3x M.2 slots (2 M-Key slots,1 E-Key slot
Memory
Type	DDR4
Slots	4 x DDR4 memory slots
Supported Memory	4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
Maximum Memory	support up to 128GB
Graphics
Graphics	– 1 x HDMI port, supports a maximum resolution of 4096×2160@24Hz – 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz – 2 x PCIe 3.0 x 16 slots *No Display support when using the Processor model with suffix F
Max Shared Memory	MAX MEMORY (GB): 128GB

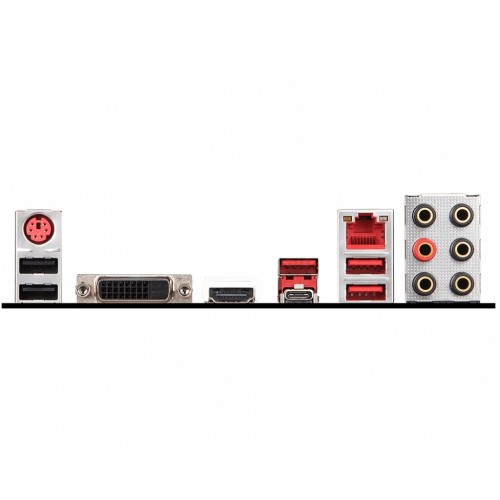

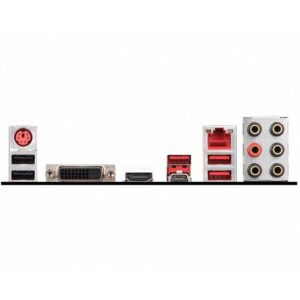

Connector & Ports
HDMI	– 1 x HDMI port, supports a maximum resolution of 4096×2160@24Hz
DVI-D (s)	1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
USB (s)	– 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1x Type-A port and 1x Type-C port) on the back panel – 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.1 connectors) – 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
LAN Port (s)	– 1 x Intel I219-V Gigabit LAN controller
Supported Storage	– 6 x SATA 6Gb/s ports – 2 x M.2 slot (Key M) – M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices – M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices – Intel Optane Memory Ready2
Audio	7.1-Channel High Definition Audio
Internal I/O Ports	Expansion Slots: 2 x PCIe 3.0 x16 4 x PCIe 3.0 x1 USB: 2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports) 2 x USB 2.0 Header (Supports 4 USB Type-A Ports) Multi-GPU Support: 2-Way AMD CrossFireX Air Cooling: 1 x 4-Pin CPU 5 x 4-Pin System Liquid Cooling: 1 x 4-Pin Pump Power Connectors: 1 x 24-Pin Mainboard 1 x 8-Pin CPU Security: Chassis Intrusion, TPM Module LED Header: 2 x RGB Diagnostics: Clear CMOS Legacy: 1 x Serial 1 x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 3x M.2 slots (2 M-Key slots,1 E-Key slot) 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin Water Pump connector 5x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 1x Serial Port connector 1x Clear CMOS jumper
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 years warranty
Others
Bundled Software	Support for Windows 10 64-bit
