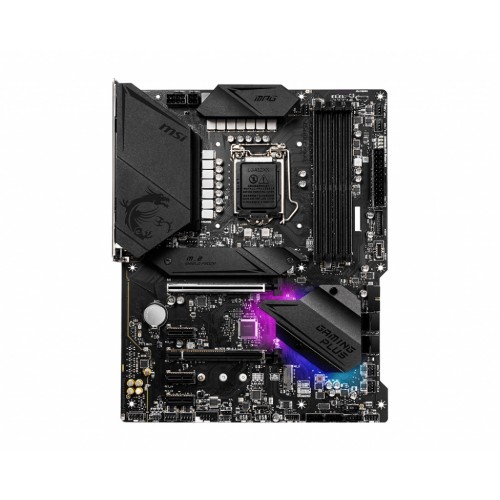

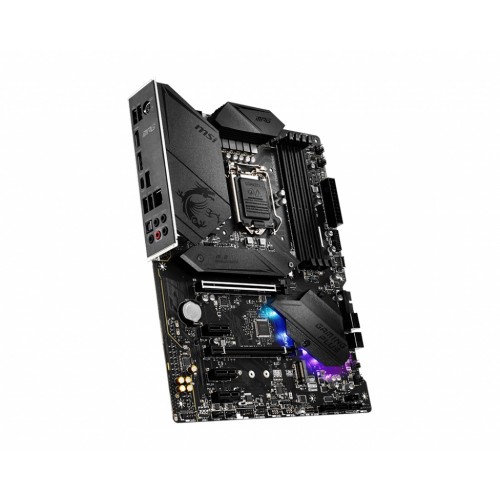

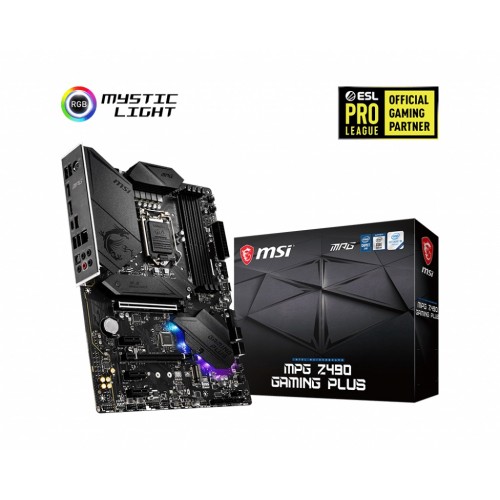

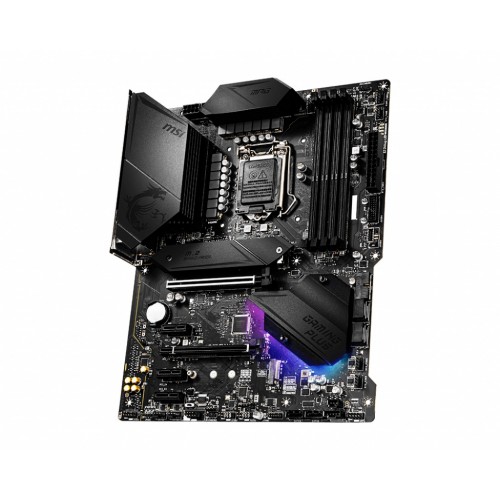

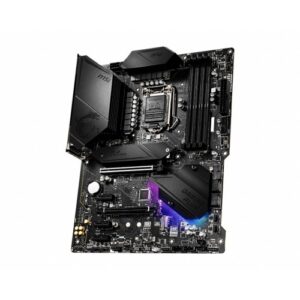

MSI MPG Z490 Gaming Plus ATX Motherboard

Basic Features

Model: MPG Z490 Gaming Plus
Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
Supports DDR4 Memory, up to 4800(OC) MHz
Support Lightning Gen 4 Solution
Enhanced Power Design, Premium Thermal Solution

৳ 16,500.00

Out of stock

SKU: 23674 Category: Motherboard Tags: Motherboard, MSI (Intel).MSI

Description

Specification

Basic Information
Supported CPU	Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket CPU (MAX SUPPORT): i9 SOCKET: 1200
Chipset	Intel Z490 Chipset
Form Factor	ATX Form Factor
Audio	7.1-Channel High Definition Audio 1x front panel audio connector HD Audio Connectors
Expansion Slots
PCI	1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from PCH? supports x4 mode) 3x PCIe x1 slots (from PCH)
M.2 Socket	2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Memory
Type	DDR4
Slots	4 x DDR4 memory slots
Supported Memory	Supports 1R 2133/2666/2933 MHz : 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4266+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	4 x DDR4 memory slots, support up to 128GB
Graphics
Graphics	1x HDMI port, supports a maximum resolution of 4096×2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz

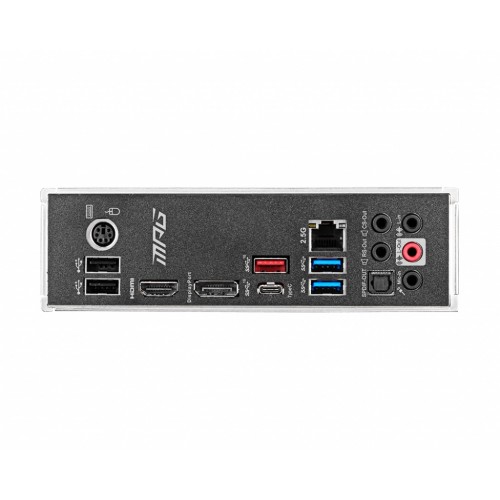

Connector & Ports
HDMI	1x HDMI port, supports a maximum resolution of 4096×2160 @ 30Hz
Display Port (s)	1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
USB (s)	2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel) 7x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
LAN Port (s)	1x Realtek RTL8125B-CG 2.5G LAN Controller
Audio	7.1-Channel High Definition Audio Supports S/PDIF output
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 6x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x serial port connector 1x TBT connector
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 years warranty
