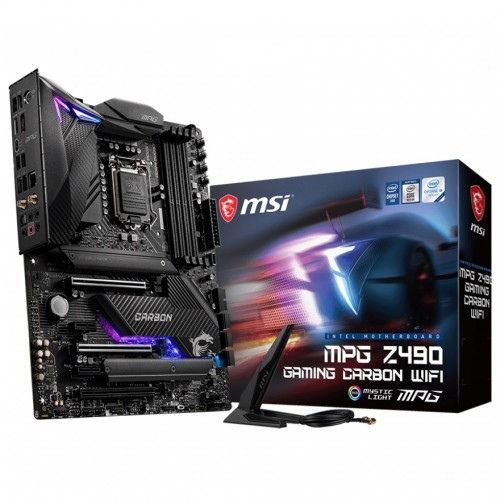

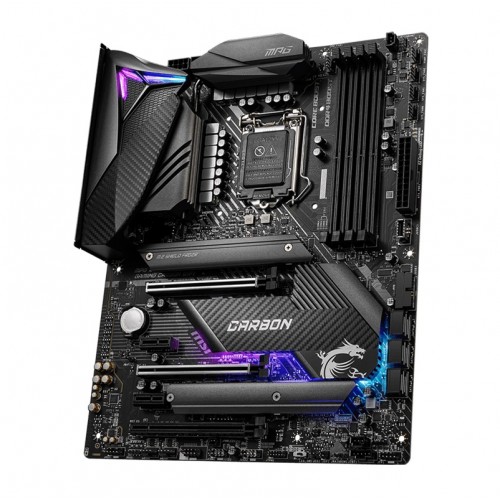

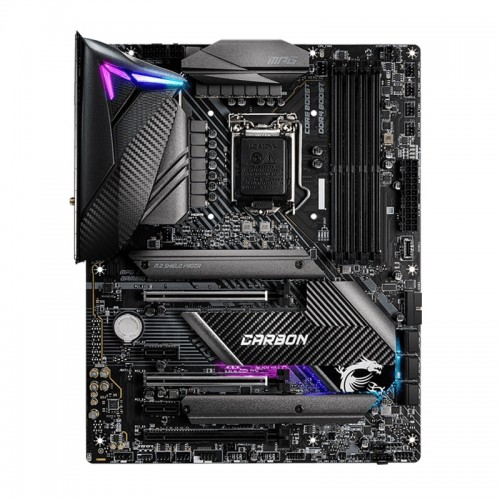

MSI Z490 Gaming Carbon Wi-Fi 10/11th Gen Intel ATX Motherboard

Basic Features

Model: MSI Z490 Gaming Carbon Wi-Fi
Supports 10th/11 Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
Supports DDR4 Memory, up to 5000(OC) MHz
Lightning USB 20G Powered by ASmedia 3241
2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution

৳ 18,000.00

Out of stock

SKU: 9197 Category: Motherboard Tags: Motherboard, MSI (Intel).MSI

Description

Specification

Basic Information
Supported CPU	Supports 10th /11 Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket
Chipset	Intel Z490 Chipset
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Expansion Slots
PCI	3x PCIe 3.0 x16 slots, support x16/ x0/ x4 or x8/ x8/ x4 mode 2x PCIe 3.0 x1 slots
M.2 Socket	2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Memory
Type	Dual-Channel mode
Slots	4x DDR4 memory slots
Supported Memory	Supports 1R 2133/2666/2933 MHz 1DPC 1R Max speed up to 5000+ MHz 1DPC 2R Max speed up to 4500+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	support up to 128GB
Graphics
Graphics	1x HDMI port, supports a maximum resolution of 4096×2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz MULTI-GPU Supports 2-Way NVIDIA SLI Technology Supports 3-Way AMD CrossFire Technology
Max Shared Memory	1GB

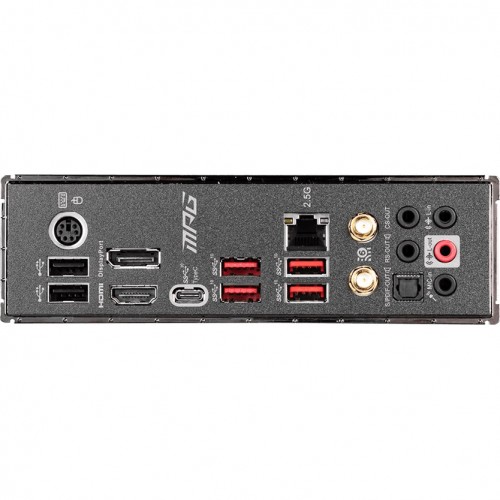

Connector & Ports
HDMI	1x HDMI port, supports a maximum resolution of 4096×2160 @ 30Hz
Display Port (s)	1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
USB (s)	Intel Z490 Chipset 5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C internal connector) 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)ASMedia ASM3241 Chipset 1x USB 3.2 Gen 2×2 20Gbps port on the back panel
LAN Port (s)	1x Realtek RTL8125B 2.5Gbps LAN controller
Supported Storage	Intel Z490 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Sma
Audio	Realtek ALC1220 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector 1x Serial port connector 1x RTD3 connector 1x Clear CMOS jumper 1x TBT connector
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 years warranty
Others
Special Features	WIFI & BLUETOOTH Intel AX201 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified Supports Bluetooth 5.1 , FIPS, FISMA The Wireless module is pre-install in the M2 (Key-E) slot
