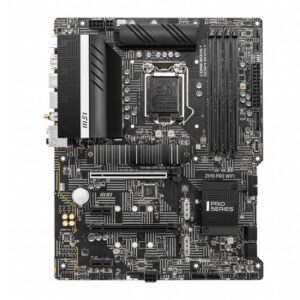

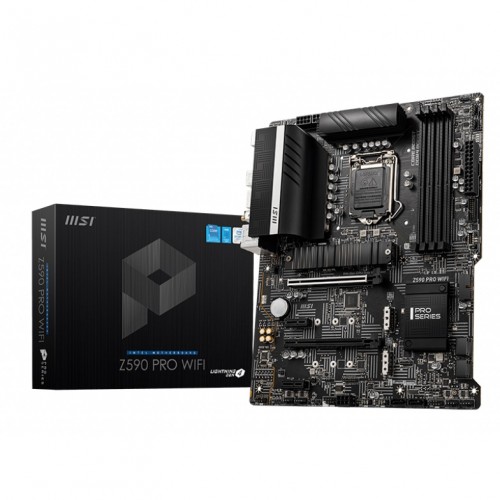

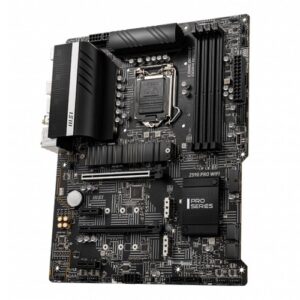

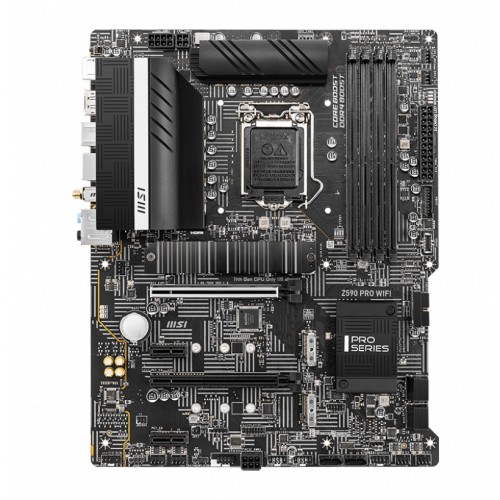

MSI Z590 Pro Wi-Fi Intel 11th Gen ATX Motherboard

Basic Features

Model: MSI Z590 Pro Wi-Fi
Supports 10th and 11th Gen Intel Processors
Lightning Fast Experience
Intel Turbo USB 3.2 Gen 2
Premium Thermal Solution

৳ 21,000.00

Out of stock

SKU: 8379 Category: Motherboard Tags: Motherboard, MSI (Intel).MSI

Description

Specification

Basic Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Chipset	Intel Z590 Chipset
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Expansion Slots
PCI	2x PCIe x16 slots Support x16/ x4 PCI_E1 (from CPU) Supports up to PCIe 4.0 for 11th Gen Intel CPU Supports up to PCIe 3.0 for 10th Gen Intel CPU PCI_E3 (from Z590 chipset) Supports up to PCIe 3.0 2x PCIe 3.0 x1 slots (from Z590 chipset)
M.2 Socket	3x M.2 slots (Key M) M2_1 slot (from CPU) 1 Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0×4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_21, M2_32 slots (from Z590 chipset) Support up to PCIe 3.0×4 Support up to SATA 6Gb/s Support 2242/ 2260/ 2280 storage devices Intel® Optane Memory Ready
Memory
Type	DDR4
Slots	4x memory slots
Supported Memory	Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	128GB
Graphics
Graphics	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Supports 2-Way AMD CrossFire Technology

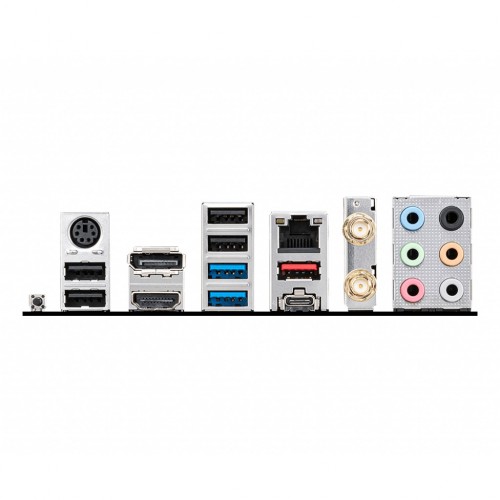

Connector & Ports
HDMI	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Display Port (s)	1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
USB (s)	Intel Z590 Chipset 1x USB 3.2 Gen 2×2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors) USB 2.0 Hubs GL850G 4x USB 2.0 Type-A ports on the back panel 4x USB 2.0 ports are available through the internal USB 2.0 connectors
LAN Port (s)	1x Intel I225-V 2.5Gbps LAN controller
Supported Storage	6x SATA 6Gb/s ports (from Z590 chipset) 3x M.2 slots (Key M) M2_1 slot (from CPU) Available only on 11th Gen Intel CPU Supports up to PCIe 4.0×4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2, M2_3 slots (from Z590 chipset) Support up to PCIe 3.0×4 Support up to SATA 6Gb/s Support 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Support Intel Smart Response Technology for Intel Core processors
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin ATX PCIe power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Serial port connector 1x Tuning controller connector 1x TBT connector (Supports RTD3)
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	3 Years
Others
Special Features	INTEL WI-FI 6E AX210: The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.22, FIPS, FISMA
