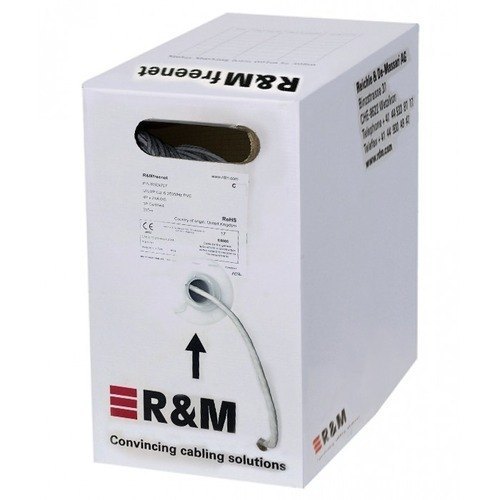

R&M Cat 6 U/UTP Cable Box (Yellow/ Blue)
Basic Features
- MPN: R795138YL
- Model: Cat 6 U/UTP
- Outer Jacket: FRPVC, Cable: 305M
- Cable length: 305 m / 1000 ft

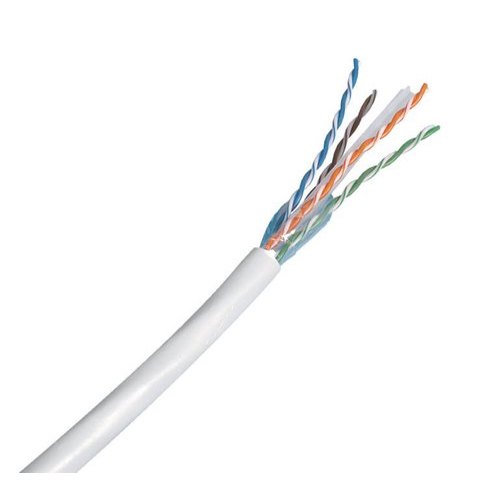

- Twisting 2 wires to the pair
- Cable lay up 4 pairs
৳ 0.00
Out of stock
Description
Specification
| Connection Class | ||
| Standard | ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1 | |
| Physical Specs | ||
| Color | Yellow Blue |
|
| Cable Details | ||
| Conductor | Bare solid copper | |
| Insulation | HDPE, overall Ø 0.92±0.02 mm | |
| Twisting | 2 wires to the pair | |
| Cable Lay-Up | 4 pairs to the core with cross separator | |
| Pair Screen | Non | |
| Overall Screen | Non | |
| Sheath | PVC, gray RAL 7035, Sheath Thickness: 0.50mm nominal | |
| Cable Information | ||
| Application | Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM | |
| Standards | ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1 | |
| Fire Rating | Flame retardant- PVC | |
| Technical Detail | ||
| Cable Designation | U/UTP Cat.6 250MHz | |
| Packaging | Drum 305 m | |
| Outer Diameter | 5.8±0.3mm | |
| Weight | 13.0kg nominal | |
| Pulling Pressure | 11Kg nominal | |
| Segregation Class | B | |
| Tensile Strength | > 16.5N/mm² | |
| Bending Radius | ? 25 mm during operation (without load) ? 50 mm during installation (with load) |
|
| Temperature ange | During operation: -20°C + 60°C During installation: 0°C + 50°C | |
