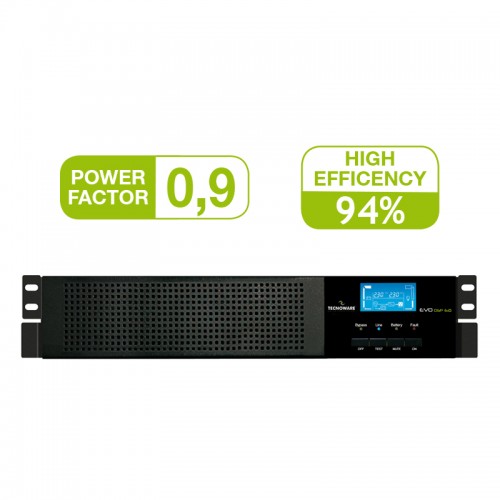

Tecnoware FGCEVDP6MMRM/00 6KVA EVO DSP MM Online UPS

Name: Tecnoware FGCEVDP6MMRM/00 6KVA EVO DSP MM Online UPS Lowest Price in BD
SKU: 13180
Availability: OutOfStock

৳ 0.00

Out of stock

SKU: 13180 Categories: Online UPS, UPS Tags: Online UPS, Tecnoware, UPS

Main Feature
Capacity	6 kVA
Load Capacity	Overload capability (Line mode): 110% for 10 minutes, 130% for 1 minute, >130% for 1 second Overload capability (Battery mode): 110% for 30 seconds, 130% for 10 seconds, >130% for 1 second Efficiency: 94%, calculated in double conversion mode at 100% load to 100% load according to standard 62040-3
Frequency (Battery Mode)	50/60HZ
Noise Level	< 48 dBA to 1 m
Battery	Type: Lead acid, sealed, maintenance free
Input Features
Frequency	50/60 Hz (selectable)
Power Factor	0.99
Voltage Range	Nominal voltage: 208Vac/220Vac/230Vac/240Vac Input voltage range: 176Vac-300Vac from 50% to 100% load, 110Vac-300Vac from to 50% load
Output Features
Voltage Range	Nominal voltage: 208Vac/220Vac/230Vac/240Vac Voltage Regulation (On-Line and Battery mode): ±1%
Power Factor	Nominal voltage: 208Vac/220Vac/230Vac/240Vac Voltage Regulation at %100 linear load (On-Line and Battery mode): ±1%
Type of Wave	Sinewave
Transfer Time	0 ms (On-Line)
Rated power	Voltage THD <3% (linear load), <6% (non-linear load)
Manufacture Warranty
Warranty	02 Years Warranty
