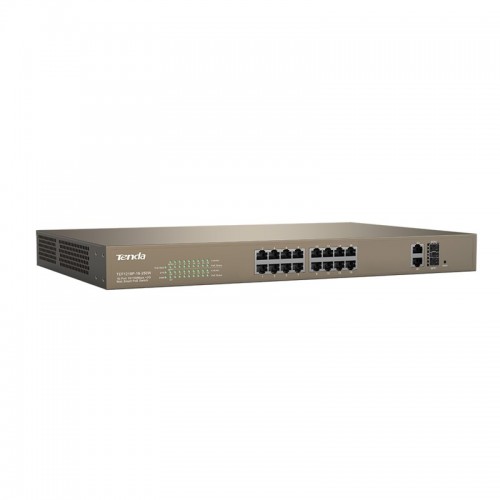

Tenda TEF1118P 16 10/100Mbps PoE +1 Gigabit/SFP Slots Switch

Basic Features

Model: Tenda TEF1118P
total power is 230W
6KV lightning protection
Lead security transmission
Up to 250 meters long transmission

৳ 10,500.00

Out of stock

SKU: 16736 Categories: Network Switch, Networking Tags: Network Switch, Networking, Tenda

Description

Specification

HARDWARE FEATURES
Dimensions (L x W x H )	294 x 178 x 44 mm ( W x D x H )
Interface	16 10/100Base-TX ports(Data/Power) 1 10/100/1000Base-T port(Data) 1 1000Base-X SFP port
LED	16Link/Act per device 1G1 Link/Act per device 1SFP Link/Act per device 1PoE-MAX per device 1*Power per device
Power Supply	PoE supply management: PoE supply management: Port 1 to Port 16 support IEEE802.3at/af POE standard Input Power: AC?100-240V? 50/60Hz Power Consumption: in full configuration?<150W PoE Max Power Supply?135W
Main Feature
Type	Switch
Port	16 10/100 Mbps Base-TX ports(Data/Power) 1 10/100/1000 Mbps Base-T port(Data) 1 1000 Mbps Base-X SFP port
Network Standard	IEEE 802.3? IEEE 802.3u?IEEE 802.3x?IEEE 802.3af
Access Method	1 10/100/1000 Mbps Base-T port(Data) 1 1000 Mbps Base-X SFP port
Advanced Functions	6KV Lightning Protection Store and forward:Yes CCTV? 1-8 ports support QoS?If multiple IP cameras are connected to the switch, you are recommended to enable this mode and connect the G1 or SFP1 port of this switch to the upstream device?like the monitoring computer. This ensures smoother monitoring video playback. Standard? The switchs functions are similar with a common unmanaged switchs and all the ports of the switch can communicate with each other. VLAN? In this mode, 1-16 ports of the switch cannot communicate with each other, but can communicate with the G1 and SFP1 ports. It can be used to isolate broadcast storms and DHCP broadcasts. Extend? In this mode, the data rate of 1-8 port is limited to 10 Mbps, whereas the maximum transmission distance of the port is increased to 250 meters. All the ports of the switch can communicate with each other.
Transmission Method	Wired
Data Transmission Rate	16 10/100 Mbps Base-TX ports(Data/Power) 1 10/100/1000 Mbps Base-T port(Data)
MAC Address Table	4K MAC
Environment	Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Manufacture Warranty
Warranty	1 Year
